FETs, MOSFETs
| 制造商 | Series | Package/Case | Packaging | Product Status | FET Type | Technology | Drain to Source Voltage (Vdss) | Current - Continuous Drain (Id) @ 25°C | Drive Voltage (Max Rds On, Min Rds On) | Rds On (Max) @ Id, Vgs | Vgs(th) (Max) @ Id | Gate Charge (Qg) (Max) @ Vgs | Vgs (Max) | Input Capacitance (Ciss) (Max) @ Vds | FET Feature | Power Dissipation (Max) | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
全部重置
应用所有
结果:
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | FET Type | Technology | Drain to Source Voltage (Vdss) | Current - Continuous Drain (Id) @ 25°C | Drive Voltage (Max Rds On, Min Rds On) | Rds On (Max) @ Id, Vgs | Vgs(th) (Max) @ Id | Gate Charge (Qg) (Max) @ Vgs | Vgs (Max) | Input Capacitance (Ciss) (Max) @ Vds | FET Feature | Power Dissipation (Max) | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
IXFV18N60PSMOSFET N-CH 600V 18A PLUS-220SMD IXYS |
2,169 | - |
|
Datasheet |
HiPerFET™, PolarHT™ | PLUS-220SMD | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 600 V | 18A (Tc) | 10V | 400mOhm @ 500mA, 10V | 5.5V @ 2.5mA | 50 nC @ 10 V | ±30V | 2500 pF @ 25 V | - | 360W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | PLUS-220SMD |
|

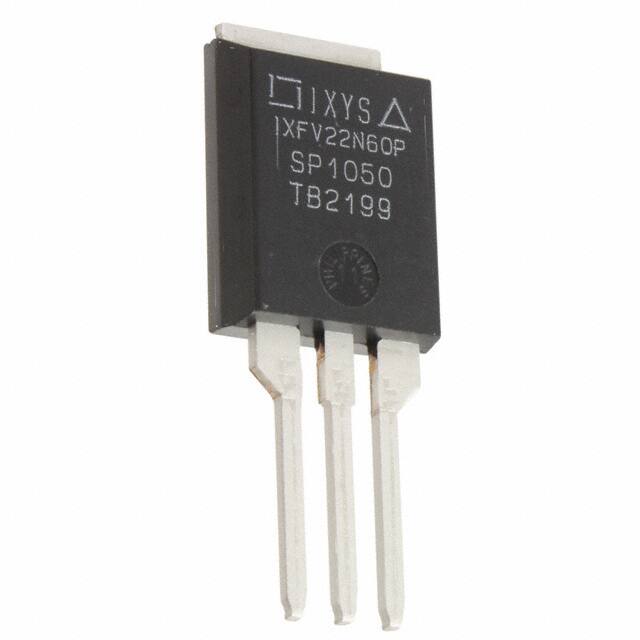

IXFV22N60PMOSFET N-CH 600V 22A PLUS220 IXYS |
4,221 | - |
|
Datasheet |
HiPerFET™, PolarHT™ | TO-220-3, Short Tab | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 600 V | 22A (Tc) | 10V | 350mOhm @ 11A, 10V | 5.5V @ 4mA | 58 nC @ 10 V | ±30V | 3600 pF @ 25 V | - | 400W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | PLUS220 |
|
IXFV22N60PSMOSFET N-CH 600V 22A PLUS-220SMD IXYS |
3,594 | - |
|
Datasheet |
HiPerFET™, PolarHT™ | PLUS-220SMD | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 600 V | 22A (Tc) | 10V | 350mOhm @ 11A, 10V | 5.5V @ 4mA | 58 nC @ 10 V | ±30V | 3600 pF @ 25 V | - | 400W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | PLUS-220SMD |
|

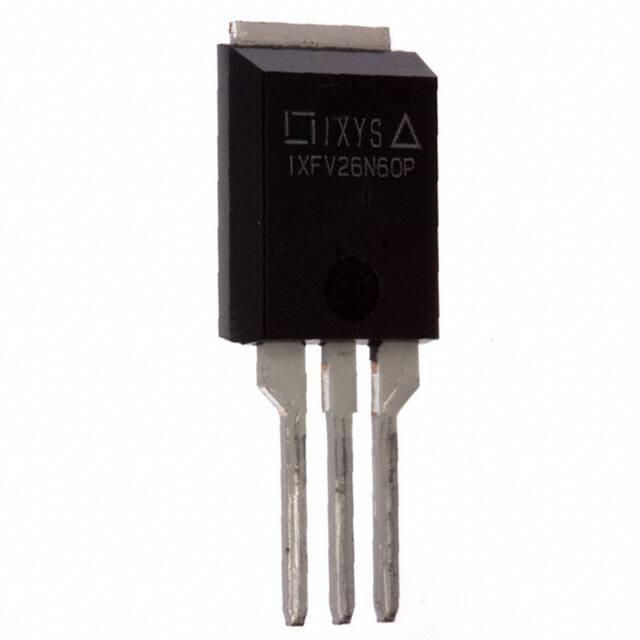

IXFV26N60PMOSFET N-CH 600V 26A PLUS220 IXYS |
3,307 | - |
|
Datasheet |
PolarHV™ | TO-220-3, Short Tab | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 600 V | 26A (Tc) | 10V | 270mOhm @ 500mA, 10V | 5V @ 4mA | 72 nC @ 10 V | ±30V | 4150 pF @ 25 V | - | 460W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | PLUS220 |
|

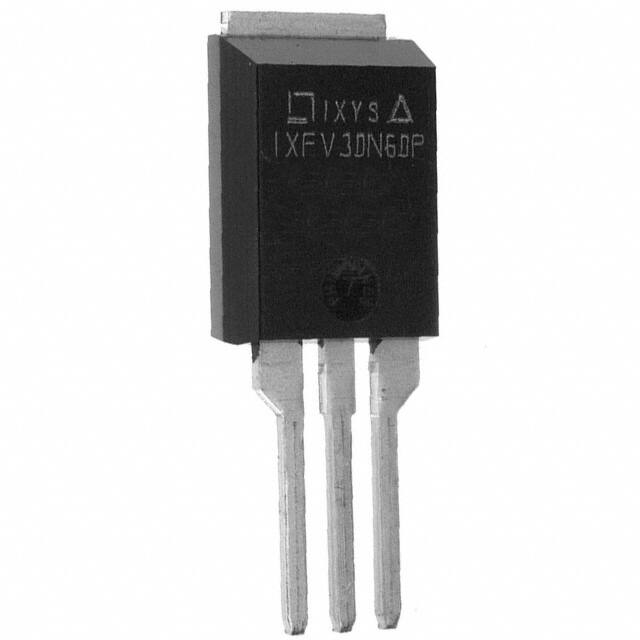

IXFV30N60PMOSFET N-CH 600V 30A PLUS220 IXYS |
3,753 | - |
|
Datasheet |
HiPerFET™, PolarHT™ | TO-220-3, Short Tab | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 600 V | 30A (Tc) | 10V | 240mOhm @ 15A, 10V | 5V @ 4mA | 82 nC @ 10 V | ±30V | 4000 pF @ 25 V | - | 500W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | PLUS220 |
|
|
IXFV30N60PSMOSFET N-CH 600V 30A PLUS-220SMD IXYS |
3,842 | - |
|
Datasheet |
HiPerFET™, PolarHT™ | PLUS-220SMD | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 600 V | 30A (Tc) | 10V | 240mOhm @ 15A, 10V | 5V @ 4mA | 82 nC @ 10 V | ±30V | 4000 pF @ 25 V | - | 500W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | PLUS-220SMD |
|
IXTA8N50PMOSFET N-CH 500V 8A TO263 IXYS |
3,797 | - |
|
Datasheet |
PolarHV™ | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 500 V | 8A (Tc) | 10V | 800mOhm @ 4A, 10V | 5.5V @ 100µA | 20 nC @ 10 V | ±30V | 1050 pF @ 25 V | - | 150W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | TO-263AA |
|

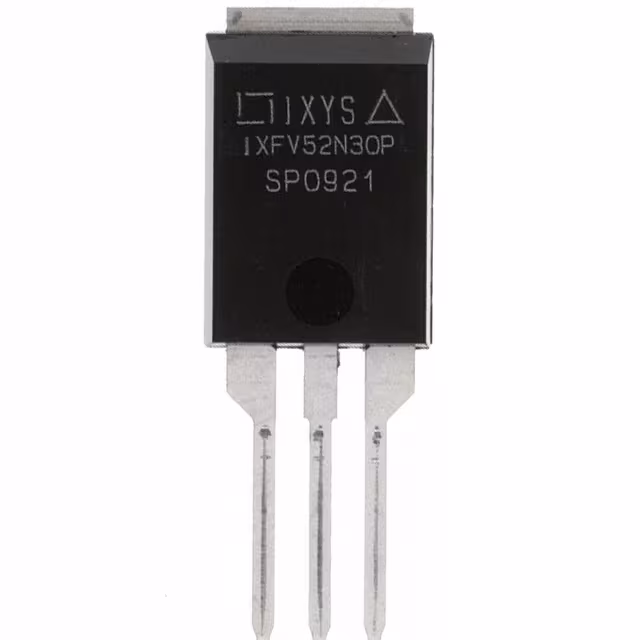

IXFV52N30PMOSFET N-CH 300V 52A PLUS220 IXYS |
4,788 | - |
|
Datasheet |
PolarHT™ HiPerFET™ | TO-220-3, Short Tab | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 300 V | 52A (Tc) | 10V | 66mOhm @ 500mA, 10V | 5V @ 4mA | 110 nC @ 10 V | ±20V | 3490 pF @ 25 V | - | 400W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | PLUS220 |
|
|
FDM21-05QCMOSFET N-CH 500V 21A I4PAC IXYS |
2,050 | - |
|
Datasheet |
- | i4-Pac™-5 | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 500 V | 21A (Tc) | 10V | 220mOhm @ 15A, 10V | 4.5V @ 250µA | 95 nC @ 10 V | ±20V | - | - | - | -55°C ~ 150°C (TJ) | - | - | Through Hole | ISOPLUS i4-PAC™ |
|
|
FMD21-05QCMOSFET N-CH 500V 21A I4PAC IXYS |
2,463 | - |
|
Datasheet |
- | i4-Pac™-5 | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 500 V | 21A (Tc) | 10V | 220mOhm @ 15A, 10V | 4.5V @ 250µA | 95 nC @ 10 V | ±20V | - | - | - | -55°C ~ 150°C (TJ) | - | - | Through Hole | ISOPLUS i4-PAC™ |
