Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Part Status | Type | Material - Core | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Supplier Device Package | Shielding | DC Resistance (DCR) | Inductance | Q @ Freq | Frequency - Self Resonant | Mounting Style | Ratings | Size / Dimension | Features | Operating Temperature | Inductance Frequency - Test | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MPXV1D1235L2R2FIXED IND 2.2UH 15.2A 8.4MOHM SM KEMET |
481 |
|
Datasheet |
METCOM MPXV | Nonstandard | Tape & Reel (TR) | Active | - | Metal Composite | ±20% | 15.2 A | 23A | - | Shielded | 8.4mOhm Max | 2.2 µH | - | 21MHz | Surface Mount | AEC-Q200 | 0.520" L x 0.492" W (13.20mm x 12.50mm) | - | -55°C ~ 155°C | 100 kHz | 0.138" (3.50mm) |
|
SBC8-102-761FIXED IND 1MH 760MA 780 MOHM TH KEMET |
1,124 |
|
Datasheet |
SBC | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | ±10% | 760 mA | 1.1A | - | Unshielded | 780mOhm Max | 1 mH | - | - | Through Hole | - | 0.591" Dia (15.00mm) | - | -20°C ~ 105°C | 10 kHz | 0.748" (19.00mm) |
|

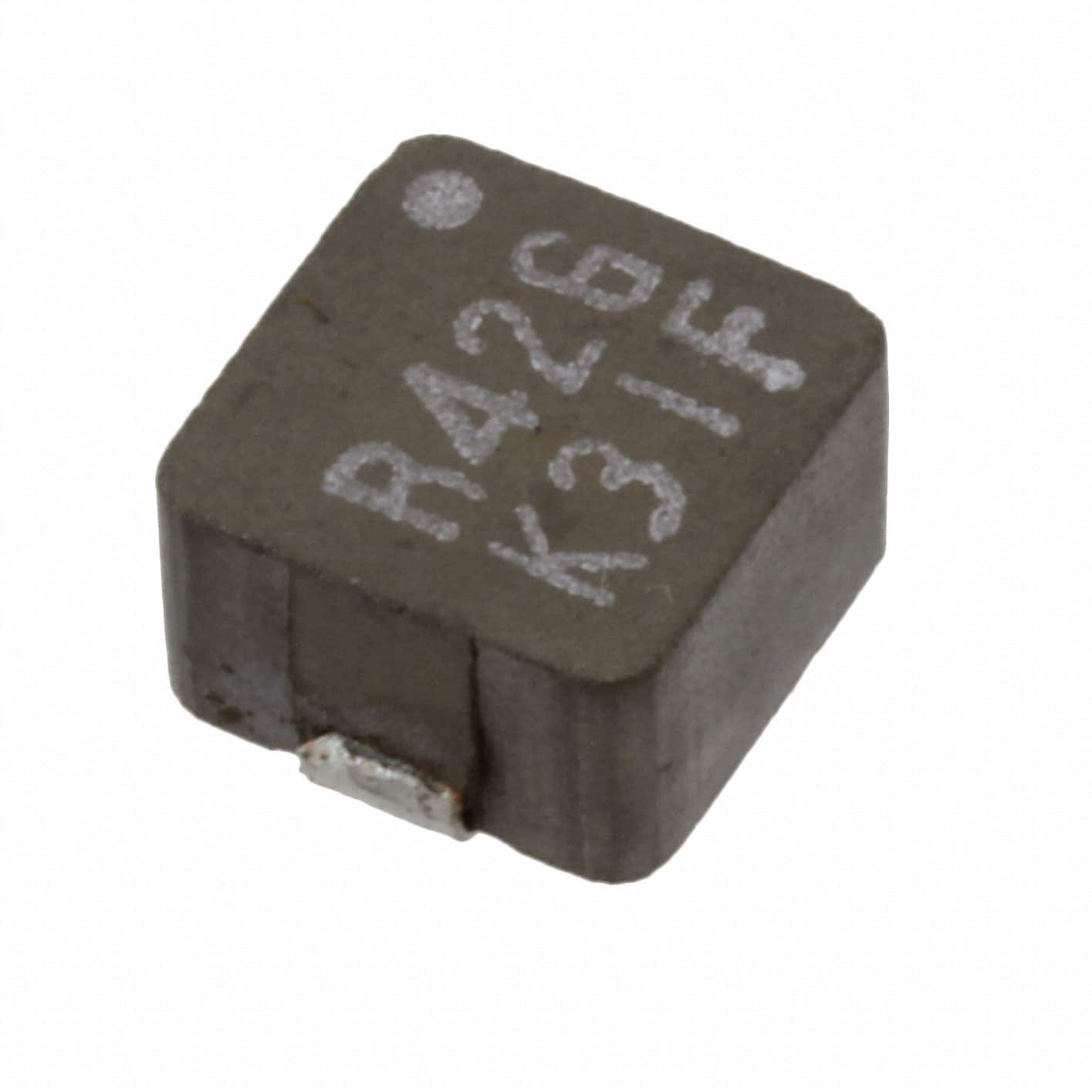

MPCG0740LR42FIXED IND 420NH 22A 1.55MOHM SMD KEMET |
2,000 |
|
Datasheet |
MPCG | Nonstandard | Tape & Reel (TR) | Active | - | Metal Composite | ±20% | 22 A | 20A | - | Shielded | 1.55mOhm Max | 420 nH | - | - | Surface Mount | - | 0.315" L x 0.264" W (8.00mm x 6.70mm) | - | -20°C ~ 120°C | 100 kHz | 0.157" (4.00mm) |
|

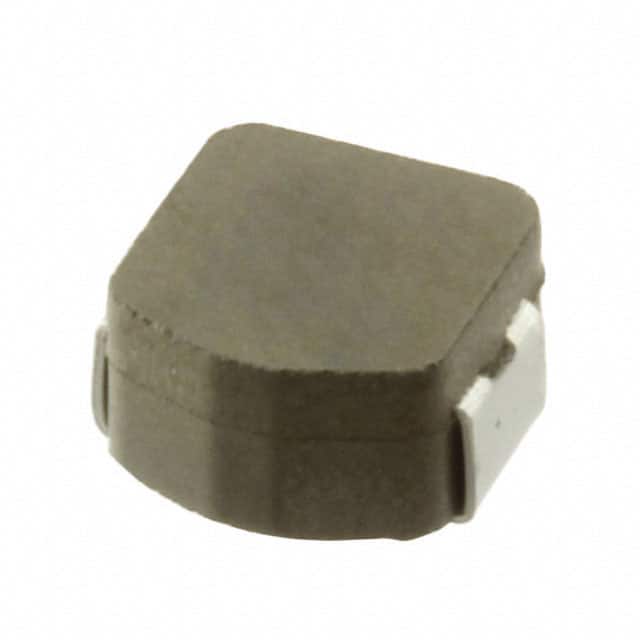

MPLCG0530LR22FIXED IND 220NH 14.1A 0.0037OHM KEMET |
5,732 |
|
Datasheet |
MPLCG | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | ±20% | 14.1 A | 10.2A | - | Shielded | 3.7mOhm Max | 220 nH | - | - | Surface Mount | - | 0.217" L x 0.197" W (5.50mm x 5.00mm) | Low DCR, Low Loss | -40°C ~ 125°C | 100 kHz | 0.118" (3.00mm) |
|
MPLCG0530LR33FIXED IND 330NH 10.3A 0.0073OHM KEMET |
1,445 |
|
Datasheet |
MPLCG | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | ±20% | 10.3 A | 8.9A | - | Shielded | 7.3mOhm Max | 330 nH | - | - | Surface Mount | - | 0.217" L x 0.197" W (5.50mm x 5.00mm) | Low DCR, Low Loss | -40°C ~ 125°C | 100 kHz | 0.118" (3.00mm) |
|
|
MPLCG0530LR47FIXED IND 470NH 9.5A 0.0084OHM KEMET |
641 |
|
Datasheet |
MPLCG | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | ±20% | 9.5 A | 8.9A | - | Shielded | 8.4mOhm Max | 470 nH | - | - | Surface Mount | - | 0.217" L x 0.197" W (5.50mm x 5.00mm) | Low DCR, Low Loss | -40°C ~ 125°C | 100 kHz | 0.118" (3.00mm) |
|
|
MPLCG0530L1R0FIXED IND 1UH 7.4A 0.0146OHM SMD KEMET |
4,918 |
|
Datasheet |
MPLCG | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | ±20% | 7.4 A | 5.6A | - | Shielded | 14.6mOhm Max | 1 µH | - | - | Surface Mount | - | 0.217" L x 0.197" W (5.50mm x 5.00mm) | Low DCR, Low Loss | -40°C ~ 125°C | 100 kHz | 0.118" (3.00mm) |
|

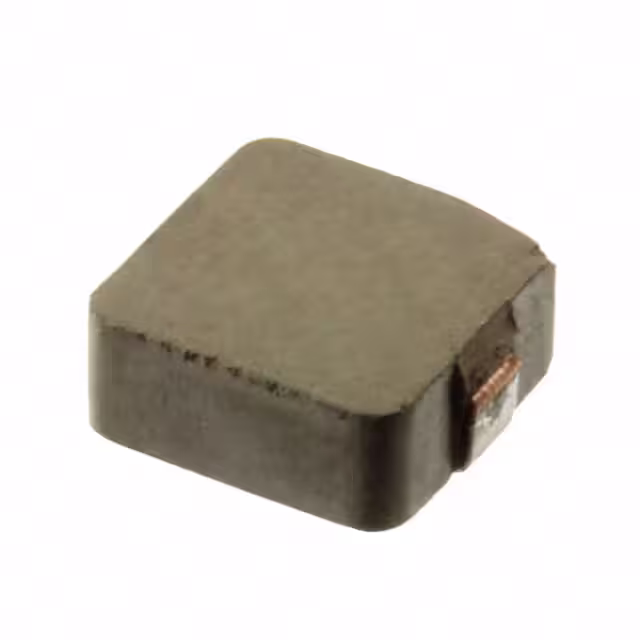

MPCG0730LR40FIXED IND 400NH 16A 2.6 MOHM SMD KEMET |
1,368 |
|
Datasheet |
MPCG | Nonstandard | Tape & Reel (TR) | Active | - | Metal Composite | ±20% | 16 A | 16A | - | Shielded | 2.6mOhm Max | 400 nH | - | - | Surface Mount | - | 0.295" L x 0.264" W (7.50mm x 6.70mm) | - | -20°C ~ 120°C | 100 kHz | 0.118" (3.00mm) |
|
|
SBC8-150-532FIXED IND 15UH 5.3A 30 MOHM TH KEMET |
134 |
|
Datasheet |
SBC | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | ±20% | 5.3 A | 9.6A | - | Unshielded | 30mOhm Max | 15 µH | - | - | Through Hole | - | 0.591" Dia (15.00mm) | - | -20°C ~ 105°C | 10 kHz | 0.748" (19.00mm) |
|
MPLC0730L1R0FIXED IND 1UH 10.6A 9 MOHM SMD KEMET |
12,085 |
|
Datasheet |
MPLC | 2-SMD, J-Lead | Tape & Reel (TR) | Active | Wirewound | - | ±20% | 10.6 A | 11A | - | Shielded | 9mOhm Max | 1 µH | - | - | Surface Mount | - | 0.303" L x 0.264" W (7.70mm x 6.70mm) | - | -20°C ~ 120°C | 100 kHz | 0.118" (3.00mm) |
