Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Part Status | Type | Material - Core | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Supplier Device Package | Shielding | DC Resistance (DCR) | Inductance | Q @ Freq | Frequency - Self Resonant | Mounting Style | Ratings | Size / Dimension | Features | Operating Temperature | Inductance Frequency - Test | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

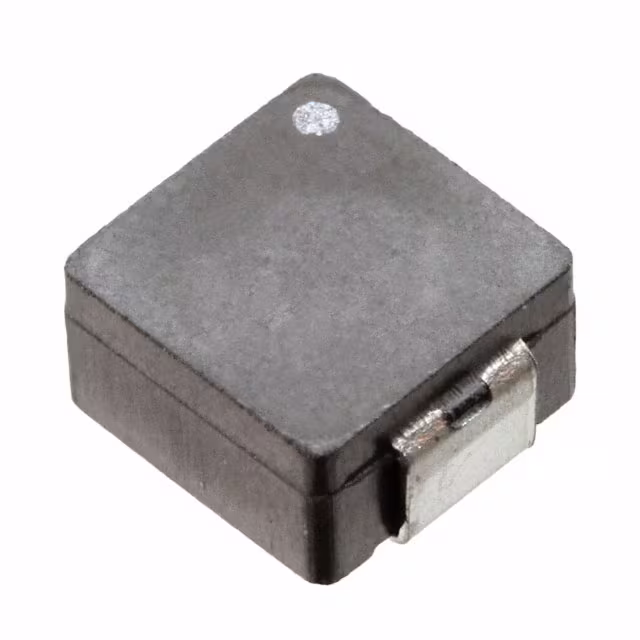

MPLCH0740L4R7FIXED IND 4.7UH 5.8A 33 MOHM SMD KEMET |
2,057 |
|
Datasheet |
MPLCH | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | ±20% | 5.8 A | 6.5A | - | Shielded | 33mOhm Max | 4.7 µH | - | - | Surface Mount | - | 0.307" L x 0.264" W (7.80mm x 6.70mm) | - | -20°C ~ 120°C | 100 kHz | 0.157" (4.00mm) |
|
MPLC0730L2R2FIXED IND 2.2UH 7.3A 19 MOHM SMD KEMET |
1,704 |
|
Datasheet |
MPLC | 2-SMD, J-Lead | Tape & Reel (TR) | Active | Wirewound | - | ±20% | 7.3 A | 8.2A | - | Shielded | 19mOhm Max | 2.2 µH | - | - | Surface Mount | - | 0.303" L x 0.264" W (7.70mm x 6.70mm) | - | -20°C ~ 120°C | 100 kHz | 0.118" (3.00mm) |
|

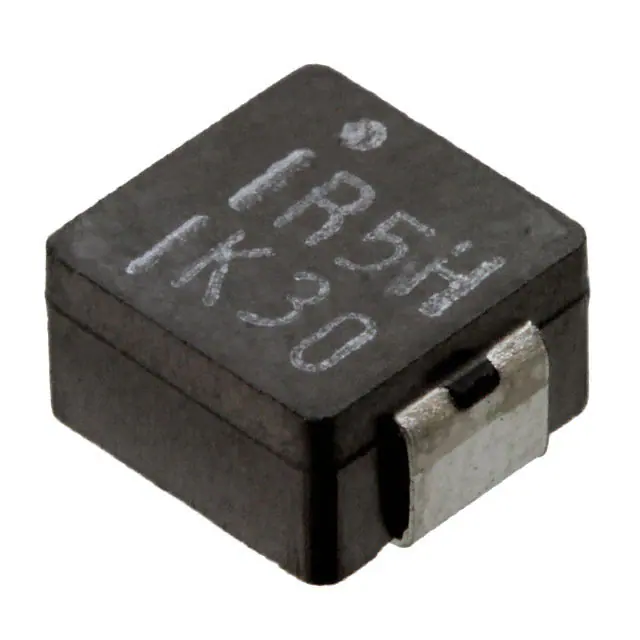

MPLCH0740L1R5FIXED IND 1.5UH 11.1A 9 MOHM SMD KEMET |
1,470 |
|
Datasheet |
MPLCH | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | ±20% | 11.1 A | 10.8A | - | Shielded | 9mOhm Max | 1.5 µH | - | - | Surface Mount | - | 0.307" L x 0.264" W (7.80mm x 6.70mm) | - | -20°C ~ 120°C | 100 kHz | 0.157" (4.00mm) |
|
MPXV1D0650L1R0FIXED IND 1UH 15.6A 6 MOHM SMD KEMET |
3,072 |
|
Datasheet |
METCOM MPXV | Nonstandard | Tape & Reel (TR) | Active | - | Metal Composite | ±20% | 15.6 A | 13A | - | Shielded | 6mOhm Max | 1 µH | - | 42MHz | Surface Mount | AEC-Q200 | 0.276" L x 0.256" W (7.00mm x 6.50mm) | - | -55°C ~ 155°C | 100 kHz | 0.197" (5.00mm) |
|
SBCP-87HY4R7HFIXED IND 4.7UH 3.2A 30 MOHM TH KEMET |
2,464 |
|
Datasheet |
SBCP | Radial, Vertical Cylinder | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 3.2 A | 4.3A | - | Unshielded | 30mOhm Max | 4.7 µH | - | - | Through Hole | - | 0.374" Dia (9.50mm) | - | -20°C ~ 105°C | 10 kHz | 0.335" (8.50mm) |
|
|
MPXV1D0650L1R5FIXED IND 1.5UH 13.2A 8.3MOHM SM KEMET |
1,922 |
|
Datasheet |
METCOM MPXV | Nonstandard | Tape & Reel (TR) | Active | - | Metal Composite | ±20% | 13.2 A | 12A | - | Shielded | 8.3mOhm Max | 1.5 µH | - | 35MHz | Surface Mount | AEC-Q200 | 0.276" L x 0.256" W (7.00mm x 6.50mm) | - | -55°C ~ 155°C | 100 kHz | 0.197" (5.00mm) |
|
|
MPXV1D0650L6R8FIXED IND 6.8UH 5.7A 44.2MOHM SM KEMET |
635 |
|
Datasheet |
METCOM MPXV | Nonstandard | Tape & Reel (TR) | Active | - | Metal Composite | ±20% | 5.7 A | 5.5A | - | Shielded | 44.2mOhm Max | 6.8 µH | - | 17MHz | Surface Mount | AEC-Q200 | 0.276" L x 0.256" W (7.00mm x 6.50mm) | - | -55°C ~ 155°C | 100 kHz | 0.197" (5.00mm) |
|
MPX1D1040L330FIXED IND 33UH 3.7A 119.7MOHM SM KEMET |
294 |
|
Datasheet |
METCOM MPX | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | ±20% | 3.7 A | 5A | - | Shielded | 119.7mOhm Max | 33 µH | - | 5MHz | Surface Mount | - | 0.425" L x 0.394" W (10.80mm x 10.00mm) | - | -55°C ~ 155°C | 100 kHz | 0.157" (4.00mm) |
|

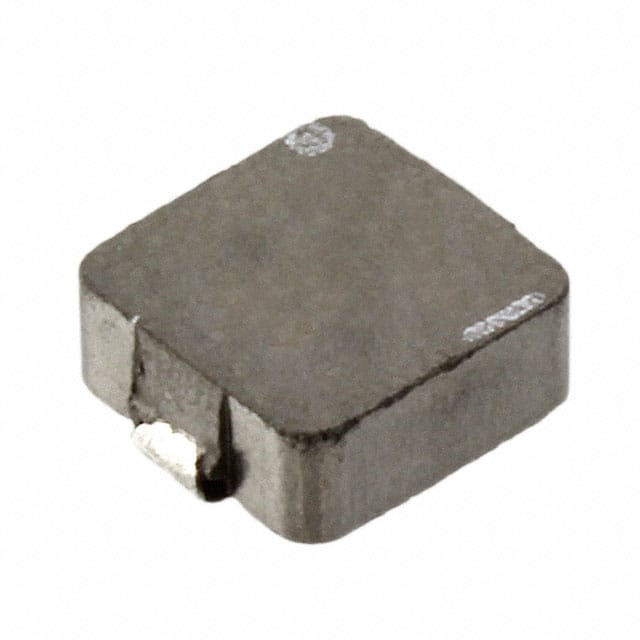

MPC0730LR20CFIXED IND 200NH 23A 1.2 MOHM SMD KEMET |
2,639 |
|
Datasheet |
MPC | 2-SMD, J-Lead | Tape & Reel (TR) | Active | - | Ferrite | ±25% | 23 A | 17.5A | - | Shielded | 1.2mOhm Max | 200 nH | - | - | Surface Mount | - | 0.315" L x 0.264" W (8.00mm x 6.70mm) | - | -20°C ~ 120°C | 100 kHz | 0.157" (4.00mm) |
|
|
SBCP-87HY330HFIXED IND 33UH 1.5A 120 MOHM TH KEMET |
1,993 |
|
Datasheet |
SBCP | Radial, Vertical Cylinder | Cut Tape (CT) | Active | Drum Core, Wirewound | Ferrite | ±20% | 1.5 A | 1.5A | - | Unshielded | 120mOhm Max | 33 µH | - | - | Through Hole | - | 0.374" Dia (9.50mm) | - | -20°C ~ 105°C | 10 kHz | 0.335" (8.50mm) |
