Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MPLC1040L1R5FIXED IND 1.5UH 12.4A 7 MOHM SMD KEMET |
0 |
|
Datasheet |
MPLC | 2-SMD, J-Lead | Tape & Reel (TR) | Active | Wirewound | - | 1.5 µH | ±20% | 12.4 A | 12.7A | Shielded | 7mOhm Max | - | - | - | -20°C ~ 120°C | 100 kHz | - | Surface Mount | - | 0.453" L x 0.394" W (11.50mm x 10.00mm) | 0.157" (4.00mm) |
|
MPX1D1250L680FIXED IND 68UH 3.6A 163 MOHM SMD KEMET |
198 |
|
Datasheet |
METCOM MPX | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | 68 µH | ±20% | 3.6 A | 4.5A | Shielded | 163mOhm Max | - | 3MHz | - | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.520" L x 0.492" W (13.20mm x 12.50mm) | 0.197" (5.00mm) |
|

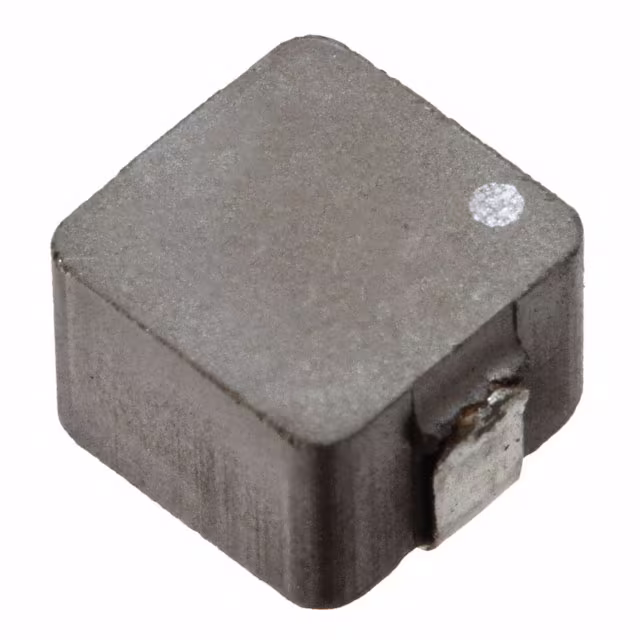

MPC0750LR60CFIXED IND 600NH 17A 2.3 MOHM SMD KEMET |
0 |
|
Datasheet |
MPC | 2-SMD, J-Lead | Tape & Reel (TR) | Active | - | Ferrite | 600 nH | ±20% | 17 A | 19A | Shielded | 2.3mOhm Max | - | - | - | -20°C ~ 120°C | 100 kHz | - | Surface Mount | - | 0.315" L x 0.264" W (8.00mm x 6.70mm) | 0.197" (5.00mm) |
|
|
MPX1D1250L1R0FIXED IND 1UH 28.8A 2.6 MOHM SMD KEMET |
497 |
|
Datasheet |
METCOM MPX | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | 1 µH | ±20% | 28.8 A | 43A | Shielded | 2.6mOhm Max | - | 34MHz | - | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.520" L x 0.492" W (13.20mm x 12.50mm) | 0.197" (5.00mm) |
|

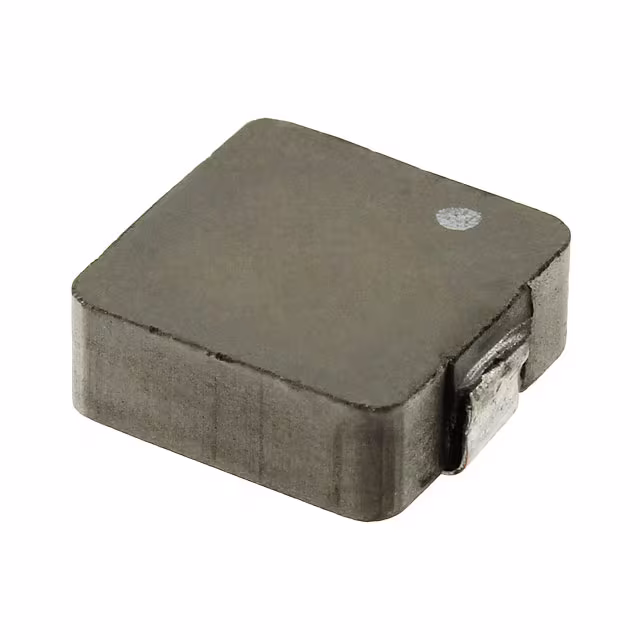

MPC1040LR88CFIXED IND 880NH 17A 2.3 MOHM SMD KEMET |
2,790 |
|
Datasheet |
MPC | 2-SMD, J-Lead | Tape & Reel (TR) | Active | - | Ferrite | 880 nH | ±20% | 17 A | 24A | Shielded | 2.3mOhm Max | - | - | - | -20°C ~ 120°C | 100 kHz | - | Surface Mount | - | 0.453" L x 0.394" W (11.50mm x 10.00mm) | 0.157" (4.00mm) |
|
|
MPX1D1250L2R2FIXED IND 2.2UH 21A 4.8 MOHM SMD KEMET |
483 |
|
Datasheet |
METCOM MPX | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | 2.2 µH | ±20% | 21 A | 28.5A | Shielded | 4.8mOhm Max | - | 21MHz | - | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.520" L x 0.492" W (13.20mm x 12.50mm) | 0.197" (5.00mm) |
|
SBCP-11HY101HFIXED IND 100UH 1.3A 190 MOHM TH KEMET |
643 |
|
Datasheet |
SBCP | Radial, Vertical Cylinder | Cut Tape (CT) | Active | Drum Core, Wirewound | Ferrite | 100 µH | ±10% | 1.3 A | 3A | Unshielded | 190mOhm Max | - | - | - | -20°C ~ 105°C | 10 kHz | - | Through Hole | - | 0.492" Dia (12.50mm) | 0.472" (12.00mm) |
|
MPXV1D1250L2R2FIXED IND 2.2UH 21A 4.8MOHM SMD KEMET |
500 |
|
Datasheet |
METCOM MPXV | Nonstandard | Tape & Reel (TR) | Active | - | Metal Composite | 2.2 µH | ±20% | 21 A | 28.5A | Shielded | 4.8mOhm Max | - | 21MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.520" L x 0.492" W (13.20mm x 12.50mm) | 0.197" (5.00mm) |
|
|
MPXV1D1250L4R7FIXED IND 4.7UH 14.4A 10.1 MOHM KEMET |
500 |
|
Datasheet |
METCOM MPXV | Nonstandard | Tape & Reel (TR) | Active | - | Metal Composite | 4.7 µH | ±20% | 14.4 A | 17.5A | Shielded | 10.1mOhm Max | - | 13MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.520" L x 0.492" W (13.20mm x 12.50mm) | 0.197" (5.00mm) |
|
|
MPXV1D1250L6R8FIXED IND 6.8UH 11.6A 15.5 MOHM KEMET |
492 |
|
Datasheet |
METCOM MPXV | Nonstandard | Tape & Reel (TR) | Active | - | Metal Composite | 6.8 µH | ±20% | 11.6 A | 14A | Shielded | 15.5mOhm Max | - | 10MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.520" L x 0.492" W (13.20mm x 12.50mm) | 0.197" (5.00mm) |
