Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LQH32PH4R7NNCLFIXED IND 4.7UH 1.2A 186MOHM SMD |
2,887 |
|
Datasheet |
LQH32 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 4.7 µH | ±30% | 1.2 A | 1.6A | Shielded | 186mOhm Max | - | 40MHz | AEC-Q200 | -40°C ~ 85°C | 1 MHz | - | Surface Mount | 1210 (3225 Metric) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.067" (1.70mm) |
|
VLS5045EX-680MFIXED IND 68UH 900MA 533MOHM SMD |
2,591 |
|
Datasheet |
VLS-EX | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 68 µH | ±20% | 900 mA | 1.1A | Shielded | 533mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.197" L x 0.197" W (5.00mm x 5.00mm) | 0.177" (4.50mm) |
|
VLS4020CX-6R8M-HINDUCTORS FOR POWER CIRCUITS, AU |
2,071 |
|
Datasheet |
VLS-CX-H | 1616 (4040 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 6.8 µH | ±20% | 1.84 A | 2.07A | Shielded | 156mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1616 | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.079" (2.00mm) |
|

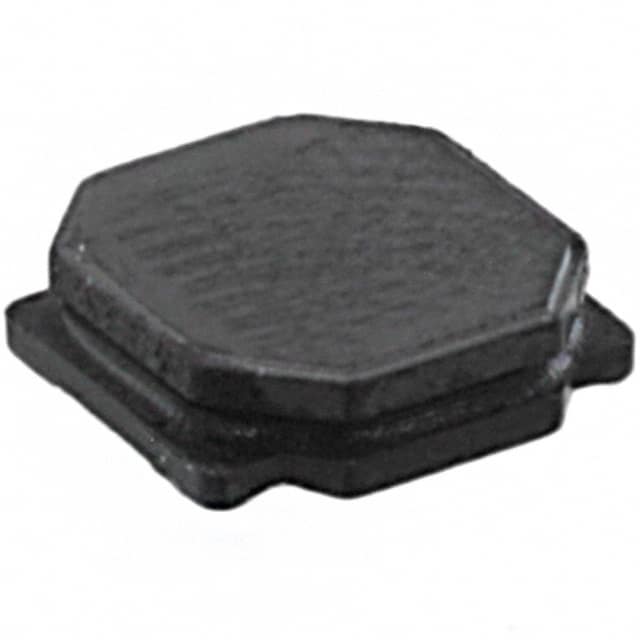

NR6020T3R3NFIXED IND 3.3UH 2.6A 48 MOHM SMD |
49,927 |
|
Datasheet |
NR | Nonstandard | Tape & Reel (TR) | Not For New Designs | Drum Core, Wirewound | Ferrite | 3.3 µH | ±30% | 2.6 A | 2.8A | Shielded | 48mOhm Max | - | 55MHz | - | -25°C ~ 120°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.079" (2.00mm) |
|
VLS252012HBU-4R7MFIXED IND 4.7UH 1.36A 295MOHM SM |
28,262 |
|
Datasheet |
VLS-HBU | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 4.7 µH | ±20% | 1.36 A | 1.67A | Shielded | 295mOhm Max | - | - | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | - | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.047" (1.20mm) |
|
VLCF4020T-3R3N1R5FIXED IND 3.3UH 1.52A 78MOHM SMD |
27,746 |
|
Datasheet |
VLCF | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 3.3 µH | ±30% | 1.52 A | 1.52A | Shielded | 78mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.079" (2.00mm) |
|
TFM201208ALD-1R0MTCAFIXED IND 1UH 2.4A 85 MOHM SMD |
25,848 |
|
Datasheet |
TFM-ALD | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Thin Film | Metal | 1 µH | ±20% | 2.4 A | 2.9A | Shielded | 85mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 0805 | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.031" (0.80mm) |
|
IHHP0603ZHERR47M01IHHP-0603ZH-01 .47 20% ER E3 |
13,882 |
|
Datasheet |
IHHP-0603ZH-01 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | - | Iron Powder | 470 nH | ±20% | 3 A | 3.1A | Shielded | 43mOhm Max | - | - | - | -55°C ~ 125°C | 1 MHz | - | Surface Mount | 0603 | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.031" (0.80mm) |
|
|
IHHP0805ZHER2R2M01IHHP-0805ZH-01 2.2 20% ER E3 |
12,052 |
|
Datasheet |
IHHP-0805ZH-01 | 0805 (2012 Metric) | Tape & Reel (TR) | Active | - | Iron Powder | 2.2 µH | ±20% | 1.6 A | 1.9A | Shielded | 110mOhm Max | - | - | - | -55°C ~ 125°C | 1 MHz | - | Surface Mount | 0805 | 0.079" L x 0.047" W (2.00mm x 1.20mm) | 0.031" (0.80mm) |
|
744765116AFIXED IND 16NH 560MA 220MOHM SMD |
11,495 |
|
Datasheet |
WE-KI | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 16 nH | ±5% | 560 mA | - | Unshielded | 220mOhm Max | 24 @ 250MHz | 3.1GHz | AEC-Q200 | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.022" W (1.00mm x 0.55mm) | 0.024" (0.60mm) |
|
|
744765019AFIXED IND 1.9NH 1.04A 70MOHM SMD |
10,338 |
|
Datasheet |
WE-KI | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 1.9 nH | ±0.2nH | 1.04 A | - | Unshielded | 70mOhm Max | 16 @ 250MHz | 6GHz | AEC-Q200 | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.022" W (1.00mm x 0.55mm) | 0.024" (0.60mm) |
|
LPWI201210HR47TFIXED IND 470NH 4.3A 28MOHM SMD |
9,700 |
|
Datasheet |
LPWI | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Thin Film | Metal Composite | 470 nH | ±20% | 4.3 A | 4.9A | Shielded | 28mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 0805 | 0.079" L x 0.047" W (2.00mm x 1.20mm) | 0.039" (1.00mm) |
|
|
744765133AFIXED IND 33NH 400MA 350MOHM SMD |
8,749 |
|
Datasheet |
WE-KI | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 33 nH | ±5% | 400 mA | - | Unshielded | 350mOhm Max | 24 @ 250MHz | 2.35GHz | AEC-Q200 | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.022" W (1.00mm x 0.55mm) | 0.024" (0.60mm) |
|
ASPIAIG-S4035-100M-TFIXED IND 10UH 1.85A 140MOHM SMD |
8,110 |
|
Datasheet |
ASPIAIG-S4035 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 10 µH | ±20% | 1.85 A | 2.3A | Shielded | 140mOhm Max | - | 21MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.146" (3.70mm) |
|
|
744765075AFIXED IND 7.5NH 680MA 104MOHM SM |
7,360 |
|
Datasheet |
WE-KI | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 7.5 nH | ±5% | 680 mA | - | Unshielded | 104mOhm Max | 25 @ 250MHz | 5.8GHz | AEC-Q200 | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.022" W (1.00mm x 0.55mm) | 0.024" (0.60mm) |
|
ASPI-4030S-470M-TFIXED IND 47UH 720MA 445MOHM SMD |
6,753 |
|
Datasheet |
ASPI-4030S | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Nickel Zinc Ferrite (NiZn) | 47 µH | ±20% | 720 mA | 950mA | Shielded | 445mOhm | - | 8.4MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.118" (3.00mm) |
|
LQM2HPN1R0MJHLFIXED IND 1UH 2.3A 63 MOHM SMD |
6,504 |
|
Datasheet |
LQM2 | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 1 µH | ±20% | 2.3 A | 2.1A | Shielded | 63mOhm Max | - | 50MHz | - | -40°C ~ 85°C | 1 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.047" (1.20mm) |
|
|
ASPI-4030S-220M-TFIXED IND 22UH 1A 225 MOHM SMD |
6,488 |
|
Datasheet |
ASPI-4030S | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Nickel Zinc Ferrite (NiZn) | 22 µH | ±20% | 1 A | 1.3A | Shielded | 225mOhm | - | 10MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.118" (3.00mm) |
|
|
744765056AFIXED IND 5.6NH 760MA 83MOHM SMD |
5,511 |
|
Datasheet |
WE-KI | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 5.6 nH | ±5% | 760 mA | - | Unshielded | 83mOhm Max | 23 @ 250MHz | 5.8GHz | AEC-Q200 | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.022" W (1.00mm x 0.55mm) | 0.024" (0.60mm) |
|
|
ASPI-4030S-6R8M-TFIXED IND 6.8UH 1.6A 90 MOHM SMD |
4,701 |
|
Datasheet |
ASPI-4030S | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Nickel Zinc Ferrite (NiZn) | 6.8 µH | ±20% | 1.6 A | 2.75A | Shielded | 90mOhm | - | 24MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.118" (3.00mm) |
