Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Part Status | Type | Material - Core | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Supplier Device Package | Shielding | DC Resistance (DCR) | Inductance | Q @ Freq | Frequency - Self Resonant | Mounting Style | Ratings | Size / Dimension | Features | Operating Temperature | Inductance Frequency - Test | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

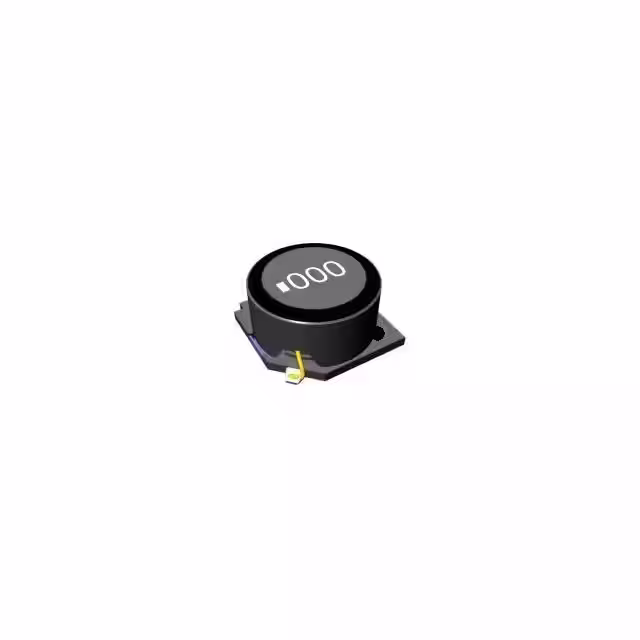

LCRNJ10145GL151MNFIXED IND 150UH 860MA 420MOHM SM Taiyo Yuden |
3,113 |
|
- |
LCRN | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | ±20% | 860 mA | 1.11A | - | Shielded | 350mOhm | 150 µH | - | - | Surface Mount | AEC-Q200 | 0.398" L x 0.398" W (10.10mm x 10.10mm) | - | -40°C ~ 125°C | 100 kHz | 0.191" (4.85mm) |
|
NS12555T6R0NNVFIXED IND 6UH 5.6A 16.8MOHM SMD Taiyo Yuden |
4,313 |
|
Datasheet |
NS | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±30% | 5.6 A | 5.01A | - | Shielded | 16.8mOhm Max | 6 µH | - | 26.4MHz | Surface Mount | AEC-Q200 | 0.492" L x 0.492" W (12.50mm x 12.50mm) | - | -40°C ~ 125°C | 100 kHz | 0.230" (5.85mm) |
|
|
NS12555T150MNVFIXED IND 15UH 4.18A 28MOHM SMD Taiyo Yuden |
3,007 |
|
Datasheet |
NS | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 4.18 A | 3.89A | - | Shielded | 28mOhm Max | 15 µH | - | 16.6MHz | Surface Mount | AEC-Q200 | 0.492" L x 0.492" W (12.50mm x 12.50mm) | - | -40°C ~ 125°C | 100 kHz | 0.230" (5.85mm) |
|
|
NS12555T330MNVFIXED IND 33UH 3.16A 49.8MOHM SM Taiyo Yuden |
3,095 |
|
Datasheet |
NS | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 3.16 A | 2.64A | - | Shielded | 49.8mOhm Max | 33 µH | - | 10.8MHz | Surface Mount | AEC-Q200 | 0.492" L x 0.492" W (12.50mm x 12.50mm) | - | -40°C ~ 125°C | 100 kHz | 0.230" (5.85mm) |
|
|
NS12555T680MNVFIXED IND 68UH 2.14A 99.9MOHM SM Taiyo Yuden |
4,454 |
|
Datasheet |
NS | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 2.14 A | 1.81A | - | Shielded | 99.9mOhm Max | 68 µH | - | 7.9MHz | Surface Mount | AEC-Q200 | 0.492" L x 0.492" W (12.50mm x 12.50mm) | - | -40°C ~ 125°C | 100 kHz | 0.230" (5.85mm) |
|
|
NS12555T151MNVFIXED IND 150UH 1.3A 258MOHM SMD Taiyo Yuden |
4,984 |
|
Datasheet |
NS | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 1.3 A | 1.1A | - | Shielded | 258mOhm Max | 150 µH | - | 5.1MHz | Surface Mount | AEC-Q200 | 0.492" L x 0.492" W (12.50mm x 12.50mm) | - | -40°C ~ 125°C | 100 kHz | 0.230" (5.85mm) |
|
|
NS12555T331MNVFIXED IND 330UH 960MA 492MOHM SM Taiyo Yuden |
3,556 |
|
Datasheet |
NS | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 960 mA | 820mA | - | Shielded | 492mOhm Max | 330 µH | - | 3.4MHz | Surface Mount | AEC-Q200 | 0.492" L x 0.492" W (12.50mm x 12.50mm) | - | -40°C ~ 125°C | 100 kHz | 0.230" (5.85mm) |
|
|
NS12555T681MNVFIXED IND 680UH 610MA 1.044 OHM Taiyo Yuden |
3,829 |
|
Datasheet |
NS | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 610 mA | 480mA | - | Shielded | 1.044Ohm Max | 680 µH | - | 2.5MHz | Surface Mount | AEC-Q200 | 0.492" L x 0.492" W (12.50mm x 12.50mm) | - | -40°C ~ 125°C | 100 kHz | 0.230" (5.85mm) |
|
|
NS12555T102MNVFIXED IND 1MH 460MA 1.73 OHM SMD Taiyo Yuden |
3,478 |
|
Datasheet |
NS | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 460 mA | 410mA | - | Shielded | 1.73Ohm Max | 1 mH | - | 2MHz | Surface Mount | AEC-Q200 | 0.492" L x 0.492" W (12.50mm x 12.50mm) | - | -40°C ~ 125°C | 100 kHz | 0.230" (5.85mm) |
|
|
NS12565T2R0NNVFIXED IND 2UH 7.6A 9.6 MOHM SMD Taiyo Yuden |
3,904 |
|
Datasheet |
NS | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±30% | 7.6 A | 13.91A | - | Shielded | 9.6mOhm Max | 2 µH | - | 82.3MHz | Surface Mount | AEC-Q200 | 0.492" L x 0.492" W (12.50mm x 12.50mm) | - | -40°C ~ 125°C | 100 kHz | 0.270" (6.85mm) |
