Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Part Status | Type | Material - Core | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Supplier Device Package | Shielding | DC Resistance (DCR) | Inductance | Q @ Freq | Frequency - Self Resonant | Mounting Style | Ratings | Size / Dimension | Features | Operating Temperature | Inductance Frequency - Test | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

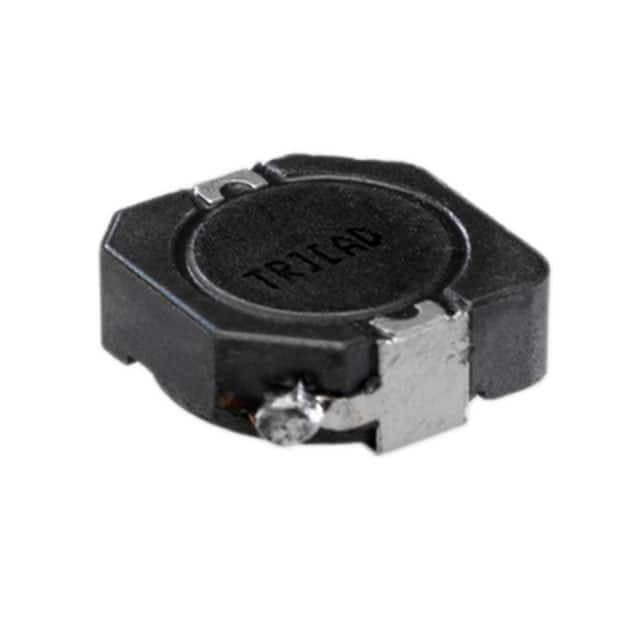

AX104R-4R7FIXED IND 4.7UH 6A 13 MOHM SMD Triad Magnetics |
3,031 |
|
Datasheet |
AX104R | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±30% | 6 A | - | SMD | Shielded | 13mOhm Max | 4.7 µH | - | - | Surface Mount | - | 0.409" L x 0.406" W (10.40mm x 10.30mm) | - | -40°C ~ 85°C | 100 kHz | 0.157" (4.00mm) |
|
|
AX104R-150FIXED IND 15UH 3.6A 50 MOHM SMD Triad Magnetics |
4,928 |
|
Datasheet |
AX104R | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±30% | 3.6 A | - | SMD | Shielded | 50mOhm Max | 15 µH | - | - | Surface Mount | - | 0.409" L x 0.406" W (10.40mm x 10.30mm) | - | -40°C ~ 85°C | 100 kHz | 0.157" (4.00mm) |
|
AX97-10150FIXED IND 15UH 800MA 300MOHM SMD Triad Magnetics |
4,793 |
|
Datasheet |
AX97 | Nonstandard | Bulk | Active | Drum Core, Wirewound | Ferrite | ±20% | 800 mA | - | SMD | Unshielded | 300mOhm Max | 15 µH | - | - | Surface Mount | - | 0.287" L x 0.188" W (7.30mm x 4.78mm) | - | -40°C ~ 85°C | 100 kHz | 0.127" (3.23mm) |
|
|
AX97-10151FIXED IND 150UH 220MA 3.08OHM SM Triad Magnetics |
4,638 |
|
Datasheet |
AX97 | Nonstandard | Bulk | Active | Drum Core, Wirewound | Ferrite | ±20% | 220 mA | - | SMD | Unshielded | 3.08Ohm Max | 150 µH | - | - | Surface Mount | - | 0.287" L x 0.188" W (7.30mm x 4.78mm) | - | -40°C ~ 85°C | 100 kHz | 0.127" (3.23mm) |
|
|
AX97-101R0FIXED IND 1UH 2.9A 30 MOHM SMD Triad Magnetics |
3,809 |
|
Datasheet |
AX97 | Nonstandard | Bulk | Active | Drum Core, Wirewound | Ferrite | ±20% | 2.9 A | - | SMD | Unshielded | 30mOhm Max | 1 µH | - | - | Surface Mount | - | 0.287" L x 0.188" W (7.30mm x 4.78mm) | - | -40°C ~ 85°C | 100 kHz | 0.127" (3.23mm) |
|
|
AX97-10220FIXED IND 22UH 700MA 430MOHM SMD Triad Magnetics |
3,131 |
|
Datasheet |
AX97 | Nonstandard | Bulk | Active | Drum Core, Wirewound | Ferrite | ±20% | 700 mA | - | SMD | Unshielded | 430mOhm Max | 22 µH | - | - | Surface Mount | - | 0.287" L x 0.188" W (7.30mm x 4.78mm) | - | -40°C ~ 85°C | 100 kHz | 0.127" (3.23mm) |
|
|
AX97-102R2FIXED IND 2.2UH 2.4A 60MOHM SMD Triad Magnetics |
2,228 |
|
Datasheet |
AX97 | Nonstandard | Bulk | Active | Drum Core, Wirewound | Ferrite | ±20% | 2.4 A | - | SMD | Unshielded | 60mOhm Max | 2.2 µH | - | - | Surface Mount | - | 0.287" L x 0.188" W (7.30mm x 4.78mm) | - | -40°C ~ 85°C | 100 kHz | 0.127" (3.23mm) |
|
|
AX97-103R3FIXED IND 3.3UH 2A 90 MOHM SMD Triad Magnetics |
2,751 |
|
Datasheet |
AX97 | Nonstandard | Bulk | Active | Drum Core, Wirewound | Ferrite | ±20% | 2 A | - | SMD | Unshielded | 90mOhm Max | 3.3 µH | - | - | Surface Mount | - | 0.287" L x 0.188" W (7.30mm x 4.78mm) | - | -40°C ~ 85°C | 100 kHz | 0.127" (3.23mm) |
|
|
AX97-10101FIXED IND 100UH 280MA 1.98OHM SM Triad Magnetics |
2,071 |
|
Datasheet |
AX97 | Nonstandard | Box | Active | Drum Core, Wirewound | Ferrite | ±20% | 280 mA | - | SMD | Unshielded | 1.98Ohm Max | 100 µH | - | - | Surface Mount | - | 0.287" L x 0.188" W (7.30mm x 4.78mm) | - | -40°C ~ 85°C | 100 kHz | 0.127" (3.23mm) |
|
|
AX97-101R5FIXED IND 1.5UH 2.8A 50 MOHM SMD Triad Magnetics |
3,101 |
|
Datasheet |
AX97 | Nonstandard | Box | Active | Drum Core, Wirewound | Ferrite | ±20% | 2.8 A | - | SMD | Unshielded | 50mOhm Max | 1.5 µH | - | - | Surface Mount | - | 0.287" L x 0.188" W (7.30mm x 4.78mm) | - | -40°C ~ 85°C | 100 kHz | 0.127" (3.23mm) |
