Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Part Status | Type | Material - Core | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Supplier Device Package | Shielding | DC Resistance (DCR) | Inductance | Q @ Freq | Frequency - Self Resonant | Mounting Style | Ratings | Size / Dimension | Features | Operating Temperature | Inductance Frequency - Test | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AX97-20221FIXED IND 220UH 400MA 1.3OHM SMD Triad Magnetics |
3,027 |
|
Datasheet |
AX97 | Nonstandard | Box | Active | Drum Core, Wirewound | Ferrite | ±20% | 400 mA | - | SMD | Unshielded | 1.3Ohm Max | 220 µH | - | - | Surface Mount | - | 0.530" L x 0.370" W (13.46mm x 9.40mm) | - | -40°C ~ 85°C | 100 kHz | 0.138" (3.50mm) |
|
|
AX97-20330FIXED IND 33UH 1.1A 210 MOHM SMD Triad Magnetics |
2,360 |
|
Datasheet |
AX97 | Nonstandard | Box | Active | Drum Core, Wirewound | Ferrite | ±20% | 1.1 A | - | SMD | Unshielded | 210mOhm Max | 33 µH | - | - | Surface Mount | - | 0.530" L x 0.370" W (13.46mm x 9.40mm) | - | -40°C ~ 85°C | 100 kHz | 0.138" (3.50mm) |
|
|
AX97-20331FIXED IND 330UH 300MA 2 OHM SMD Triad Magnetics |
3,721 |
|
Datasheet |
AX97 | Nonstandard | Box | Active | Drum Core, Wirewound | Ferrite | ±20% | 300 mA | - | SMD | Unshielded | 2Ohm Max | 330 µH | - | - | Surface Mount | - | 0.530" L x 0.370" W (13.46mm x 9.40mm) | - | -40°C ~ 85°C | 100 kHz | 0.138" (3.50mm) |
|
|
AX97-20471FIXED IND 470UH 200MA 2.5OHM SMD Triad Magnetics |
3,523 |
|
Datasheet |
AX97 | Nonstandard | Box | Active | Drum Core, Wirewound | Ferrite | ±20% | 200 mA | - | SMD | Unshielded | 2.5Ohm Max | 470 µH | - | - | Surface Mount | - | 0.530" L x 0.370" W (13.46mm x 9.40mm) | - | -40°C ~ 85°C | 100 kHz | 0.138" (3.50mm) |
|
|
AX97-20681FIXED IND 680UH 100MA 3.5OHM SMD Triad Magnetics |
4,454 |
|
Datasheet |
AX97 | Nonstandard | Box | Active | Drum Core, Wirewound | Ferrite | ±20% | 100 mA | - | SMD | Unshielded | 3.5Ohm Max | 680 µH | - | - | Surface Mount | - | 0.530" L x 0.370" W (13.46mm x 9.40mm) | - | -40°C ~ 85°C | 100 kHz | 0.138" (3.50mm) |
|

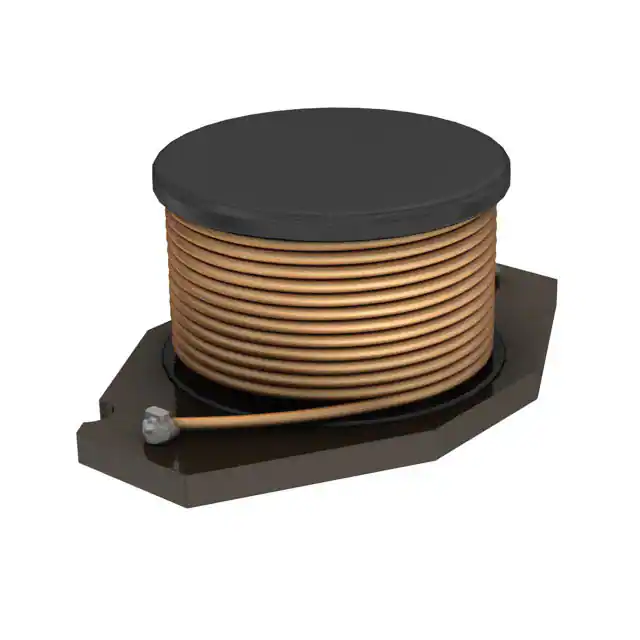

AX97-30150FIXED IND 15UH 3.7A 50 MOHM SMD Triad Magnetics |
2,428 |
|
Datasheet |
AX97 | Nonstandard | Bulk | Active | Drum Core, Wirewound | Ferrite | ±20% | 3.7 A | - | SMD | Unshielded | 50mOhm Max | 15 µH | - | - | Surface Mount | - | 0.530" L x 0.370" W (13.46mm x 9.40mm) | - | -40°C ~ 85°C | 100 kHz | 0.232" (5.90mm) |
|
|
AX97-301R5FIXED IND 1.5UH 7.9A 10 MOHM SMD Triad Magnetics |
3,258 |
|
Datasheet |
AX97 | Nonstandard | Box | Active | Drum Core, Wirewound | Ferrite | ±20% | 7.9 A | - | SMD | Unshielded | 10mOhm Max | 1.5 µH | - | - | Surface Mount | - | 0.530" L x 0.370" W (13.46mm x 9.40mm) | - | -40°C ~ 85°C | 100 kHz | 0.232" (5.90mm) |
|

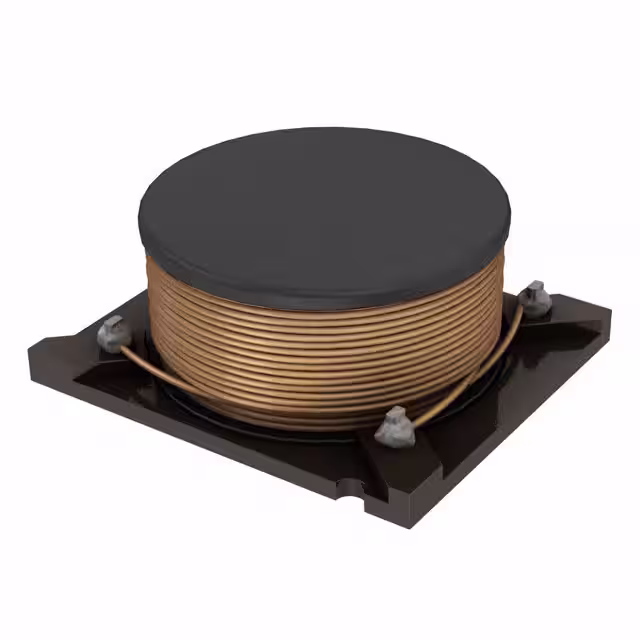

AX97-40102FIXED IND 1MH 650MA 1.45 OHM SMD Triad Magnetics |
4,398 |
|
Datasheet |
AX97 | Nonstandard | Bulk | Active | Drum Core, Wirewound | Ferrite | ±20% | 650 mA | - | SMD | Unshielded | 1.45Ohm Max | 1 mH | - | - | Surface Mount | - | 0.634" L x 0.622" W (16.10mm x 15.80mm) | - | -40°C ~ 85°C | 100 kHz | 0.284" (7.21mm) |
|
|
AX97-30101FIXED IND 100UH 1.5A 300MOHM SMD Triad Magnetics |
4,253 |
|
Datasheet |
AX97 | Nonstandard | Bulk | Active | Drum Core, Wirewound | Ferrite | ±20% | 1.5 A | - | SMD | Unshielded | 300mOhm Max | 100 µH | - | - | Surface Mount | - | 0.530" L x 0.370" W (13.46mm x 9.40mm) | - | -40°C ~ 85°C | 100 kHz | 0.232" (5.90mm) |
|
|
AX97-30102FIXED IND 1MH 300MA 3.15 OHM SMD Triad Magnetics |
4,833 |
|
Datasheet |
AX97 | Nonstandard | Bulk | Active | Drum Core, Wirewound | Ferrite | ±20% | 300 mA | - | SMD | Unshielded | 3.15Ohm Max | 1 mH | - | - | Surface Mount | - | 0.530" L x 0.370" W (13.46mm x 9.40mm) | - | -40°C ~ 85°C | 100 kHz | 0.232" (5.90mm) |
