Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
744775182FIXED IND 82UH 900MA 370MOHM SMD Würth Elektronik |
867 |
|
Datasheet |
WE-PD2 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 82 µH | ±10% | 900 mA | 950mA | Unshielded | 370mOhm Max | - | 8.6MHz | - | -40°C ~ 125°C | 10 kHz | - | Surface Mount | - | 0.307" L x 0.276" W (7.80mm x 7.00mm) | 0.217" (5.50mm) |
|
784787150FIXED IND 15UH 2.3A 60 MOHM SMD Würth Elektronik |
838 |
|
Datasheet |
WE-PD2SA | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 15 µH | ±25% | 2.3 A | 2.1A | Shielded | 60mOhm Max | - | 18MHz | AEC-Q200 | -50°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.260" L x 0.175" W (6.60mm x 4.45mm) | 0.197" (5.00mm) |
|
74451068FIXED IND 6.8UH 1.2A 0.065OHM SM Würth Elektronik |
605 |
|
Datasheet |
WE-PD3 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | - | 6.8 µH | ±20% | 1.2 A | 500mA | Shielded | 65mOhm Max | - | 36.5MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.260" L x 0.175" W (6.60mm x 4.45mm) | 0.115" (2.92mm) |
|
7447715221FIXED IND 220UH 950MA 480MOHM SM Würth Elektronik |
576 |
|
Datasheet |
WE-PD | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 220 µH | ±20% | 950 mA | 1A | Shielded | 480mOhm Max | - | 4.7MHz | AEC-Q200 | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.177" (4.50mm) |
|
74451133FIXED IND 33UH 600MA 0.19OHM SMD Würth Elektronik |
526 |
|
Datasheet |
WE-PD3 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | - | 33 µH | ±20% | 600 mA | 150mA | Shielded | 190mOhm Max | - | 14.5MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.260" L x 0.175" W (6.60mm x 4.45mm) | 0.115" (2.92mm) |
|
744771218FIXED IND 180UH 1.06A 290MOHM SM Würth Elektronik |
500 |
|
Datasheet |
WE-PD | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 180 µH | ±20% | 1.06 A | 1.24A | Shielded | 290mOhm Max | - | 4.1MHz | AEC-Q200 | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.236" (6.00mm) |
|
744775380FIXED IND 8MH 140MA 25 OHM SMD Würth Elektronik |
485 |
|
Datasheet |
WE-ASI | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 8 mH | ±10% | 140 mA | 90mA | Unshielded | 25Ohm Max | - | 700kHz | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.315" L x 0.276" W (8.00mm x 7.00mm) | 0.217" (5.50mm) |
|

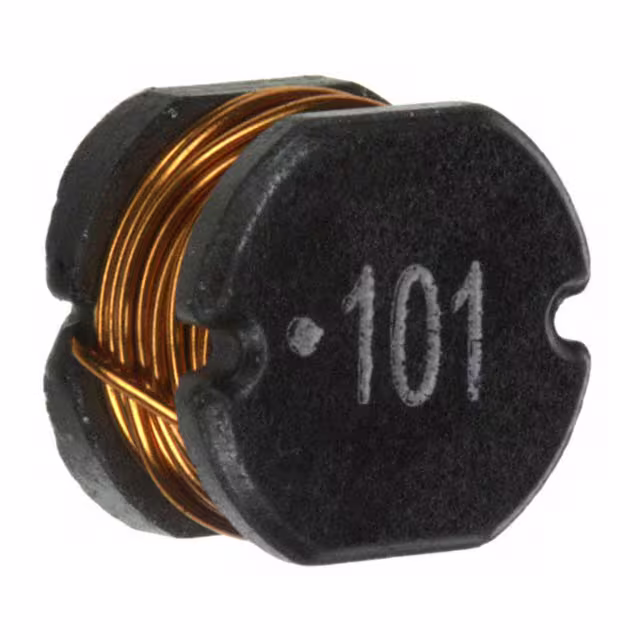

74477520FIXED IND 100UH 770MA 430MOHM SM Würth Elektronik |
453 |
|
Datasheet |
WE-PD2 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 100 µH | ±10% | 770 mA | 860mA | Unshielded | 430mOhm Max | - | 8MHz | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.307" L x 0.276" W (7.80mm x 7.00mm) | 0.217" (5.50mm) |
|
|
7447715002FIXED IND 2.5UH 6.8A 11 MOHM SMD Würth Elektronik |
453 |
|
Datasheet |
WE-PD | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 2.5 µH | ±30% | 6.8 A | 8.5A | Shielded | 11mOhm Max | - | 50MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.177" (4.50mm) |
|
74477126FIXED IND 680UH 550MA 1.2OHM SMD Würth Elektronik |
453 |
|
Datasheet |
WE-PD | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 680 µH | ±20% | 550 mA | 680mA | Shielded | 1.2Ohm Max | - | 2.3MHz | AEC-Q200 | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.236" (6.00mm) |
