Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
7447779156FIXED IND 56UH 930MA 350MOHM SMD Würth Elektronik |
3,816 |
|
Datasheet |
WE-PD Robust | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 56 µH | ±20% | 930 mA | 1.05A | Shielded | 350mOhm Max | - | 10MHz | AEC-Q200 | -40°C ~ 125°C | 1 kHz | - | Surface Mount | 7345 | 0.287" L x 0.287" W (7.30mm x 7.30mm) | 0.177" (4.50mm) |
|
744777215FIXED IND 150UH 520MA 880MOHM SM Würth Elektronik |
3,633 |
|
Datasheet |
WE-PD | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 150 µH | ±20% | 520 mA | 630mA | Shielded | 880mOhm Max | - | 6MHz | AEC-Q200 | -40°C ~ 125°C | 1 kHz | - | Surface Mount | 7345 | 0.287" L x 0.287" W (7.30mm x 7.30mm) | 0.177" (4.50mm) |
|
|
7447779168FIXED IND 68UH 870MA 380MOHM SMD Würth Elektronik |
3,399 |
|
Datasheet |
WE-PD Robust | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 68 µH | ±20% | 870 mA | 950mA | Shielded | 380mOhm Max | - | 9MHz | AEC-Q200 | -40°C ~ 125°C | 1 kHz | - | Surface Mount | 7345 | 0.287" L x 0.287" W (7.30mm x 7.30mm) | 0.177" (4.50mm) |
|
|
744777222FIXED IND 220UH 440MA 1.17OHM SM Würth Elektronik |
3,093 |
|
Datasheet |
WE-PD | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 220 µH | ±20% | 440 mA | 540mA | Shielded | 1.17Ohm Max | - | 5MHz | AEC-Q200 | -40°C ~ 125°C | 1 kHz | - | Surface Mount | 7345 | 0.287" L x 0.287" W (7.30mm x 7.30mm) | 0.177" (4.50mm) |
|

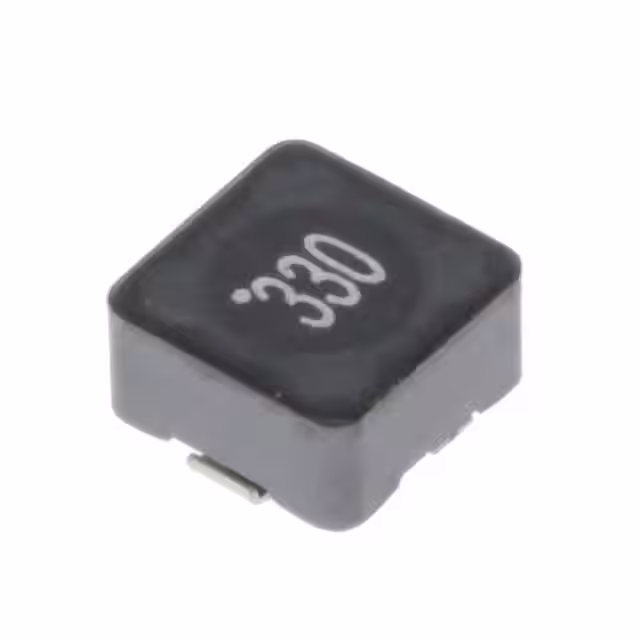

744777133FIXED IND 33UH 1.13A 170MOHM SMD Würth Elektronik |
2,693 |
|
Datasheet |
WE-PD | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 33 µH | ±20% | 1.13 A | 1.4A | Shielded | 170mOhm Max | - | 13MHz | AEC-Q200 | -40°C ~ 125°C | 1 kHz | - | Surface Mount | 7345 | 0.287" L x 0.287" W (7.30mm x 7.30mm) | 0.177" (4.50mm) |
|
|
744777115FIXED IND 15UH 1.6A 81 MOHM SMD Würth Elektronik |
2,611 |
|
Datasheet |
WE-PD | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 15 µH | ±20% | 1.6 A | 2.2A | Shielded | 81mOhm Max | - | 19.5MHz | AEC-Q200 | -40°C ~ 125°C | 1 kHz | - | Surface Mount | 7345 | 0.287" L x 0.287" W (7.30mm x 7.30mm) | 0.177" (4.50mm) |
|
|
7447779270FIXED IND 270UH 430MA 1.64OHM SM Würth Elektronik |
2,399 |
|
Datasheet |
WE-PD Robust | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 270 µH | ±20% | 430 mA | 480mA | Shielded | 1.64Ohm Max | - | 4.3MHz | AEC-Q200 | -40°C ~ 125°C | 1 kHz | - | Surface Mount | 7345 | 0.287" L x 0.287" W (7.30mm x 7.30mm) | 0.177" (4.50mm) |
|
|
7447779001FIXED IND 1UH 5.3A 15 MOHM SMD Würth Elektronik |
1,651 |
|
Datasheet |
WE-PD Robust | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1 µH | ±20% | 5.3 A | 9.5A | Shielded | 15mOhm Max | - | 49MHz | AEC-Q200 | -40°C ~ 125°C | 1 kHz | - | Surface Mount | 7345 | 0.287" L x 0.287" W (7.30mm x 7.30mm) | 0.177" (4.50mm) |
|
|
744777118FIXED IND 18UH 1.5A 91 MOHM SMD Würth Elektronik |
1,633 |
|
Datasheet |
WE-PD | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 18 µH | ±20% | 1.5 A | 2.05A | Shielded | 91mOhm Max | - | 19MHz | AEC-Q200 | -40°C ~ 125°C | 1 kHz | - | Surface Mount | 7345 | 0.287" L x 0.287" W (7.30mm x 7.30mm) | 0.177" (4.50mm) |
|
|
7447779004FIXED IND 4.7UH 3.16A 32MOHM SMD Würth Elektronik |
1,610 |
|
Datasheet |
WE-PD Robust | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 4.7 µH | ±20% | 3.16 A | 4.4A | Shielded | 32mOhm Max | - | 37MHz | AEC-Q200 | -40°C ~ 125°C | 1 kHz | - | Surface Mount | 7345 | 0.287" L x 0.287" W (7.30mm x 7.30mm) | 0.177" (4.50mm) |
