Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

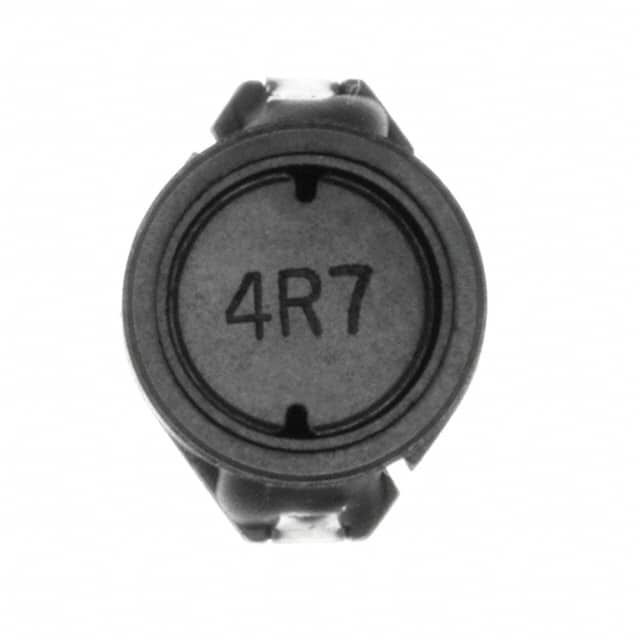

7445404FIXED IND 4.7UH 2.7A 0.04OHM SMD Würth Elektronik |
2,150 |
|
Datasheet |
WE-PD3 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | - | 4.7 µH | ±20% | 2.7 A | 4.7A | Shielded | 40mOhm Max | - | 48MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.500" L x 0.394" W (12.70mm x 10.00mm) | 0.205" (5.20mm) |
|
78477047FIXED IND 4.7UH 6A 20 MOHM SMD Würth Elektronik |
1,222 |
|
Datasheet |
WE-PDA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Nickel Zinc Ferrite (NiZn) | 4.7 µH | ±20% | 6 A | 11A | Shielded | 20mOhm Max | - | 58.1MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 1280 | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.327" (8.30mm) |
|
|
784770220FIXED IND 22UH 4A 44.5 MOHM SMD Würth Elektronik |
1,159 |
|
Datasheet |
WE-PDA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Nickel Zinc Ferrite (NiZn) | 22 µH | ±20% | 4 A | 4.7A | Shielded | 44.5mOhm Max | - | 15.6MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 1280 | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.327" (8.30mm) |
|
|
784770331FIXED IND 330UH 1A 468 MOHM SMD Würth Elektronik |
224 |
|
Datasheet |
WE-PDA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Nickel Zinc Ferrite (NiZn) | 330 µH | ±20% | 1 A | 1.2A | Shielded | 468mOhm Max | - | 2.5MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 1280 | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.327" (8.30mm) |
|

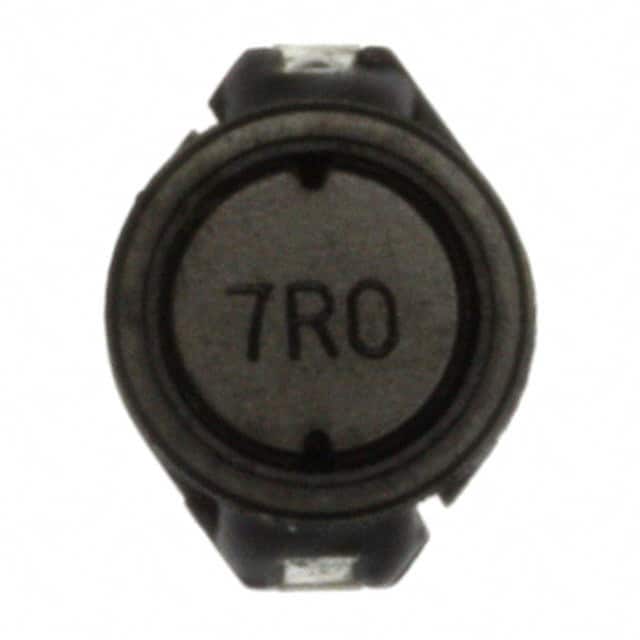

74454068FIXED IND 7UH 2.2A 0.055OHM SMD Würth Elektronik |
211 |
|
Datasheet |
WE-PD3 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | - | 7 µH | ±20% | 2.2 A | 4.1A | Shielded | 55mOhm Max | - | 33MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.500" L x 0.394" W (12.70mm x 10.00mm) | 0.205" (5.20mm) |
|
744393440056FIXED IND 560NH 16A 2.9MOHM SMD Würth Elektronik |
160 |
|
Datasheet |
WE-XHMI | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | 560 nH | ±20% | 16 A | 30.5A | Shielded | 2.9mOhm | - | 110MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.262" L x 0.254" W (6.65mm x 6.45mm) | 0.130" (3.30mm) |
|
7445530FIXED IND 1MH 70MA 13.8 OHM SMD Würth Elektronik |
103 |
|
Datasheet |
WE-PD4 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1 mH | ±20% | 70 mA | 100mA | Unshielded | 13.8Ohm Max | - | 2.2MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.260" L x 0.175" W (6.60mm x 4.45mm) | 0.115" (2.92mm) |
|

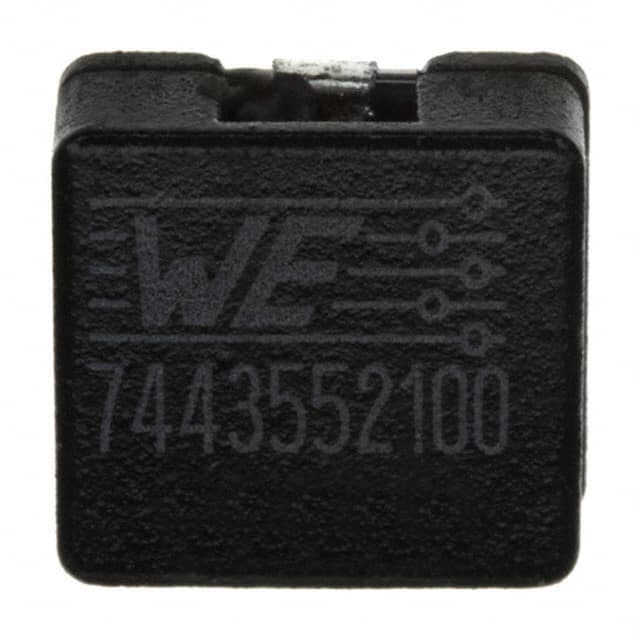

7443552100FIXED IND 1UH 16A 3.3 MOHM SMD Würth Elektronik |
2,610 |
|
Datasheet |
WE-HCI | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 1 µH | ±20% | 16 A | 20A | Shielded | 3.3mOhm | - | 80MHz | AEC-Q200 | -40°C ~ 155°C | 100 kHz | - | Surface Mount | 1040 | 0.413" L x 0.402" W (10.50mm x 10.20mm) | 0.165" (4.20mm) |
|

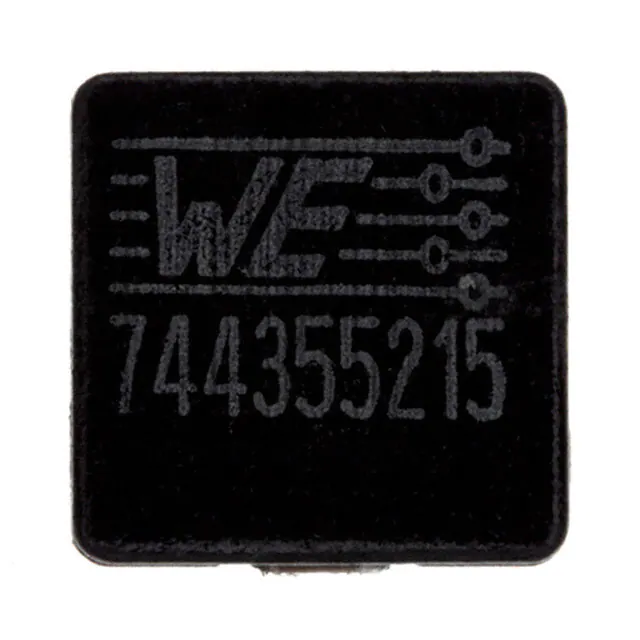

744355215FIXED IND 150NH 25A 0.58MOHM SMD Würth Elektronik |
2,167 |
|
Datasheet |
WE-HCI | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 150 nH | ±20% | 25 A | 60A | Shielded | 0.58mOhm | - | 275MHz | AEC-Q200 | -40°C ~ 155°C | 100 kHz | - | Surface Mount | 1040 | 0.413" L x 0.402" W (10.50mm x 10.20mm) | 0.165" (4.20mm) |
|

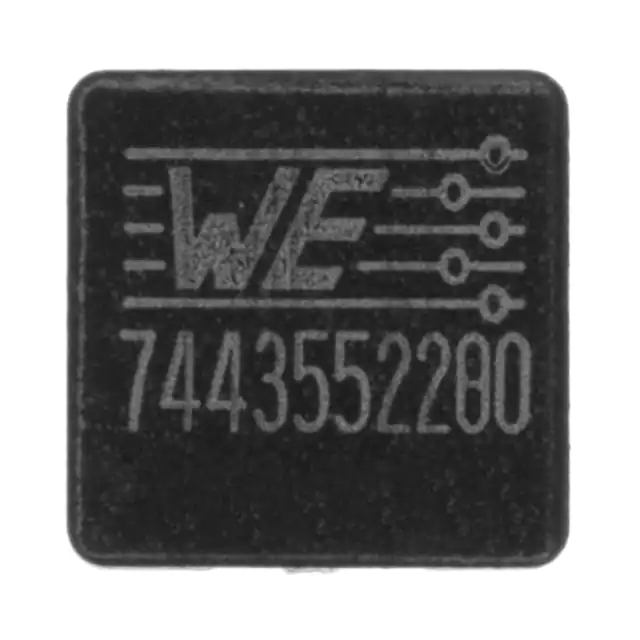

7443552280FIXED IND 2.8UH 9.5A 10.6MOHM SM Würth Elektronik |
618 |
|
Datasheet |
WE-HCI | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 2.8 µH | ±20% | 9.5 A | 11A | Shielded | 10.6mOhm | - | 46MHz | AEC-Q200 | -40°C ~ 155°C | 100 kHz | - | Surface Mount | 1040 | 0.413" L x 0.402" W (10.50mm x 10.20mm) | 0.165" (4.20mm) |
