Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Part Status | Type | Material - Core | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Supplier Device Package | Shielding | DC Resistance (DCR) | Inductance | Q @ Freq | Frequency - Self Resonant | Mounting Style | Ratings | Size / Dimension | Features | Operating Temperature | Inductance Frequency - Test | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
744765087AFIXED IND 8.7NH 480MA 200MOHM SM Würth Elektronik |
3,525 |
|
Datasheet |
WE-KI | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | ±5% | 480 mA | - | 0402 (1005 Metric) | Unshielded | 200mOhm Max | 8.7 nH | 18 @ 250MHz | 4.1GHz | Surface Mount | AEC-Q200 | 0.039" L x 0.022" W (1.00mm x 0.55mm) | - | -40°C ~ 125°C | 250 MHz | 0.024" (0.60mm) |
|
|
744765024AFIXED IND 2.4NH 790MA 68MOHM SMD Würth Elektronik |
3,039 |
|
Datasheet |
WE-KI | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | ±0.2nH | 790 mA | - | 0402 (1005 Metric) | Unshielded | 68mOhm Max | 2.4 nH | 16 @ 250MHz | 6GHz | Surface Mount | AEC-Q200 | 0.039" L x 0.022" W (1.00mm x 0.55mm) | - | -40°C ~ 125°C | 250 MHz | 0.024" (0.60mm) |
|
|
744765119AFIXED IND 19NH 480MA 202MOHM SMD Würth Elektronik |
2,976 |
|
Datasheet |
WE-KI | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | ±5% | 480 mA | - | 0402 (1005 Metric) | Unshielded | 202mOhm Max | 19 nH | 26 @ 250MHz | 3.04GHz | Surface Mount | AEC-Q200 | 0.039" L x 0.022" W (1.00mm x 0.55mm) | - | -40°C ~ 125°C | 250 MHz | 0.024" (0.60mm) |
|
|
744765140AFIXED IND 40NH 320MA 438MOHM SMD Würth Elektronik |
2,884 |
|
Datasheet |
WE-KI | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | ±5% | 320 mA | - | 0402 (1005 Metric) | Unshielded | 438mOhm Max | 40 nH | 26 @ 250MHz | 2.24GHz | Surface Mount | AEC-Q200 | 0.039" L x 0.022" W (1.00mm x 0.55mm) | - | -40°C ~ 125°C | 250 MHz | 0.024" (0.60mm) |
|

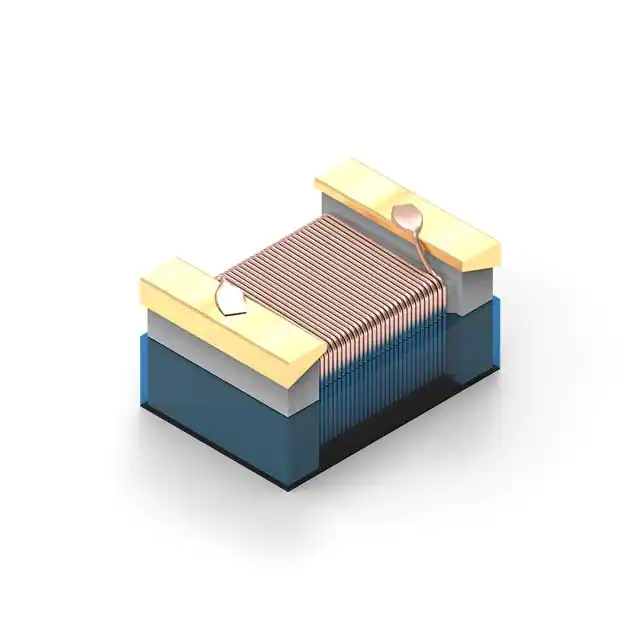

744761256AWE-KI SMT WIRE WOUND CERAMIC IND Würth Elektronik |
2,820 |
|
Datasheet |
WE-KI | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | ±5% | 120 mA | - | 0603 | Unshielded | 2.5Ohm Max | 560 nH | 15 @ 25MHz | 220MHz | Surface Mount | AEC-Q200 | 0.063" L x 0.041" W (1.60mm x 1.05mm) | - | -40°C ~ 125°C | 25 MHz | 0.049" (1.25mm) |
|
|
744765095AFIXED IND 9.5NH 680MA 200MOHM SM Würth Elektronik |
2,701 |
|
Datasheet |
WE-KI | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | ±5% | 680 mA | - | 0402 (1005 Metric) | Unshielded | 200mOhm Max | 9.5 nH | 18 @ 250MHz | 4GHz | Surface Mount | AEC-Q200 | 0.039" L x 0.022" W (1.00mm x 0.55mm) | - | -40°C ~ 125°C | 250 MHz | 0.024" (0.60mm) |
|

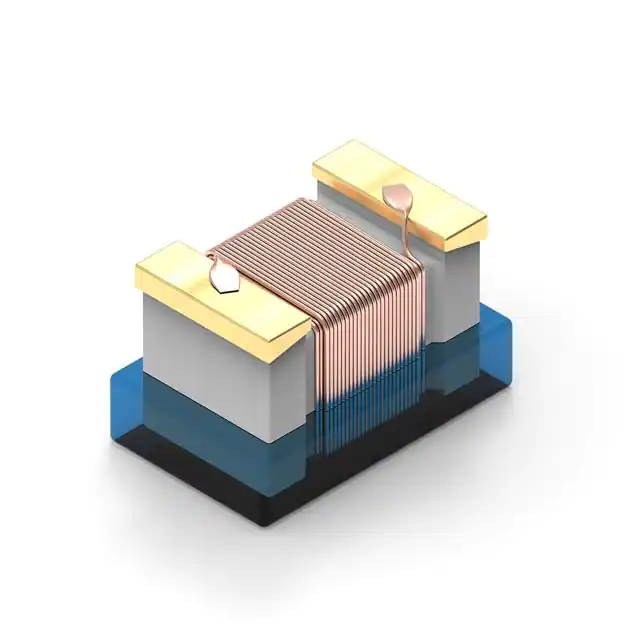

7447603150AWE-KI SMT WIRE WOUND CERAMIC IND Würth Elektronik |
1,875 |
|
Datasheet |
WE-KI | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | ±5% | 160 mA | - | 0805 | Unshielded | 5.88Ohm Max | 1.5 µH | 18 @ 50MHz | 210MHz | Surface Mount | AEC-Q200 | 0.079" L x 0.049" W (2.00mm x 1.25mm) | - | -40°C ~ 125°C | 25 MHz | 0.055" (1.40mm) |
|

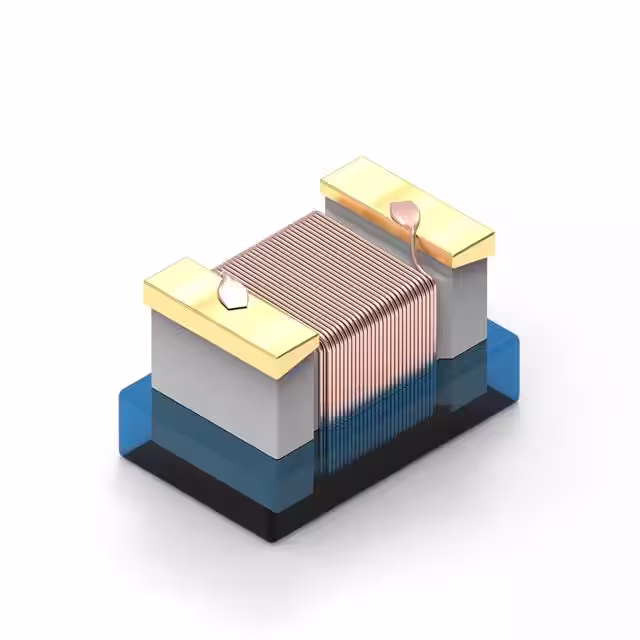

7447603180AWE-KI SMT WIRE WOUND CERAMIC IND Würth Elektronik |
1,723 |
|
Datasheet |
WE-KI | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | ±5% | 140 mA | - | 0805 | Unshielded | 6.26Ohm Max | 1.8 µH | 18 @ 50MHz | 210MHz | Surface Mount | AEC-Q200 | 0.079" L x 0.049" W (2.00mm x 1.25mm) | - | -40°C ~ 125°C | 25 MHz | 0.055" (1.40mm) |
|

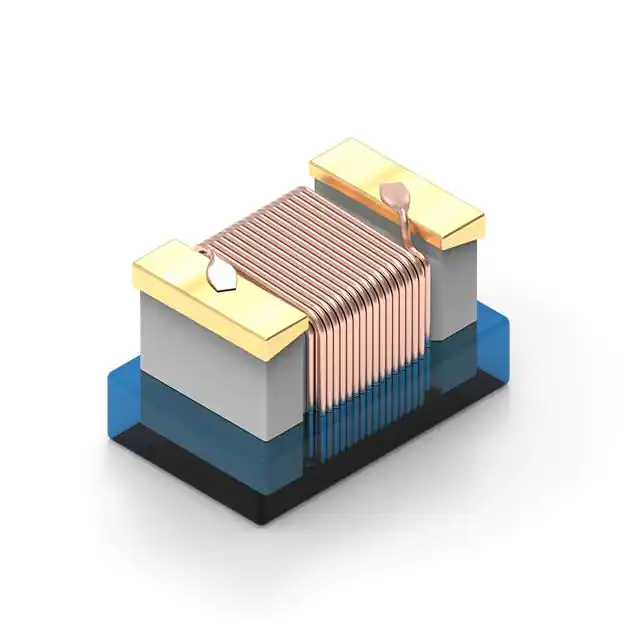

7447602680AWE-KI SMT WIRE WOUND CERAMIC IND Würth Elektronik |
1,686 |
|
Datasheet |
WE-KI | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | ±5% | 400 mA | - | 0805 | Unshielded | 1.2Ohm Max | 680 nH | 15 @ 100MHz | 188MHz | Surface Mount | AEC-Q200 | 0.079" L x 0.049" W (2.00mm x 1.25mm) | - | -40°C ~ 125°C | 25 MHz | 0.055" (1.40mm) |
|

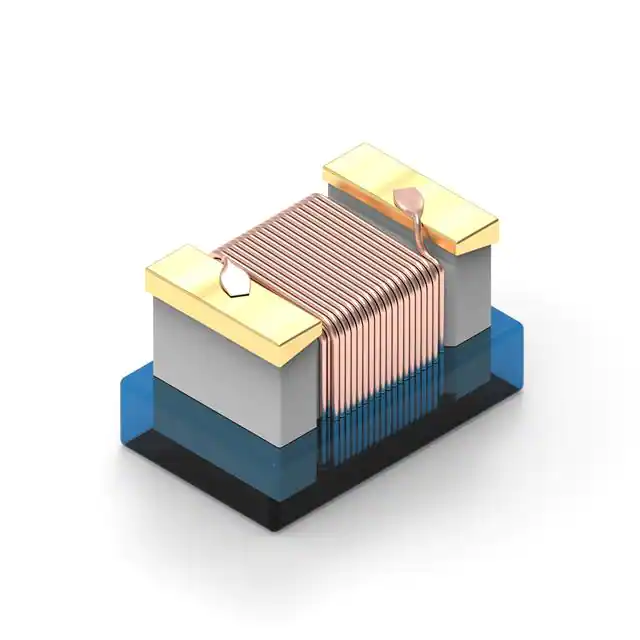

7447602820AWE-KI SMT WIRE WOUND CERAMIC IND Würth Elektronik |
1,240 |
|
Datasheet |
WE-KI | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | ±5% | 300 mA | - | 0805 | Unshielded | 1.5Ohm Max | 820 nH | 15 @ 100MHz | 215MHz | Surface Mount | AEC-Q200 | 0.079" L x 0.049" W (2.00mm x 1.25mm) | - | -40°C ~ 125°C | 25 MHz | 0.055" (1.40mm) |
