Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Part Status | Type | Material - Core | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Supplier Device Package | Shielding | DC Resistance (DCR) | Inductance | Q @ Freq | Frequency - Self Resonant | Mounting Style | Ratings | Size / Dimension | Features | Operating Temperature | Inductance Frequency - Test | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
.jpg)
|
744760356AFIXED IND 5.6UH 160MA 3 OHM SMD Würth Elektronik |
1,820 |
|
Datasheet |
WE-RFI | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±5% | 160 mA | - | 0805 | Unshielded | 3Ohm Max | 5.6 µH | 15 @ 7.96MHz | 45MHz | Surface Mount | - | 0.090" L x 0.067" W (2.29mm x 1.70mm) | - | -40°C ~ 85°C | 7.96 MHz | 0.058" (1.48mm) |
|
|
744760312AFIXED IND 1.2UH 150MA 2.38OHM SM Würth Elektronik |
1,810 |
|
Datasheet |
WE-RFI | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±5% | 150 mA | - | 0805 | Unshielded | 2.38Ohm Max | 1.2 µH | 15 @ 7.96MHz | 200MHz | Surface Mount | - | 0.090" L x 0.067" W (2.29mm x 1.70mm) | - | -40°C ~ 85°C | 7.96 MHz | 0.058" (1.48mm) |
|

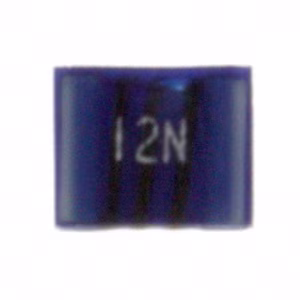

744762112AFIXED IND 12NH 1A 80 MOHM SMD Würth Elektronik |
1,775 |
|
Datasheet |
WE-KI | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | ±5% | 1 A | - | 1008 (2520 Metric) | Unshielded | 80mOhm Max | 12 nH | 60 @ 500MHz | 3.6GHz | Surface Mount | AEC-Q200 | 0.102" L x 0.083" W (2.60mm x 2.10mm) | - | -40°C ~ 125°C | 100 MHz | 0.075" (1.90mm) |
|
744762347AFIXED IND 4.7UH 175MA 4.3OHM SMD Würth Elektronik |
1,675 |
|
Datasheet |
WE-RFI | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±5% | 175 mA | - | 1008 (2520 Metric) | Unshielded | 4.3Ohm Max | 4.7 µH | 20 @ 7.96MHz | 45MHz | Surface Mount | - | 0.102" L x 0.083" W (2.60mm x 2.10mm) | - | -40°C ~ 85°C | 7.96 MHz | 0.075" (1.90mm) |
|
|
744762339AFIXED IND 3.9UH 180MA 4 OHM SMD Würth Elektronik |
1,419 |
|
Datasheet |
WE-RFI | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±5% | 180 mA | - | 1008 (2520 Metric) | Unshielded | 4Ohm Max | 3.9 µH | 20 @ 7.96MHz | 50MHz | Surface Mount | - | 0.102" L x 0.083" W (2.60mm x 2.10mm) | - | -40°C ~ 85°C | 7.96 MHz | 0.075" (1.90mm) |
|
|
744762318AFIXED IND 1.8UH 210MA 2.2OHM SMD Würth Elektronik |
1,360 |
|
Datasheet |
WE-RFI | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±5% | 210 mA | - | 1008 (2520 Metric) | Unshielded | 2.2Ohm Max | 1.8 µH | 20 @ 7.96MHz | 200MHz | Surface Mount | - | 0.102" L x 0.083" W (2.60mm x 2.10mm) | - | -40°C ~ 85°C | 7.96 MHz | 0.075" (1.90mm) |
|

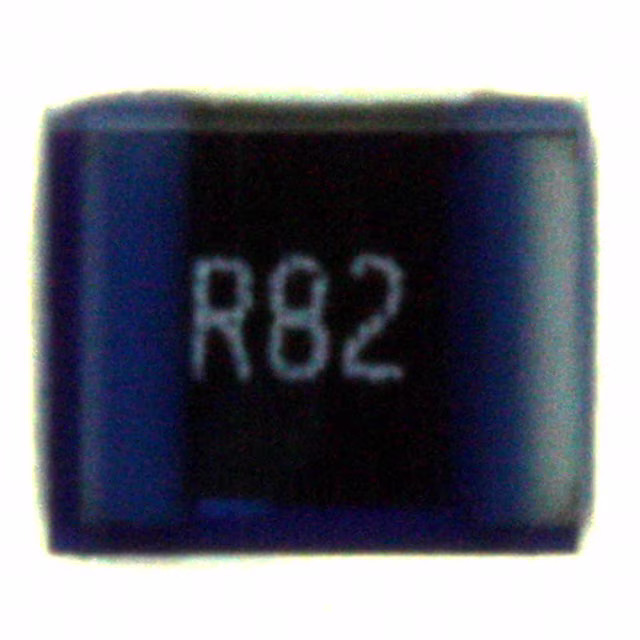

744762282AFIXED IND 820NH 180MA 2.3OHM SMD Würth Elektronik |
1,260 |
|
Datasheet |
WE-KI | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | ±5% | 180 mA | - | 1008 (2520 Metric) | Unshielded | 2.3Ohm Max | 820 nH | 45 @ 100MHz | 350MHz | Surface Mount | AEC-Q200 | 0.102" L x 0.083" W (2.60mm x 2.10mm) | - | -40°C ~ 125°C | 25 MHz | 0.075" (1.90mm) |
|
744758315AFIXED IND 1.5UH 630MA 750MOHM SM Würth Elektronik |
1,176 |
|
Datasheet |
WE-RFH | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±5% | 630 mA | - | 1008 (2520 Metric) | Unshielded | 750mOhm Max | 1.5 µH | 20 @ 7.96MHz | 250MHz | Surface Mount | - | 0.102" L x 0.083" W (2.60mm x 2.10mm) | - | -40°C ~ 85°C | 7.96 MHz | 0.075" (1.90mm) |
|
744762433AFIXED IND 33UH 85MA 6.5 OHM SMD Würth Elektronik |
1,175 |
|
Datasheet |
WE-RFI | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±5% | 85 mA | - | 1008 | Unshielded | 6.5Ohm Max | 33 µH | 15 @ 2.52MHz | 20MHz | Surface Mount | - | 0.098" L x 0.079" W (2.50mm x 2.00mm) | - | -40°C ~ 85°C | 2.52 MHz | 0.071" (1.80mm) |
|
|
744760256AFIXED IND 560NH 450MA 1.1OHM SMD Würth Elektronik |
1,138 |
|
Datasheet |
WE-RFI | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±5% | 450 mA | - | 0805 | Unshielded | 1.1Ohm Max | 560 nH | 45 @ 100MHz | 340MHz | Surface Mount | - | 0.090" L x 0.067" W (2.29mm x 1.70mm) | - | -40°C ~ 85°C | 25.2 MHz | 0.058" (1.48mm) |
