Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Part Status | Type | Material - Core | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Supplier Device Package | Shielding | DC Resistance (DCR) | Inductance | Q @ Freq | Frequency - Self Resonant | Mounting Style | Ratings | Size / Dimension | Features | Operating Temperature | Inductance Frequency - Test | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
784773082FIXED IND 8.2UH 1.5A 146MOHM SMD Würth Elektronik |
1,451 |
|
Datasheet |
WE-PD2A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 1.5 A | 1.8A | 4532 | Unshielded | 146mOhm Max | 8.2 µH | - | 30MHz | Surface Mount | AEC-Q200 | 0.177" L x 0.157" W (4.50mm x 4.00mm) | - | -40°C ~ 125°C | 10 kHz | 0.138" (3.50mm) |
|
|
784773068FIXED IND 6.8UH 1.54A 131MOHM SM Würth Elektronik |
1,450 |
|
Datasheet |
WE-PD2A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 1.54 A | 2.1A | 4532 | Unshielded | 131mOhm Max | 6.8 µH | - | 35MHz | Surface Mount | AEC-Q200 | 0.177" L x 0.157" W (4.50mm x 4.00mm) | - | -40°C ~ 125°C | 10 kHz | 0.138" (3.50mm) |
|
|
784773147FIXED IND 47UH 680MA 844MOHM SMD Würth Elektronik |
1,413 |
|
Datasheet |
WE-PD2A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 680 mA | 770mA | 4532 | Unshielded | 844mOhm Max | 47 µH | - | 12MHz | Surface Mount | AEC-Q200 | 0.177" L x 0.157" W (4.50mm x 4.00mm) | - | -40°C ~ 125°C | 10 kHz | 0.138" (3.50mm) |
|
|
784773018FIXED IND 1.8UH 2.7A 64 MOHM SMD Würth Elektronik |
1,404 |
|
Datasheet |
WE-PD2A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 2.7 A | 3.6A | 4532 | Unshielded | 64mOhm Max | 1.8 µH | - | 85MHz | Surface Mount | AEC-Q200 | 0.177" L x 0.157" W (4.50mm x 4.00mm) | - | -40°C ~ 125°C | 10 kHz | 0.138" (3.50mm) |
|
|
784773118FIXED IND 18UH 1.1A 338 MOHM SMD Würth Elektronik |
1,376 |
|
Datasheet |
WE-PD2A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 1.1 A | 1.29A | 4532 | Unshielded | 338mOhm Max | 18 µH | - | 22MHz | Surface Mount | AEC-Q200 | 0.177" L x 0.157" W (4.50mm x 4.00mm) | - | -40°C ~ 125°C | 10 kHz | 0.138" (3.50mm) |
|

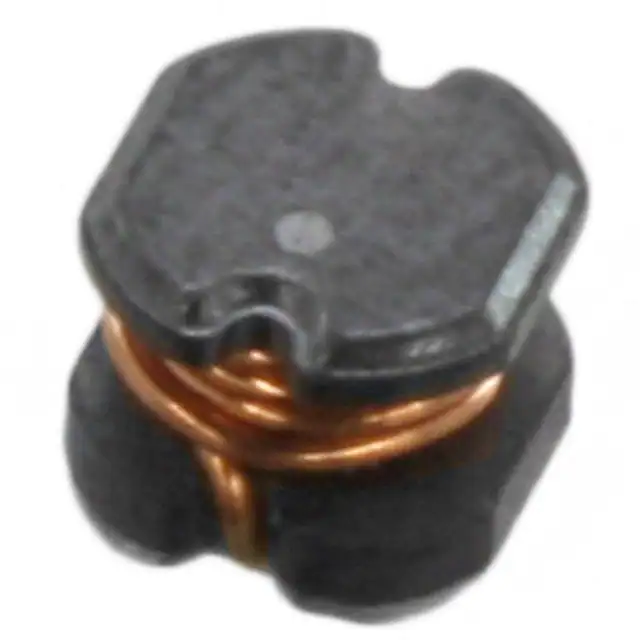

744773014FIXED IND 1.4UH 3.4A 56 MOHM SMD Würth Elektronik |
1,239 |
|
Datasheet |
WE-PD2 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 3.4 A | 5.04A | - | Unshielded | 56mOhm Max | 1.4 µH | - | 103MHz | Surface Mount | - | 0.177" L x 0.157" W (4.50mm x 4.00mm) | - | -40°C ~ 125°C | 10 kHz | 0.138" (3.50mm) |
|
|
784773133FIXED IND 33UH 860MA 540MOHM SMD Würth Elektronik |
1,175 |
|
Datasheet |
WE-PD2A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 860 mA | 900mA | 4532 | Unshielded | 540mOhm Max | 33 µH | - | 16MHz | Surface Mount | AEC-Q200 | 0.177" L x 0.157" W (4.50mm x 4.00mm) | - | -40°C ~ 125°C | 10 kHz | 0.138" (3.50mm) |
|
|
78477310FIXED IND 10UH 1.45A 182MOHM SMD Würth Elektronik |
580 |
|
Datasheet |
WE-PD2A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 1.45 A | 1.74A | 4532 | Unshielded | 182mOhm Max | 10 µH | - | 30MHz | Surface Mount | AEC-Q200 | 0.177" L x 0.157" W (4.50mm x 4.00mm) | - | -40°C ~ 125°C | 10 kHz | 0.138" (3.50mm) |
|
74451247FIXED IND 470UH 190MA 1.8OHM SMD Würth Elektronik |
1,490 |
|
Datasheet |
WE-PD3 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | - | ±20% | 190 mA | 20mA | - | Shielded | 1.8Ohm Max | 470 µH | - | 3MHz | Surface Mount | - | 0.260" L x 0.175" W (6.60mm x 4.45mm) | - | -40°C ~ 125°C | 100 kHz | 0.115" (2.92mm) |
|
784787068WE-PD2SA SMT SHIELDED POWER INDU Würth Elektronik |
1,683 |
|
Datasheet |
WE-PD2SA | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | ±25% | 3 A | 3A | - | Shielded | 33mOhm Max | 6.8 µH | - | 30MHz | Surface Mount | AEC-Q200 | 0.307" L x 0.276" W (7.80mm x 7.00mm) | - | -50°C ~ 150°C | 100 kHz | 0.197" (5.00mm) |
