Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Part Status | Type | Material - Core | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Supplier Device Package | Shielding | DC Resistance (DCR) | Inductance | Q @ Freq | Frequency - Self Resonant | Mounting Style | Ratings | Size / Dimension | Features | Operating Temperature | Inductance Frequency - Test | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
784774182FIXED IND 82UH 600MA 600MOHM SMD Würth Elektronik |
4,143 |
|
Datasheet |
WE-PD2A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 600 mA | 720mA | 5848 | Unshielded | 600mOhm Max | 82 µH | - | 8MHz | Surface Mount | AEC-Q200 | 0.228" L x 0.205" W (5.80mm x 5.20mm) | - | -40°C ~ 125°C | 10 kHz | 0.191" (4.85mm) |
|

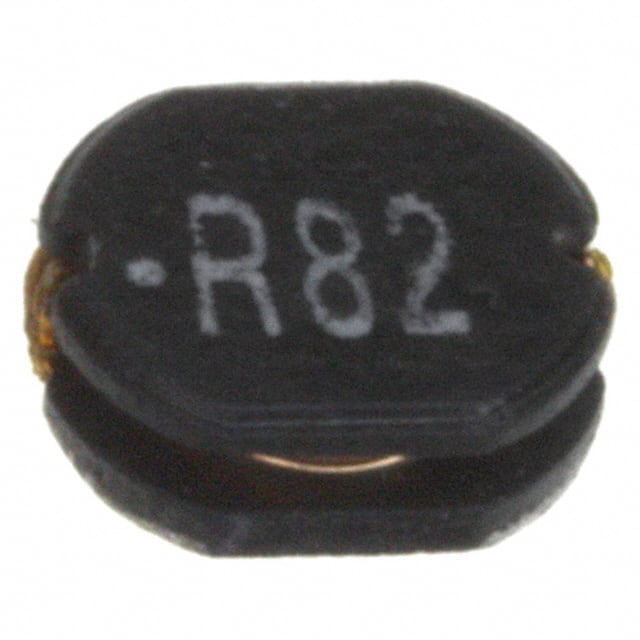

74477450082FIXED IND 820NH 5.4A 14 MOHM SMD Würth Elektronik |
3,035 |
|
Datasheet |
WE-PD2 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 5.4 A | 5.8A | - | Unshielded | 14mOhm Max | 820 nH | - | 120MHz | Surface Mount | - | 0.228" L x 0.205" W (5.80mm x 5.20mm) | - | -40°C ~ 125°C | 100 kHz | 0.091" (2.30mm) |
|
|
784774115FIXED IND 15UH 1.53A 140MOHM SMD Würth Elektronik |
2,988 |
|
Datasheet |
WE-PD2A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 1.53 A | 1.9A | 5848 | Unshielded | 140mOhm Max | 15 µH | - | 20MHz | Surface Mount | AEC-Q200 | 0.228" L x 0.205" W (5.80mm x 5.20mm) | - | -40°C ~ 125°C | 10 kHz | 0.191" (4.85mm) |
|

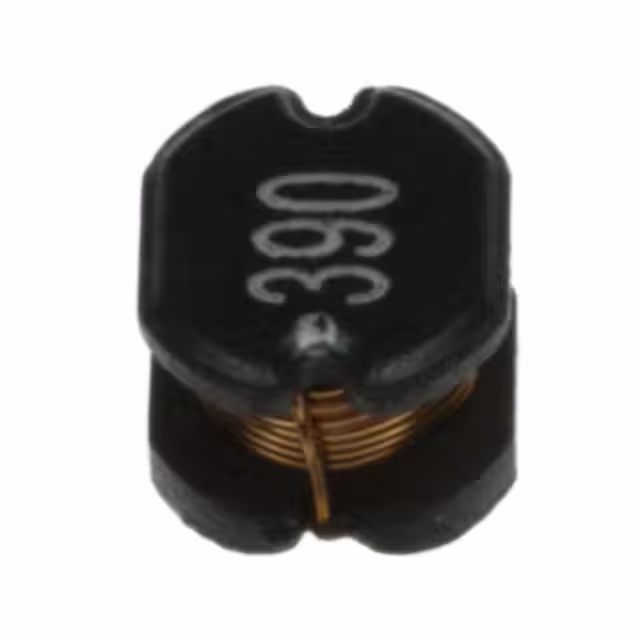

744774139FIXED IND 39UH 940MA 320MOHM SMD Würth Elektronik |
2,355 |
|
Datasheet |
WE-PD2 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±15% | 940 mA | 1.1A | - | Unshielded | 320mOhm Max | 39 µH | - | 12MHz | Surface Mount | - | 0.228" L x 0.205" W (5.80mm x 5.20mm) | - | -40°C ~ 125°C | 10 kHz | 0.191" (4.85mm) |
|
7447745012FIXED IND 1.2UH 4.8A 21 MOHM SMD Würth Elektronik |
1,813 |
|
Datasheet |
WE-PD2 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 4.8 A | 4.6A | - | Unshielded | 21mOhm Max | 1.2 µH | - | 96MHz | Surface Mount | - | 0.228" L x 0.205" W (5.80mm x 5.20mm) | - | -40°C ~ 125°C | 100 kHz | 0.091" (2.30mm) |
|
|
784774068FIXED IND 6.8UH 2.4A 82 MOHM SMD Würth Elektronik |
1,512 |
|
Datasheet |
WE-PD2A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 2.4 A | 4.5A | 5848 | Unshielded | 82mOhm Max | 6.8 µH | - | 28MHz | Surface Mount | AEC-Q200 | 0.228" L x 0.205" W (5.80mm x 5.20mm) | - | -40°C ~ 125°C | 10 kHz | 0.191" (4.85mm) |
|
|
784774118FIXED IND 18UH 1.45A 150MOHM SMD Würth Elektronik |
1,500 |
|
Datasheet |
WE-PD2A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 1.45 A | 1.69A | 5848 | Unshielded | 150mOhm Max | 18 µH | - | 19MHz | Surface Mount | AEC-Q200 | 0.228" L x 0.205" W (5.80mm x 5.20mm) | - | -40°C ~ 125°C | 10 kHz | 0.191" (4.85mm) |
|
|
784774156FIXED IND 56UH 770MA 420MOHM SMD Würth Elektronik |
1,500 |
|
Datasheet |
WE-PD2A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 770 mA | 900mA | 5848 | Unshielded | 420mOhm Max | 56 µH | - | 10MHz | Surface Mount | AEC-Q200 | 0.228" L x 0.205" W (5.80mm x 5.20mm) | - | -40°C ~ 125°C | 10 kHz | 0.191" (4.85mm) |
|
|
784774218FIXED IND 180UH 420MA 1.38OHM SM Würth Elektronik |
1,500 |
|
Datasheet |
WE-PD2A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 420 mA | 500mA | 5848 | Unshielded | 1.38Ohm Max | 180 µH | - | 6MHz | Surface Mount | AEC-Q200 | 0.228" L x 0.205" W (5.80mm x 5.20mm) | - | -40°C ~ 125°C | 10 kHz | 0.191" (4.85mm) |
|
|
784774133FIXED IND 33UH 1.09A 230MOHM SMD Würth Elektronik |
1,494 |
|
Datasheet |
WE-PD2A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 1.09 A | 1.17A | 5848 | Unshielded | 230mOhm Max | 33 µH | - | 14MHz | Surface Mount | AEC-Q200 | 0.228" L x 0.205" W (5.80mm x 5.20mm) | - | -40°C ~ 125°C | 10 kHz | 0.191" (4.85mm) |
