Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Part Status | Type | Material - Core | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Supplier Device Package | Shielding | DC Resistance (DCR) | Inductance | Q @ Freq | Frequency - Self Resonant | Mounting Style | Ratings | Size / Dimension | Features | Operating Temperature | Inductance Frequency - Test | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
78477620FIXED IND 100UH 1.02A 350MOHM SM Würth Elektronik |
500 |
|
Datasheet |
WE-PD2A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 1.02 A | 1.1A | 1054 | Unshielded | 350mOhm Max | 100 µH | - | 7MHz | Surface Mount | AEC-Q200 | 0.394" L x 0.354" W (10.00mm x 9.00mm) | - | -40°C ~ 125°C | 10 kHz | 0.232" (5.90mm) |
|

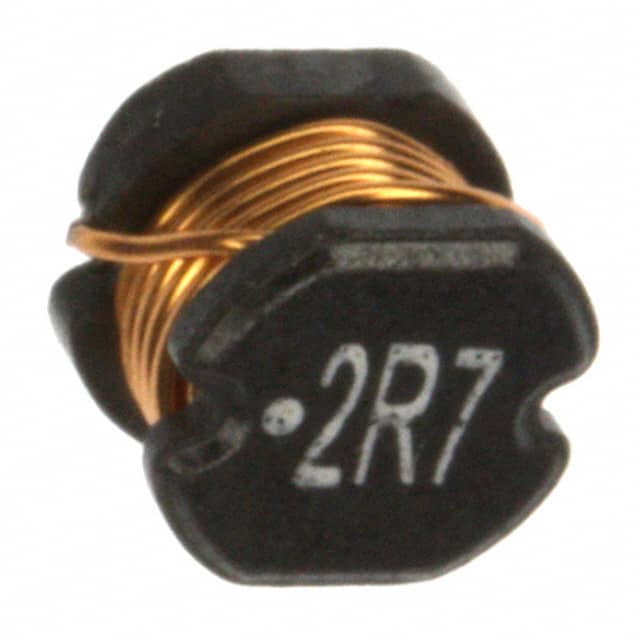

744774027FIXED IND 2.7UH 4A 45 MOHM SMD Würth Elektronik |
376 |
|
Datasheet |
WE-PD2 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 4 A | 8A | - | Unshielded | 45mOhm Max | 2.7 µH | - | 50MHz | Surface Mount | - | 0.228" L x 0.205" W (5.80mm x 5.20mm) | - | -40°C ~ 125°C | 10 kHz | 0.191" (4.85mm) |
|
|
78477510FIXED IND 10UH 2.3A 70 MOHM SMD Würth Elektronik |
363 |
|
Datasheet |
WE-PD2A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 2.3 A | 2.95A | 7850 | Unshielded | 70mOhm Max | 10 µH | - | 23MHz | Surface Mount | AEC-Q200 | 0.307" L x 0.276" W (7.80mm x 7.00mm) | - | -40°C ~ 125°C | 10 kHz | 0.217" (5.50mm) |
|
|
78477520FIXED IND 100UH 770MA 430MOHM SM Würth Elektronik |
248 |
|
Datasheet |
WE-PD2A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 770 mA | 860mA | 7850 | Unshielded | 430mOhm Max | 100 µH | - | 7MHz | Surface Mount | AEC-Q200 | 0.307" L x 0.276" W (7.80mm x 7.00mm) | - | -40°C ~ 125°C | 10 kHz | 0.217" (5.50mm) |
|
744306020FIXED IND 200NH 25A 0.00026OHM Würth Elektronik |
645 |
|
Datasheet |
WE-HCM | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Manganese Zinc Ferrite (MnZn) | ±20% | 25 A | 36.1A | 1052 | Shielded | 0.26mOhm | 200 nH | - | 350MHz | Surface Mount | - | 0.413" L x 0.406" W (10.50mm x 10.30mm) | - | -40°C ~ 125°C | 100 kHz | 0.217" (5.50mm) |
|
|
744306030FIXED IND 300NH 25A 0.00026OHM Würth Elektronik |
475 |
|
Datasheet |
WE-HCM | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Manganese Zinc Ferrite (MnZn) | ±20% | 25 A | 25A | 1052 | Shielded | 0.26mOhm | 300 nH | - | 45MHz | Surface Mount | - | 0.413" L x 0.406" W (10.50mm x 10.30mm) | - | -40°C ~ 125°C | 100 kHz | 0.217" (5.50mm) |
|
744307016FIXED IND 160NH 26A 0.00029OHM Würth Elektronik |
354 |
|
Datasheet |
WE-HCM | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Manganese Zinc Ferrite (MnZn) | ±20% | 26 A | 51.7A | 7070 | Shielded | 0.29mOhm | 160 nH | - | 600MHz | Surface Mount | - | 0.276" L x 0.276" W (7.00mm x 7.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.295" (7.50mm) |
|
744308025FIXED IND 250NH 25A 0.00037OHM Würth Elektronik |
239 |
|
Datasheet |
WE-HCM | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Manganese Zinc Ferrite (MnZn) | ±20% | 25 A | 46.5A | 1070 | Shielded | 0.37mOhm | 250 nH | - | 40MHz | Surface Mount | - | 0.398" L x 0.276" W (10.10mm x 7.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.276" (7.00mm) |
|
7687480182WE-TI HV RADIAL LEADED WIRE WOUN Würth Elektronik |
163 |
|
Datasheet |
WE-TI HV | Radial, Vertical Cylinder | Tray | Active | Wirewound | - | ±5% | 500 mA | 680mA | Radial, Vertical Cylinder | Unshielded | 2.1Ohm Max | 1.8 mH | - | 1.1MHz | Through Hole | - | 0.413" Dia (10.50mm) | - | -40°C ~ 125°C | 10 kHz | 0.571" (14.50mm) |
|
7440700012FIXED IND 1.2UH 4.6A 16.5MOHM SM Würth Elektronik |
1,154 |
|
Datasheet |
WE-TPC | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±30% | 4.6 A | 4.2A | - | Shielded | 16.5mOhm Max | 1.2 µH | - | 150MHz | Surface Mount | - | 0.315" L x 0.315" W (8.00mm x 8.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.079" (2.00mm) |
