Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Part Status | Type | Material - Core | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Supplier Device Package | Shielding | DC Resistance (DCR) | Inductance | Q @ Freq | Frequency - Self Resonant | Mounting Style | Ratings | Size / Dimension | Features | Operating Temperature | Inductance Frequency - Test | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
744777239FIXED IND 390UH 380MA 2.85OHM SM Würth Elektronik |
1,654 |
|
Datasheet |
WE-PD | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 380 mA | 420mA | 7345 | Shielded | 2.85Ohm Max | 390 µH | - | 3.8MHz | Surface Mount | AEC-Q200 | 0.287" L x 0.287" W (7.30mm x 7.30mm) | - | -40°C ~ 125°C | 1 kHz | 0.177" (4.50mm) |
|

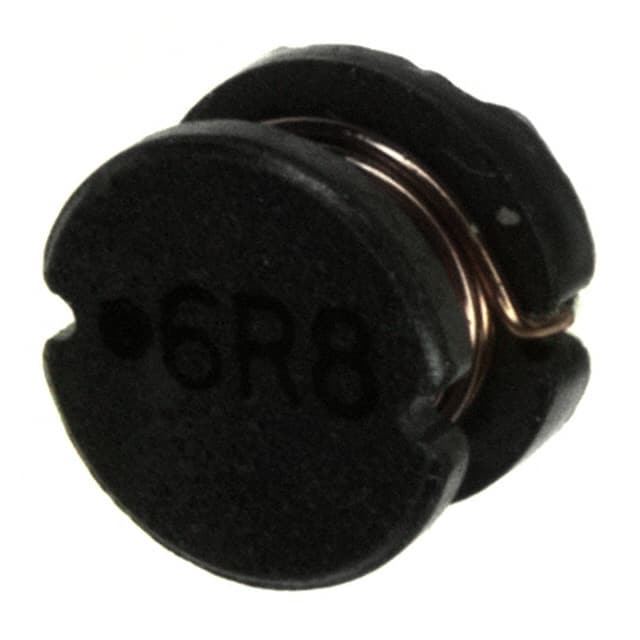

744775068AFIXED IND 6.8UH 3.2A 40 MOHM SMD Würth Elektronik |
1,536 |
|
Datasheet |
WE-PD2 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 3.2 A | - | - | Unshielded | 40mOhm Max | 6.8 µH | 30 @ 7.96MHz | 33MHz | Surface Mount | - | 0.295" L x 0.295" W (7.50mm x 7.50mm) | - | -40°C ~ 125°C | 1 kHz | 0.197" (5.00mm) |
|
74477120WFIXED IND 100UH 1.5A 180MOHM SMD Würth Elektronik |
1,467 |
|
Datasheet |
WE-PDW | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 1.5 A | 1.7A | - | Shielded | 180mOhm Max | 100 µH | - | 4.9MHz | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.256" (6.50mm) |
|

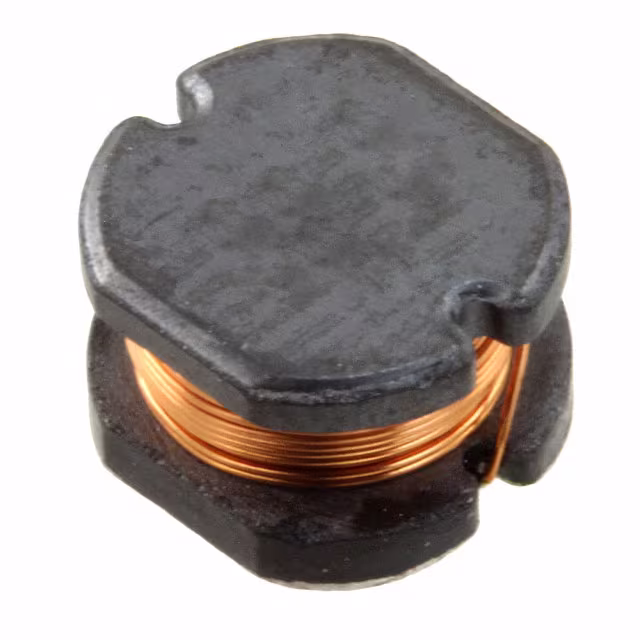

744775247FIXED IND 470UH 360MA 1.96OHM SM Würth Elektronik |
989 |
|
Datasheet |
WE-PD2 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±10% | 360 mA | 380mA | - | Unshielded | 1.96Ohm Max | 470 µH | - | 3.4MHz | Surface Mount | - | 0.307" L x 0.276" W (7.80mm x 7.00mm) | - | -40°C ~ 125°C | 10 kHz | 0.217" (5.50mm) |
|
74477125FIXED IND 560UH 620MA 860MOHM SM Würth Elektronik |
867 |
|
Datasheet |
WE-PD | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 620 mA | 700mA | - | Shielded | 860mOhm Max | 560 µH | - | 2.5MHz | Surface Mount | AEC-Q200 | 0.472" L x 0.472" W (12.00mm x 12.00mm) | - | -40°C ~ 125°C | 1 kHz | 0.236" (6.00mm) |
|

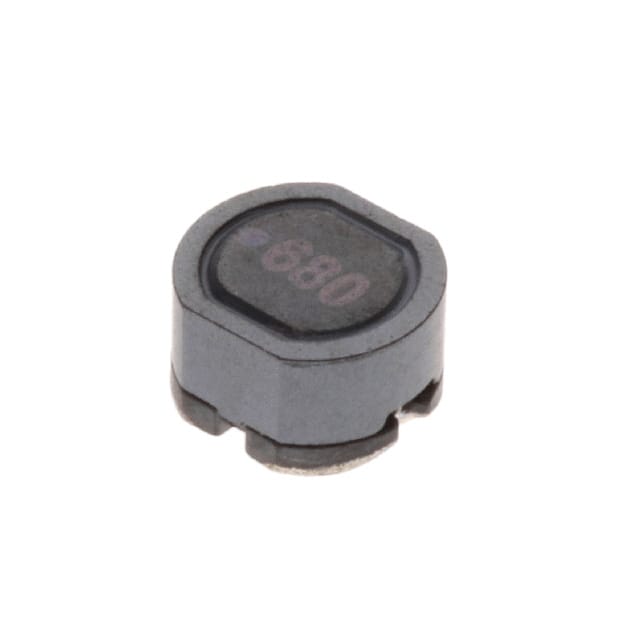

784787680FIXED IND 68UH 1.12A 290MOHM SMD Würth Elektronik |
741 |
|
Datasheet |
WE-PD2SA | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | ±25% | 1.12 A | 1A | - | Shielded | 290mOhm Max | 68 µH | - | 7.5MHz | Surface Mount | AEC-Q200 | 0.307" L x 0.276" W (7.80mm x 7.00mm) | - | -50°C ~ 150°C | 100 kHz | 0.197" (5.00mm) |
|

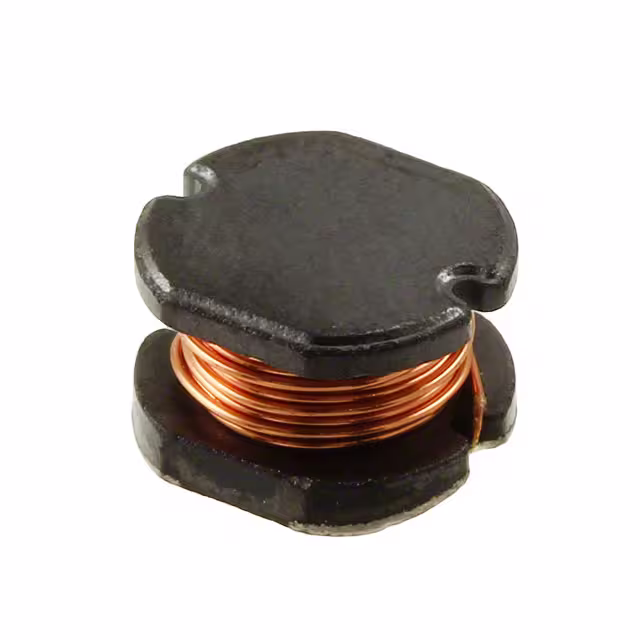

744775210FIXED IND 120UH 670MA 470MOHM SM Würth Elektronik |
620 |
|
Datasheet |
WE-PD2 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±10% | 670 mA | 810mA | - | Unshielded | 470mOhm Max | 120 µH | - | 7MHz | Surface Mount | - | 0.307" L x 0.276" W (7.80mm x 7.00mm) | - | -40°C ~ 125°C | 10 kHz | 0.217" (5.50mm) |
|
|
744771001FIXED IND 1.5UH 10.5A 6 MOHM SMD Würth Elektronik |
618 |
|
Datasheet |
WE-PD | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 10.5 A | 12.5A | - | Shielded | 6mOhm Max | 1.5 µH | - | 60MHz | Surface Mount | AEC-Q200 | 0.472" L x 0.472" W (12.00mm x 12.00mm) | - | -40°C ~ 125°C | 1 kHz | 0.236" (6.00mm) |
|
744775127FIXED IND 27UH 1.48A 120MOHM SMD Würth Elektronik |
500 |
|
Datasheet |
WE-PD2 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±10% | 1.48 A | 1.62A | - | Unshielded | 120mOhm Max | 27 µH | - | 15.5MHz | Surface Mount | - | 0.307" L x 0.276" W (7.80mm x 7.00mm) | - | -40°C ~ 125°C | 10 kHz | 0.217" (5.50mm) |
|
784775068FIXED IND 6.8UH 3.7A 26 MOHM SMD Würth Elektronik |
500 |
|
Datasheet |
WE-PD2A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 3.7 A | 3.8A | 7850 | Unshielded | 26mOhm Max | 6.8 µH | - | 30MHz | Surface Mount | AEC-Q200 | 0.307" L x 0.276" W (7.80mm x 7.00mm) | - | -40°C ~ 125°C | 10 kHz | 0.217" (5.50mm) |
