Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Part Status | Type | Material - Core | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Supplier Device Package | Shielding | DC Resistance (DCR) | Inductance | Q @ Freq | Frequency - Self Resonant | Mounting Style | Ratings | Size / Dimension | Features | Operating Temperature | Inductance Frequency - Test | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
784775133FIXED IND 33UH 1.35A 130MOHM SMD Würth Elektronik |
500 |
|
Datasheet |
WE-PD2A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 1.35 A | 1.47A | 7850 | Unshielded | 130mOhm Max | 33 µH | - | 13MHz | Surface Mount | AEC-Q200 | 0.307" L x 0.276" W (7.80mm x 7.00mm) | - | -40°C ~ 125°C | 10 kHz | 0.217" (5.50mm) |
|
|
784775139FIXED IND 39UH 1.25A 160MOHM SMD Würth Elektronik |
500 |
|
Datasheet |
WE-PD2A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 1.25 A | 1.33A | 7850 | Unshielded | 160mOhm Max | 39 µH | - | 12MHz | Surface Mount | AEC-Q200 | 0.307" L x 0.276" W (7.80mm x 7.00mm) | - | -40°C ~ 125°C | 10 kHz | 0.217" (5.50mm) |
|
|
784775147FIXED IND 47UH 1.17A 180MOHM SMD Würth Elektronik |
500 |
|
Datasheet |
WE-PD2A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 1.17 A | 1.24A | 7850 | Unshielded | 180mOhm Max | 47 µH | - | 10MHz | Surface Mount | AEC-Q200 | 0.307" L x 0.276" W (7.80mm x 7.00mm) | - | -40°C ~ 125°C | 10 kHz | 0.217" (5.50mm) |
|
|
784775222FIXED IND 220UH 510MA 960MOHM SM Würth Elektronik |
500 |
|
Datasheet |
WE-PD2A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 510 mA | 560mA | 7850 | Unshielded | 960mOhm Max | 220 µH | - | 5MHz | Surface Mount | AEC-Q200 | 0.307" L x 0.276" W (7.80mm x 7.00mm) | - | -40°C ~ 125°C | 10 kHz | 0.217" (5.50mm) |
|
|
784775247FIXED IND 470UH 360MA 1.96OHM SM Würth Elektronik |
500 |
|
Datasheet |
WE-PD2A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 360 mA | 380mA | 7850 | Unshielded | 1.96Ohm Max | 470 µH | - | 3MHz | Surface Mount | AEC-Q200 | 0.307" L x 0.276" W (7.80mm x 7.00mm) | - | -40°C ~ 125°C | 10 kHz | 0.217" (5.50mm) |
|

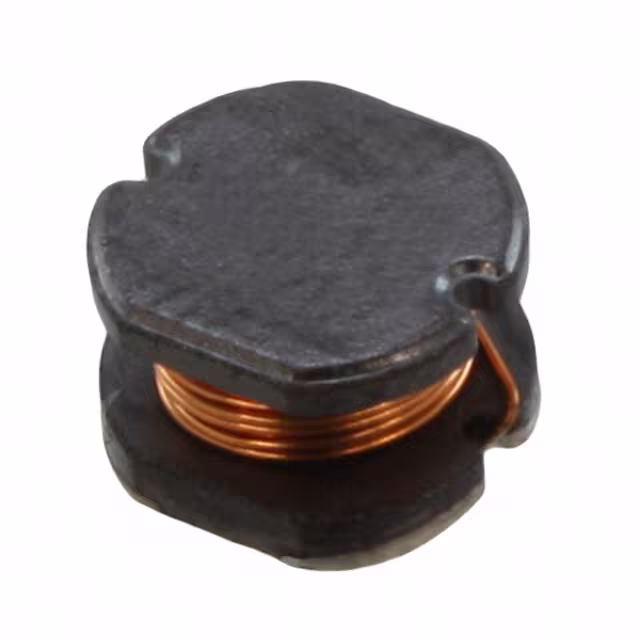

744775215FIXED IND 150UH 600MA 640MOHM SM Würth Elektronik |
498 |
|
Datasheet |
WE-PD2 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±10% | 600 mA | 710mA | - | Unshielded | 640mOhm Max | 150 µH | - | 6.2MHz | Surface Mount | - | 0.307" L x 0.276" W (7.80mm x 7.00mm) | - | -40°C ~ 125°C | 10 kHz | 0.217" (5.50mm) |
|
|
784775056FIXED IND 5.6UH 4A 22 MOHM SMD Würth Elektronik |
495 |
|
Datasheet |
WE-PD2A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 4 A | 4A | 7850 | Unshielded | 22mOhm Max | 5.6 µH | - | 34MHz | Surface Mount | AEC-Q200 | 0.307" L x 0.276" W (7.80mm x 7.00mm) | - | -40°C ~ 125°C | 10 kHz | 0.217" (5.50mm) |
|
|
784775047FIXED IND 4.7UH 4.5A 19 MOHM SMD Würth Elektronik |
494 |
|
Datasheet |
WE-PD2A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 4.5 A | 4.5A | 7850 | Unshielded | 19mOhm Max | 4.7 µH | - | 47MHz | Surface Mount | AEC-Q200 | 0.307" L x 0.276" W (7.80mm x 7.00mm) | - | -40°C ~ 125°C | 10 kHz | 0.217" (5.50mm) |
|
|
784775227FIXED IND 270UH 470MA 1.11OHM SM Würth Elektronik |
493 |
|
Datasheet |
WE-PD2A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 470 mA | 510mA | 7850 | Unshielded | 1.11Ohm Max | 270 µH | - | 4MHz | Surface Mount | AEC-Q200 | 0.307" L x 0.276" W (7.80mm x 7.00mm) | - | -40°C ~ 125°C | 10 kHz | 0.217" (5.50mm) |
|
|
784775112FIXED IND 12UH 2.18A 80 MOHM SMD Würth Elektronik |
485 |
|
Datasheet |
WE-PD2A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 2.18 A | 2.23A | 7850 | Unshielded | 80mOhm Max | 12 µH | - | 20MHz | Surface Mount | AEC-Q200 | 0.307" L x 0.276" W (7.80mm x 7.00mm) | - | -40°C ~ 125°C | 10 kHz | 0.217" (5.50mm) |
