Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
74437429203151FIXED IND 150UH 8.4A 38.85 MOHM Würth Elektronik |
39 |
|
Datasheet |
WE-HCF | Nonstandard | Tray | Active | Drum Core, Wirewound | Manganese Zinc Ferrite (MnZn) | 150 µH | ±20% | 8.4 A | 7.8A | Shielded | 38.85mOhm | - | 3.8MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 2920 | 1.102" L x 0.984" W (28.00mm x 25.00mm) | 0.807" (20.50mm) |
|

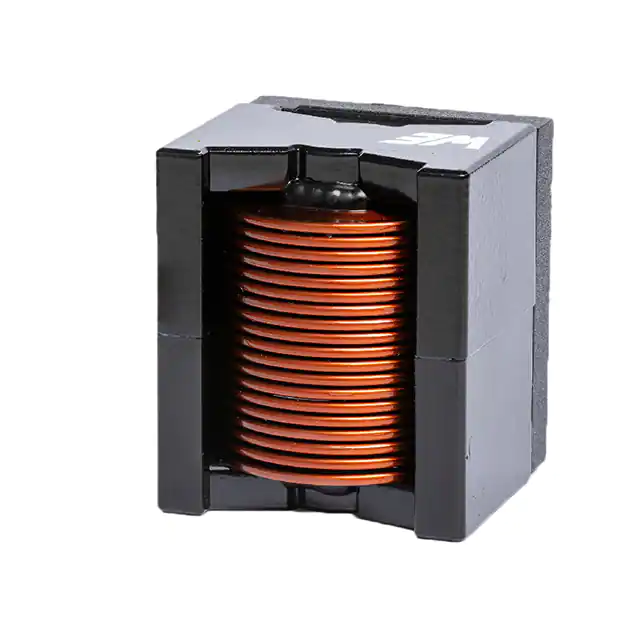

7443763540470FIXED IND 47UH 32A 6.38 MOHM TH Würth Elektronik |
44 |
|
Datasheet |
WE-HCFT | Nonstandard | Tray | Active | Drum Core, Wirewound | Manganese Zinc Ferrite (MnZn) | 47 µH | ±20% | 32 A | 31A | Shielded | 6.38mOhm Max | - | 6MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Through Hole | - | 1.614" L x 1.417" W (41.00mm x 36.00mm) | 1.378" (35.00mm) |
|

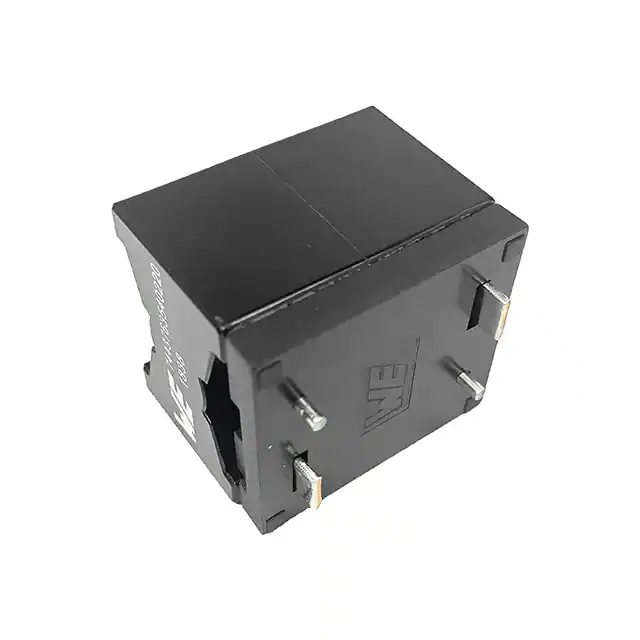

7443763540220FIXED IND 22UH 40.6A 3.2 MOHM TH Würth Elektronik |
12 |
|
Datasheet |
WE-HCFT | Nonstandard | Tray | Active | Drum Core, Wirewound | Manganese Zinc Ferrite (MnZn) | 22 µH | ±20% | 40.6 A | 42A | Shielded | 3.2mOhm Max | - | 9MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Through Hole | - | 1.614" L x 1.417" W (41.00mm x 36.00mm) | 1.378" (35.00mm) |
|
744766910FIXED IND 10UH 825MA 420MOHM SMD Würth Elektronik |
670 |
|
Datasheet |
WE-GFH | 1812 (4532 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 10 µH | ±10% | 825 mA | - | Unshielded | 500mOhm Max | 25 @ 2.52MHz | 29MHz | - | -40°C ~ 125°C | 2.52 MHz | - | Surface Mount | 4532 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.134" (3.40mm) |
|
|
7447669147FIXED IND 47UH 425MA 1.54OHM SMD Würth Elektronik |
500 |
|
Datasheet |
WE-GFH | 1812 (4532 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 47 µH | ±10% | 425 mA | - | Unshielded | 1.9Ohm Max | 30 @ 2.52MHz | 14MHz | - | -40°C ~ 125°C | 2.52 MHz | - | Surface Mount | 4532 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.134" (3.40mm) |
|
744765047AFIXED IND 4.7NH 640MA 130MOHM SM Würth Elektronik |
618 |
|
Datasheet |
WE-KI | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 4.7 nH | ±5% | 640 mA | - | Unshielded | 130mOhm Max | 15 @ 250MHz | 4.775GHz | AEC-Q200 | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.022" W (1.00mm x 0.55mm) | 0.024" (0.60mm) |
|
74476404FIXED IND 4.7UH 220MA 1.5OHM SMD Würth Elektronik |
1,157 |
|
Datasheet |
WE-GF | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 4.7 µH | ±10% | 220 mA | - | Unshielded | 1.5Ohm Max | 30 @ 7.96MHz | 45MHz | - | -40°C ~ 105°C | 7.96 MHz | - | Surface Mount | 3225 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.094" (2.40mm) |
|
744032006FIXED IND 6.8UH 420MA 400MOHM SM Würth Elektronik |
428 |
|
Datasheet |
WE-LQ | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 6.8 µH | ±20% | 420 mA | 1.1A | Unshielded | 400mOhm Max | 20 @ 1MHz | 25MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.091" (2.30mm) |
|
7447720470FIXED IND 47UH 2A 120 MOHM TH Würth Elektronik |
285 |
|
Datasheet |
WE-TI | Radial, Vertical Cylinder | Tray | Active | Wirewound | - | 47 µH | ±10% | 2 A | 2.3A | Unshielded | 120mOhm Max | - | 9.1MHz | - | -40°C ~ 125°C | 100 kHz | - | Through Hole | - | 0.307" Dia (7.80mm) | 0.394" (10.00mm) |
|
|
7447720330FIXED IND 33UH 2.5A 66 MOHM TH Würth Elektronik |
179 |
|
Datasheet |
WE-TI | Radial, Vertical Cylinder | Tray | Active | Wirewound | - | 33 µH | ±10% | 2.5 A | 2.7A | Unshielded | 66mOhm Max | - | 11MHz | - | -40°C ~ 125°C | 100 kHz | - | Through Hole | - | 0.307" Dia (7.80mm) | 0.394" (10.00mm) |
