Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

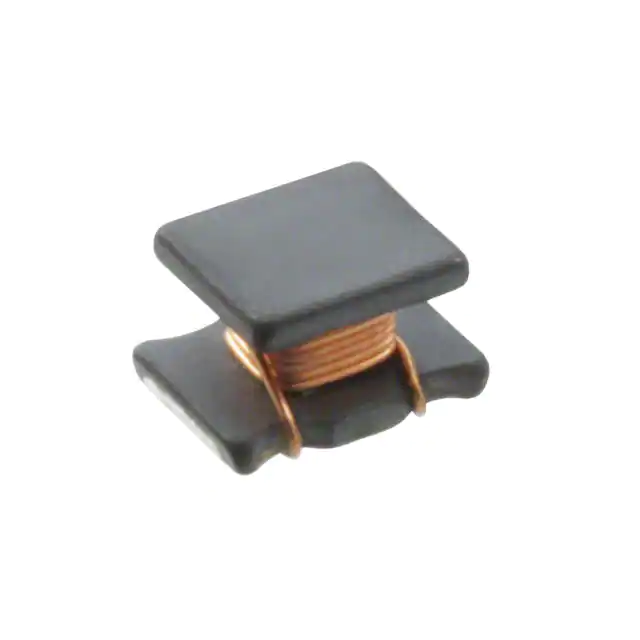

744045001FIXED IND 1UH 1.8A 80 MOHM SMD Würth Elektronik |
116 |
|
Datasheet |
WE-LQ | 1812 (4532 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1 µH | ±20% | 1.8 A | 4.4A | Unshielded | 80mOhm Max | 40 @ 1MHz | 165MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.114" (2.90mm) |
|
74479763210AFIXED IND 1UH 900MA 250 MOHM SMD Würth Elektronik |
652 |
|
Datasheet |
WE-PMI | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Multilayer | - | 1 µH | ±20% | 900 mA | 650mA | Unshielded | 250mOhm Max | 12 @ 1MHz | 120MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 0603 | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.039" (1.00mm) |
|
7447720200WE-TI RADIAL LEADED WIRE WOUND I Würth Elektronik |
64 |
|
Datasheet |
WE-TI | Radial, Vertical Cylinder | Tray | Active | Wirewound | Nickel Zinc Ferrite (NiZn) | 20 µH | ±10% | 3.1 A | 3.5A | Unshielded | 54mOhm Max | - | 15MHz | - | -40°C ~ 125°C | 100 kHz | - | Through Hole | Radial, Vertical Cylinder | 0.307" Dia (7.80mm) | 0.394" (10.00mm) |
|

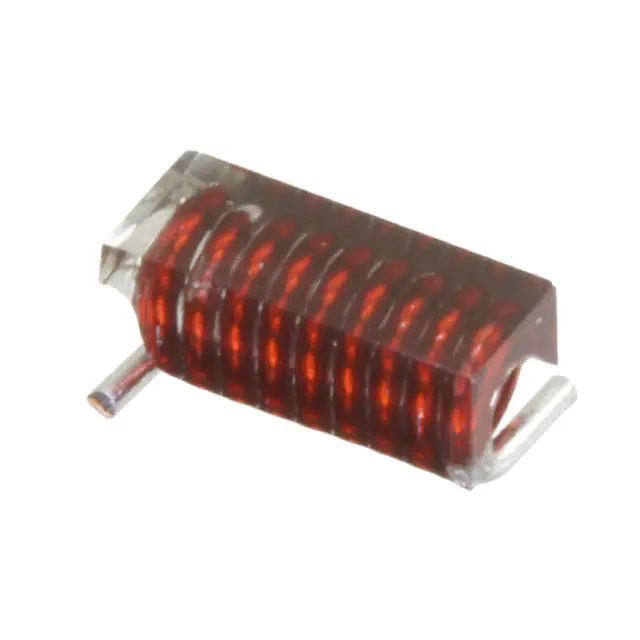

744914135FIXED IND 35.5NH 4A 6.8 MOHM SMD Würth Elektronik |
958 |
|
Datasheet |
WE-CAIR | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Air | 35.5 nH | ±5% | 4 A | - | Unshielded | 6.8mOhm Max | 112 @ 150MHz | 1.5GHz | AEC-Q200 | -40°C ~ 125°C | 150 MHz | - | Surface Mount | - | 0.270" L x 0.120" W (6.86mm x 3.05mm) | 0.125" (3.18mm) |
|
|
744045470WE-LQ SMT INDUCTOR SIZE 1812; L Würth Elektronik |
1,395 |
|
Datasheet |
WE-LQ | 1812 (4532 Metric) | Tape & Reel (TR) | Active | Wirewound | - | 47 µH | ±10% | 390 mA | 730mA | Unshielded | 1.5Ohm Max | 55 @ 1MHz | 16MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.114" (2.90mm) |
|
7447462022FIXED IND 2.2UH 6.3A 20 MOHM TH Würth Elektronik |
552 |
|
Datasheet |
WE-TI | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 2.2 µH | ±20% | 6.3 A | 4.3A | Unshielded | 20mOhm Max | - | 65MHz | - | -40°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.236" Dia (6.00mm) | 0.335" (8.50mm) |
|
|
7447462471FIXED IND 470UH 350MA 2.4 OHM TH Würth Elektronik |
249 |
|
Datasheet |
WE-TI | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 470 µH | ±10% | 350 mA | 400mA | Unshielded | 2.4Ohm Max | - | 2.9MHz | - | -40°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.236" Dia (6.00mm) | 0.335" (8.50mm) |
|
|
7447462221FIXED IND 220UH 500MA 1.2 OHM TH Würth Elektronik |
83 |
|
Datasheet |
WE-TI | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 220 µH | ±10% | 500 mA | 500mA | Unshielded | 1.2Ohm Max | - | 4.2MHz | - | -40°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.236" Dia (6.00mm) | 0.335" (8.50mm) |
|
74406032100FIXED IND 10UH 940MA 228MOHM SMD Würth Elektronik |
970 |
|
Datasheet |
WE-LQFS | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 940 mA | 750mA | Shielded | 228mOhm Max | - | 66MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 3818 | 0.150" L x 0.150" W (3.80mm x 3.80mm) | 0.079" (2.00mm) |
|
|
74406032010FIXED IND 1UH 2.5A 31 MOHM SMD Würth Elektronik |
566 |
|
Datasheet |
WE-LQFS | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1 µH | ±30% | 2.5 A | 2.15A | Shielded | 31mOhm Max | - | 264MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 3818 | 0.150" L x 0.150" W (3.80mm x 3.80mm) | 0.079" (2.00mm) |
