Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

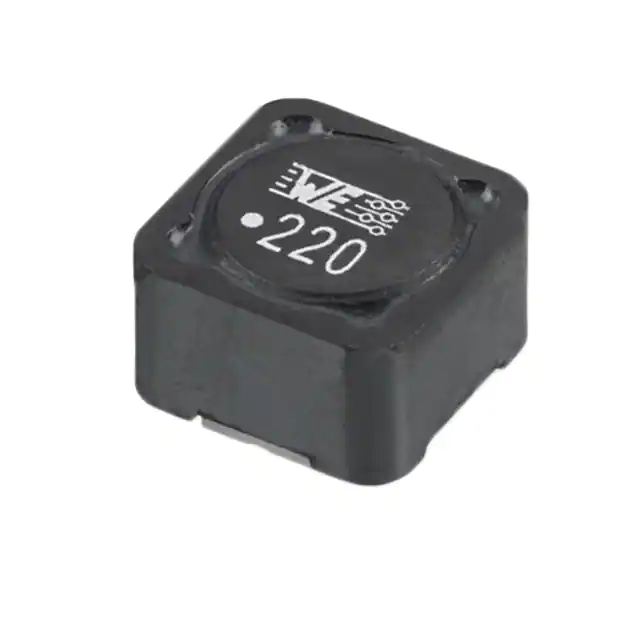

7447709222FIXED IND 2.2MH 530MA 3.75OHM SM Würth Elektronik |
78 |
|
Datasheet |
WE-PD | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 2.2 mH | ±20% | 530 mA | 750mA | Shielded | 3.75Ohm Max | - | 660kHz | AEC-Q200 | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.394" (10.00mm) |
|
744373965022FIXED IND 2.2UH 17A 0.0042OHM SM Würth Elektronik |
27 |
|
Datasheet |
WE-LHMI | 2-SMD | Tape & Reel (TR) | Active | Molded | Iron Powder | 2.2 µH | ±20% | 17 A | 41.1A | Shielded | 4.2mOhm Max | - | 21.6MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 1365 | 0.551" L x 0.504" W (14.00mm x 12.80mm) | 0.256" (6.50mm) |
|

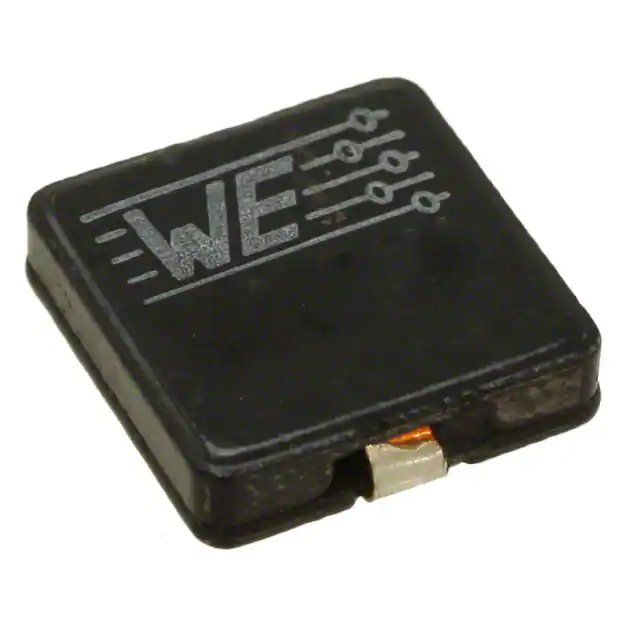

744313220FIXED IND 2.2UH 14A 5.7 MOHM SMD Würth Elektronik |
53 |
|
Datasheet |
WE-HCI | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 2.2 µH | ±20% | 14 A | 18A | Shielded | 5.7mOhm | - | 40MHz | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | 1335 | 0.512" L x 0.504" W (13.00mm x 12.80mm) | 0.138" (3.50mm) |
|

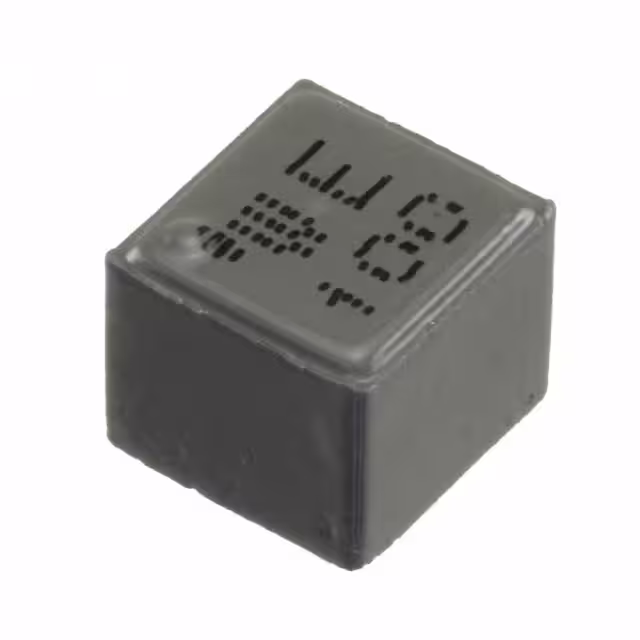

74439358100FIXED IND 10UH 5.8A 20 MOHM SMD Würth Elektronik |
46 |
|
Datasheet |
WE-XHMI | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | 10 µH | ±20% | 5.8 A | 13A | Shielded | 20mOhm | - | 17MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 8080 | 0.346" L x 0.327" W (8.80mm x 8.30mm) | 0.346" (8.80mm) |
|
74439370220FIXED IND 22UH 8A 13.3 MOHM SMD Würth Elektronik |
49 |
|
Datasheet |
WE-XHMI | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | 22 µH | ±20% | 8 A | 24A | Shielded | 13.3mOhm | - | 4.5MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.646" L x 0.606" W (16.40mm x 15.40mm) | 0.394" (10.00mm) |
|
7443630550FIXED IND 5.5UH 22A 4 MOHM SMD Würth Elektronik |
112 |
|
Datasheet |
WE-HCF | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Manganese Zinc Ferrite (MnZn) | 5.5 µH | ±15% | 22 A | 33A | Shielded | 4mOhm | - | 21MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.846" L x 0.827" W (21.50mm x 21.00mm) | 0.551" (14.00mm) |
|
|
7443630140FIXED IND 1.4UH 31.5A 1.08 MOHM Würth Elektronik |
98 |
|
Datasheet |
WE-HCF | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Manganese Zinc Ferrite (MnZn) | 1.4 µH | ±15% | 31.5 A | 60A | Shielded | 1.08mOhm | - | 52MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.846" L x 0.827" W (21.50mm x 21.00mm) | 0.551" (14.00mm) |
|
|
7443630420FIXED IND 4.2UH 24A 3.04MOHM SMD Würth Elektronik |
75 |
|
Datasheet |
WE-HCF | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Manganese Zinc Ferrite (MnZn) | 4.2 µH | ±15% | 24 A | 38A | Shielded | 3.04mOhm | - | 24MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.846" L x 0.827" W (21.50mm x 21.00mm) | 0.551" (14.00mm) |
|
74436410470FIXED IND 4.7UH 36A 1.441MOHM SM Würth Elektronik |
99 |
|
Datasheet |
WE-HCF | Nonstandard | Tray | Active | Drum Core, Wirewound | Manganese Zinc Ferrite (MnZn) | 4.7 µH | ±15% | 36 A | 44A | Shielded | 1.441mOhm Max | - | 21.56MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 2815 | 1.102" L x 0.764" W (28.00mm x 19.40mm) | 0.606" (15.40mm) |
|
|
74436412200FIXED IND 22UH 36A 1.441MOHM SMD Würth Elektronik |
72 |
|
Datasheet |
WE-HCF | Nonstandard | Tray | Active | Drum Core, Wirewound | Manganese Zinc Ferrite (MnZn) | 22 µH | ±15% | 36 A | 9.5A | Shielded | 1.441mOhm Max | - | 8.06MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 2815 | 1.102" L x 0.764" W (28.00mm x 19.40mm) | 0.606" (15.40mm) |
