Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Part Status | Type | Material - Core | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Supplier Device Package | Shielding | DC Resistance (DCR) | Inductance | Q @ Freq | Frequency - Self Resonant | Mounting Style | Ratings | Size / Dimension | Features | Operating Temperature | Inductance Frequency - Test | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

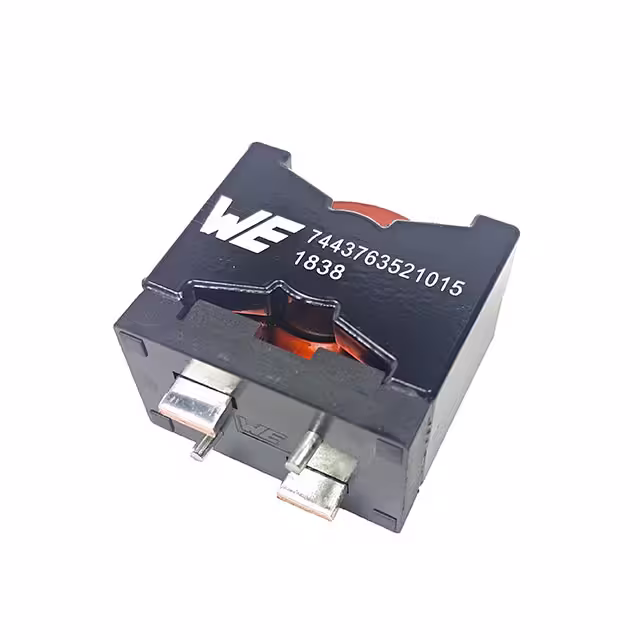

7443763521015FIXED IND 1.5UH 75A 0.4 MOHM TH Würth Elektronik |
73 |
|
Datasheet |
WE-HCFT | Nonstandard | Tray | Active | Drum Core, Wirewound | Manganese Zinc Ferrite (MnZn) | ±20% | 75 A | 125A | - | Shielded | 0.4mOhm Max | 1.5 µH | - | 37MHz | Through Hole | - | 1.417" L x 0.846" W (36.00mm x 21.50mm) | - | -40°C ~ 125°C | 100 kHz | 1.378" (35.00mm) |
|

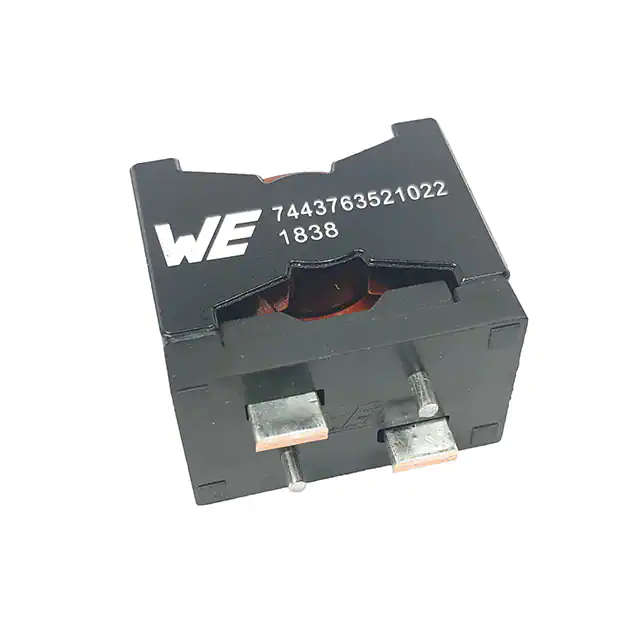

7443763521022FIXED IND 2.2UH 75A 0.4 MOHM TH Würth Elektronik |
10 |
|
Datasheet |
WE-HCFT | Nonstandard | Tray | Active | Drum Core, Wirewound | Manganese Zinc Ferrite (MnZn) | ±20% | 75 A | 120A | - | Shielded | 0.4mOhm Max | 2.2 µH | - | 30MHz | Through Hole | - | 1.417" L x 0.846" W (36.00mm x 21.50mm) | - | -40°C ~ 125°C | 100 kHz | 1.378" (35.00mm) |
|

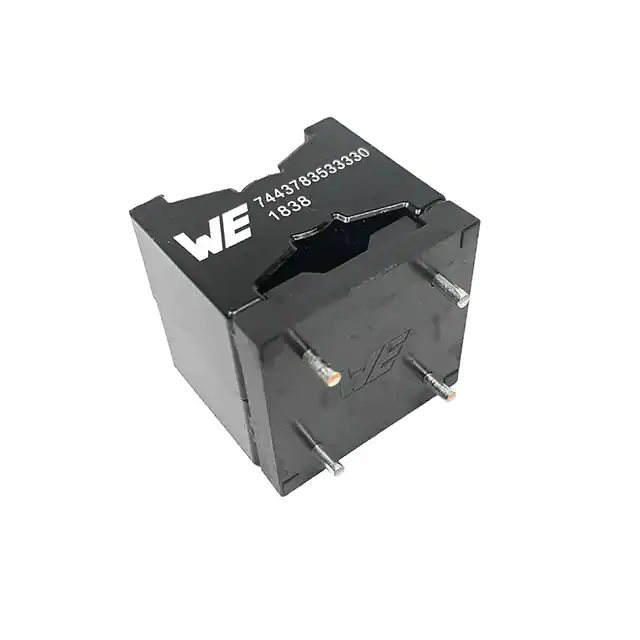

7443783533330FIXED IND 33UH 22A 9.9 MOHM TH Würth Elektronik |
36 |
|
Datasheet |
WE-HCFT | Nonstandard | Tray | Active | Drum Core, Wirewound | Manganese Zinc Ferrite (MnZn) | ±20% | 22 A | 39.2A | - | Shielded | 9.9mOhm Max | 33 µH | - | 6.08MHz | Through Hole | - | 1.417" L x 1.358" W (36.00mm x 34.50mm) | - | -40°C ~ 125°C | 100 kHz | 1.378" (35.00mm) |
|

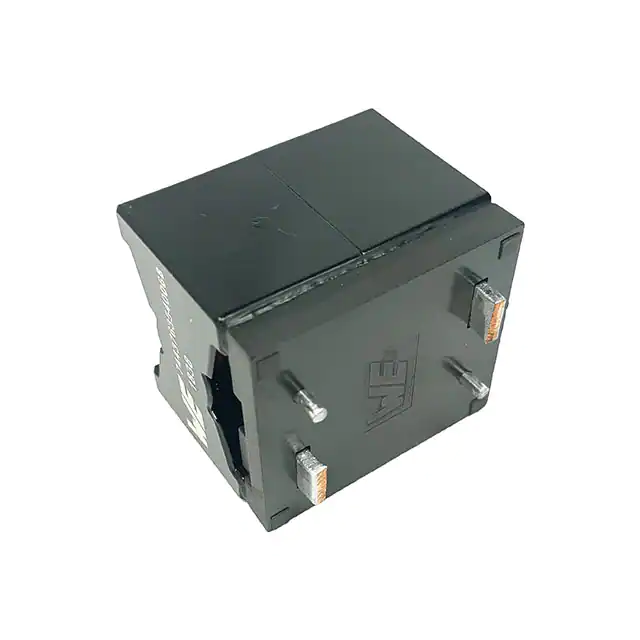

7443763540068FIXED IND 6.8UH 56.7A 1.2MOHM TH Würth Elektronik |
6 |
|
Datasheet |
WE-HCFT | Nonstandard | Tray | Active | Drum Core, Wirewound | Manganese Zinc Ferrite (MnZn) | ±20% | 56.7 A | 76.5A | - | Shielded | 1.2mOhm Max | 6.8 µH | - | 16MHz | Through Hole | AEC-Q200 | 1.614" L x 1.417" W (41.00mm x 36.00mm) | - | -40°C ~ 125°C | 100 kHz | 1.378" (35.00mm) |
|
7847806270WE-MCI MULTILAYER CERAMIC SMD IN Würth Elektronik |
966 |
|
Datasheet |
WE-MCI | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | ±5% | 300 mA | - | 0603 | Unshielded | 450mOhm Max | 27 nH | 12 @ 100MHz | 1.4GHz | Surface Mount | AEC-Q200 | 0.063" L x 0.031" W (1.60mm x 0.80mm) | - | -55°C ~ 125°C | 100 MHz | 0.037" (0.95mm) |
|
7447860112GWE-MK MULTILAYER CERAMIC SMT IND Würth Elektronik |
744 |
|
Datasheet |
WE-MK | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | ±2% | 300 mA | - | 0603 | Unshielded | 280mOhm Max | 12 nH | 12 @ 100MHz | 2.6GHz | Surface Mount | - | 0.063" L x 0.031" W (1.60mm x 0.80mm) | - | -55°C ~ 125°C | 100 MHz | 0.037" (0.95mm) |
|
|
7847806181WE-MCI MULTILAYER CERAMIC SMD IN Würth Elektronik |
130 |
|
Datasheet |
WE-MCI | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | ±5% | 300 mA | - | 0603 | Unshielded | 1.3Ohm Max | 180 nH | 8 @ 50MHz | 400MHz | Surface Mount | AEC-Q200 | 0.063" L x 0.031" W (1.60mm x 0.80mm) | - | -55°C ~ 125°C | 50 MHz | 0.037" (0.95mm) |
|
|
7847806100WE-MCI MULTILAYER CERAMIC SMD IN Würth Elektronik |
114 |
|
Datasheet |
WE-MCI | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | ±5% | 300 mA | - | 0603 | Unshielded | 260mOhm Max | 10 nH | 12 @ 100MHz | 3.4GHz | Surface Mount | AEC-Q200 | 0.063" L x 0.031" W (1.60mm x 0.80mm) | - | -55°C ~ 125°C | 100 MHz | 0.037" (0.95mm) |
.jpg)
|
744786112AFIXED IND 12NH 500MA 450MOHM SMD Würth Elektronik |
158 |
|
Datasheet |
WE-MK | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | ±5% | 500 mA | - | 0603 (1608 Metric) | Unshielded | 450mOhm Max | 12 nH | 8 @ 100MHz | 3GHz | Surface Mount | AEC-Q200 | 0.063" L x 0.031" W (1.60mm x 0.80mm) | - | -55°C ~ 125°C | 100 MHz | 0.037" (0.95mm) |
|
744760222CFIXED IND 220NH 400MA 1 OHM SMD Würth Elektronik |
825 |
|
Datasheet |
WE-KI | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | ±5% | 400 mA | - | 0805 | Unshielded | 1Ohm Max | 220 nH | 35 @ 250MHz | 850MHz | Surface Mount | - | 0.090" L x 0.067" W (2.29mm x 1.70mm) | - | -40°C ~ 125°C | 100 MHz | 0.058" (1.48mm) |
