Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Part Status | Type | Material - Core | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Supplier Device Package | Shielding | DC Resistance (DCR) | Inductance | Q @ Freq | Frequency - Self Resonant | Mounting Style | Ratings | Size / Dimension | Features | Operating Temperature | Inductance Frequency - Test | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
74405042015FIXED IND 1.5UH 3.2A 36 MOHM SMD Würth Elektronik |
779 |
|
Datasheet |
WE-LQSH | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 3.2 A | 8.7A | SMD | Shielded | 36mOhm Max | 1.5 µH | - | 45MHz | Surface Mount | - | 0.157" L x 0.146" W (4.00mm x 3.70mm) | - | -40°C ~ 125°C | 1 MHz | 0.079" (2.00mm) |
|

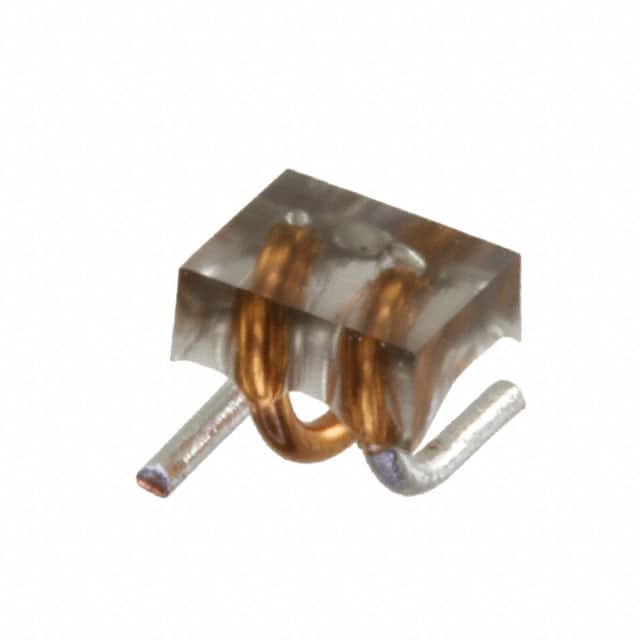

744913050FIXED IND 5NH 4A 1.8 MOHM SMD Würth Elektronik |
426 |
|
Datasheet |
WE-CAIR | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Air | ±5% | 4 A | - | - | Unshielded | 1.8mOhm Max | 5 nH | 140 @ 150MHz | 6.5GHz | Surface Mount | AEC-Q200 | 0.145" L x 0.120" W (3.68mm x 3.05mm) | - | -40°C ~ 125°C | 150 MHz | 0.125" (3.18mm) |
|
744911071FIXED IND 7.15NH 1.6A 10MOHM SMD Würth Elektronik |
267 |
|
Datasheet |
WE-CAIR | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Air | ±5% | 1.6 A | - | 1340 | Unshielded | 10mOhm Max | 7.15 nH | 100 @ 800MHz | 6GHz | Surface Mount | AEC-Q200 | 0.159" L x 0.056" W (4.04mm x 1.42mm) | - | -40°C ~ 125°C | 800 MHz | 0.060" (1.52mm) |
|

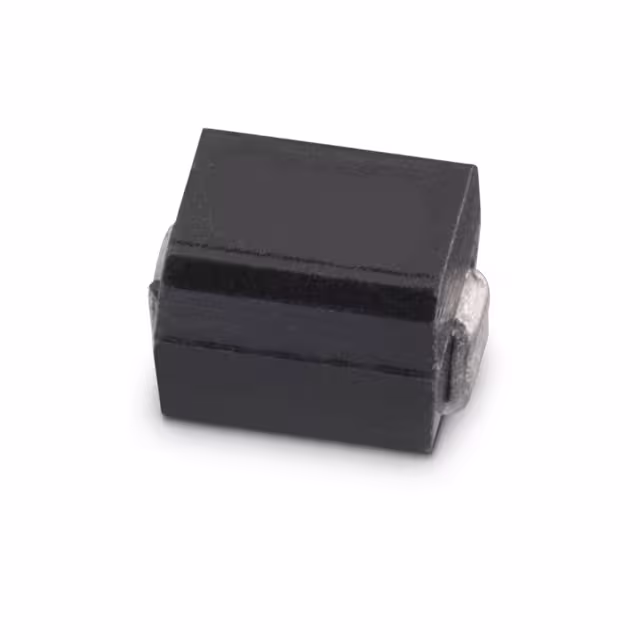

744764118FIXED IND 18UH 120MA 3.3 OHM SMD Würth Elektronik |
1,613 |
|
Datasheet |
WE-GF | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±10% | 120 mA | - | 3225 | Unshielded | 3.3Ohm Max | 18 µH | 30 @ 2.52MHz | 23MHz | Surface Mount | - | 0.126" L x 0.098" W (3.20mm x 2.50mm) | - | -40°C ~ 105°C | 2.52 MHz | 0.094" (2.40mm) |
|
7447462010FIXED IND 1UH 8.5A 15 MOHM TH Würth Elektronik |
662 |
|
Datasheet |
WE-TI | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | ±20% | 8.5 A | 8A | - | Unshielded | 15mOhm Max | 1 µH | - | 140MHz | Through Hole | - | 0.236" Dia (6.00mm) | - | -40°C ~ 125°C | 1 kHz | 0.335" (8.50mm) |
|
|
7447462068FIXED IND 6.8UH 3.3A 34 MOHM TH Würth Elektronik |
355 |
|
Datasheet |
WE-TI | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | ±20% | 3.3 A | 3A | - | Unshielded | 34mOhm Max | 6.8 µH | - | 32MHz | Through Hole | - | 0.236" Dia (6.00mm) | - | -40°C ~ 125°C | 1 kHz | 0.335" (8.50mm) |
|
|
7447462680FIXED IND 68UH 800MA 400 MOHM TH Würth Elektronik |
354 |
|
Datasheet |
WE-TI | Radial, Vertical Cylinder | Tray | Active | Drum Core, Wirewound | Ferrite | ±10% | 800 mA | 1A | - | Unshielded | 400mOhm Max | 68 µH | - | 7.5MHz | Through Hole | - | 0.236" Dia (6.00mm) | - | -40°C ~ 125°C | 1 kHz | 0.335" (8.50mm) |
|
|
7447462681FIXED IND 680UH 250MA 3.7 OHM TH Würth Elektronik |
302 |
|
Datasheet |
WE-TI | Radial, Vertical Cylinder | Tray | Active | Drum Core, Wirewound | Ferrite | ±10% | 250 mA | 300mA | - | Unshielded | 3.7Ohm Max | 680 µH | - | 2.4MHz | Through Hole | - | 0.236" Dia (6.00mm) | - | -40°C ~ 125°C | 1 kHz | 0.335" (8.50mm) |
|
744766218FIXED IND 180UH 100MA 9.5OHM SMD Würth Elektronik |
995 |
|
Datasheet |
WE-GF | 1812 (4532 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±10% | 100 mA | - | 4532 | Unshielded | 9.5Ohm Max | 180 µH | 40 @ 796kHz | 5.5MHz | Surface Mount | - | 0.177" L x 0.126" W (4.50mm x 3.20mm) | - | -40°C ~ 105°C | 796 kHz | 0.142" (3.60mm) |
|
|
744766012FIXED IND 1.2UH 430MA 550MOHM SM Würth Elektronik |
500 |
|
Datasheet |
WE-GF | 1812 (4532 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±10% | 430 mA | - | 4532 | Unshielded | 550mOhm Max | 1.2 µH | 50 @ 7.96MHz | 250MHz | Surface Mount | - | 0.177" L x 0.126" W (4.50mm x 3.20mm) | - | -40°C ~ 105°C | 7.96 MHz | 0.142" (3.60mm) |
