Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Part Status | Type | Material - Core | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Supplier Device Package | Shielding | DC Resistance (DCR) | Inductance | Q @ Freq | Frequency - Self Resonant | Mounting Style | Ratings | Size / Dimension | Features | Operating Temperature | Inductance Frequency - Test | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
744153FIXED IND 137UH 7A 50 MOHM TH Würth Elektronik |
25 |
|
Datasheet |
WE-SI | Radial | Bulk | Active | Toroidal | Iron Powder | ±20% | 7 A | 2A | - | Unshielded | 50mOhm Max | 137 µH | - | 6.4MHz | Through Hole | - | 1.260" Dia x 0.610" W (32.00mm x 15.50mm) | - | -40°C ~ 105°C | 10 kHz | - |
|
744156FIXED IND 380UH 6.2A 70 MOHM TH Würth Elektronik |
13 |
|
Datasheet |
WE-SI | Radial, Vertical (Open) | Bulk | Active | Toroidal | Ferrite | ±20% | 6.2 A | 2A | - | Unshielded | 70mOhm Max | 380 µH | - | 1.5MHz | Through Hole | - | 1.732" Dia x 0.610" W (44.00mm x 15.50mm) | - | -40°C ~ 105°C | 10 kHz | - |
|
|
744155FIXED IND 220UH 7.1A 60 MOHM TH Würth Elektronik |
4,826 |
|
Datasheet |
WE-SI | Radial, Vertical (Open) | Bulk | Active | Toroidal | Ferrite | ±20% | 7.1 A | 2A | - | Unshielded | 60mOhm Max | 220 µH | - | 4.7MHz | Through Hole | - | 1.693" Dia x 0.591" W (43.00mm x 15.00mm) | - | -40°C ~ 105°C | 10 kHz | - |
|
74436411500FIXED IND 15UH 36A 1.441MOHM SMD Würth Elektronik |
3,899 |
|
Datasheet |
WE-HCF | Nonstandard | Tray | Active | Drum Core, Wirewound | Manganese Zinc Ferrite (MnZn) | ±15% | 36 A | 14.3A | 2815 | Shielded | 1.441mOhm Max | 15 µH | - | 10.73MHz | Surface Mount | AEC-Q200 | 1.102" L x 0.764" W (28.00mm x 19.40mm) | - | -40°C ~ 125°C | 100 kHz | 0.606" (15.40mm) |
|
|
744154FIXED IND 172UH 6.5A 55 MOHM TH Würth Elektronik |
23 |
|
Datasheet |
WE-SI | Radial, Vertical (Open) | Bulk | Active | Toroidal | Ferrite | ±20% | 6.5 A | 2A | - | Unshielded | 55mOhm Max | 172 µH | - | 3.1MHz | Through Hole | - | 1.260" Dia x 0.610" W (32.00mm x 15.50mm) | - | -40°C ~ 105°C | 10 kHz | - |
|

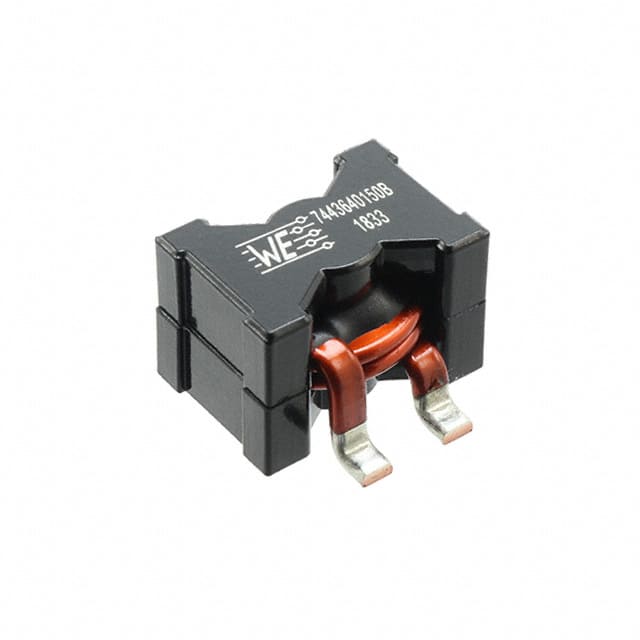

7443640150BFIXED IND 1.5UH 56A 0.484MOHM SM Würth Elektronik |
19 |
|
Datasheet |
WE-HCF | Nonstandard | Tray | Active | Drum Core, Wirewound | Manganese Zinc Ferrite (MnZn) | ±20% | 56 A | 91.8A | - | Shielded | 0.484mOhm Max | 1.5 µH | - | 37.6MHz | Surface Mount | AEC-Q200 | 1.102" L x 0.764" W (28.00mm x 19.40mm) | - | -40°C ~ 125°C | 100 kHz | 0.728" (18.50mm) |
|

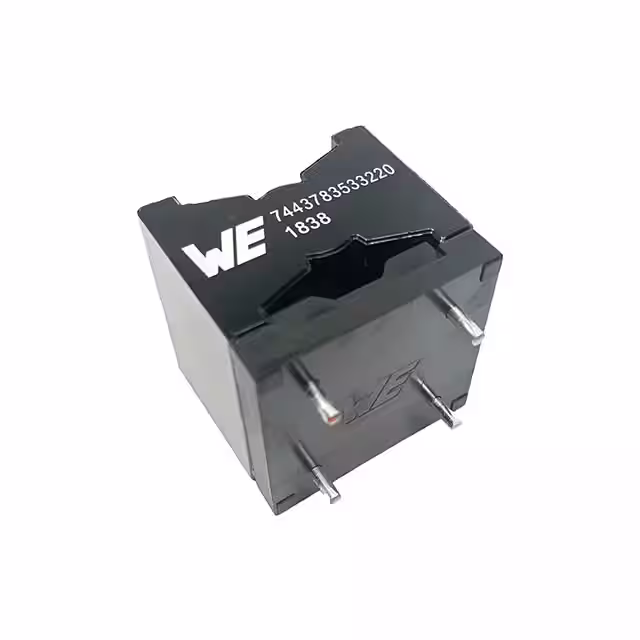

7443783533220FIXED IND 22UH 23.2A 8.8 MOHM TH Würth Elektronik |
4,029 |
|
Datasheet |
WE-HCFT | Nonstandard | Tray | Active | Drum Core, Wirewound | Manganese Zinc Ferrite (MnZn) | ±20% | 23.2 A | 49.4A | - | Shielded | 8.8mOhm Max | 22 µH | - | 8.15MHz | Through Hole | - | 1.417" L x 1.358" W (36.00mm x 34.50mm) | - | -40°C ~ 125°C | 100 kHz | 1.378" (35.00mm) |
|
7447840075FIXED IND 7.5NH 300MA 310MOHM SM Würth Elektronik |
3,990 |
|
Datasheet |
WE-MK | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | ±5% | 300 mA | - | 0402 | Unshielded | 310mOhm Max | 7.5 nH | 8 @ 100MHz | 4.2GHz | Surface Mount | - | 0.039" L x 0.020" W (1.00mm x 0.50mm) | - | -55°C ~ 125°C | 100 MHz | 0.022" (0.55mm) |
|
7847806101WE-MCI MULTILAYER CERAMIC SMD IN Würth Elektronik |
4,064 |
|
Datasheet |
WE-MCI | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | ±5% | 300 mA | - | 0603 | Unshielded | 1Ohm Max | 100 nH | 12 @ 100MHz | 600MHz | Surface Mount | AEC-Q200 | 0.063" L x 0.031" W (1.60mm x 0.80mm) | - | -55°C ~ 125°C | 100 MHz | 0.037" (0.95mm) |
|
|
7847805220WE-MCI MULTILAYER CERAMIC SMD IN Würth Elektronik |
4,221 |
|
Datasheet |
WE-MCI | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | ±0.3nH | 300 mA | - | 0603 | Unshielded | 100mOhm Max | 2.2 nH | 8 @ 100MHz | 6GHz | Surface Mount | AEC-Q200 | 0.063" L x 0.031" W (1.60mm x 0.80mm) | - | -55°C ~ 125°C | 100 MHz | 0.037" (0.95mm) |
