Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Part Status | Type | Material - Core | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Supplier Device Package | Shielding | DC Resistance (DCR) | Inductance | Q @ Freq | Frequency - Self Resonant | Mounting Style | Ratings | Size / Dimension | Features | Operating Temperature | Inductance Frequency - Test | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
7687480102WE-TI HV RADIAL LEADED WIRE WOUN Würth Elektronik |
3,670 |
|
Datasheet |
WE-TI HV | Radial, Vertical Cylinder | Tray | Active | Wirewound | - | ±5% | 800 mA | 800mA | Radial, Vertical Cylinder | Unshielded | 1.2Ohm Max | 1 mH | - | 1.1MHz | Through Hole | - | 0.413" Dia (10.50mm) | - | -40°C ~ 125°C | 10 kHz | 0.571" (14.50mm) |
|
744787220FIXED IND 22UH 1.83A 103MOHM SMD Würth Elektronik |
3 |
|
Datasheet |
WE-PD2SR | 2-SMD | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 1.83 A | 1.7A | - | Shielded | 103mOhm Max | 22 µH | - | 13MHz | Surface Mount | AEC-Q200 | 0.307" L x 0.276" W (7.80mm x 7.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.177" (4.50mm) |
|
|
744787120FIXED IND 12UH 2.45A 52 MOHM SMD Würth Elektronik |
4,135 |
|
Datasheet |
WE-PD2SR | 2-SMD | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 2.45 A | 2.4A | - | Shielded | 52mOhm Max | 12 µH | - | 20MHz | Surface Mount | AEC-Q200 | 0.307" L x 0.276" W (7.80mm x 7.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.177" (4.50mm) |
|
7447231103FIXED IND 10MH 250MA 8.5 OHM TH Würth Elektronik |
3,558 |
|
Datasheet |
WE-TI | Radial, Vertical Cylinder, 4 Leads | Tray | Active | Wirewound | - | ±5% | 250 mA | 320mA | - | Unshielded | 8.5Ohm Max | 10 mH | - | 320kHz | Through Hole | - | 0.433" Dia (11.00mm) | - | -40°C ~ 125°C | 10 kHz | 0.748" (19.00mm) |
|
|
7447231681FIXED IND 680UH 1A 590 MOHM TH Würth Elektronik |
3,383 |
|
Datasheet |
WE-TI | Radial, Vertical Cylinder, 4 Leads | Tray | Active | Wirewound | - | ±10% | 1 A | 1.2A | - | Unshielded | 590mOhm Max | 680 µH | - | 1.3MHz | Through Hole | - | 0.433" Dia (11.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.748" (19.00mm) |
|

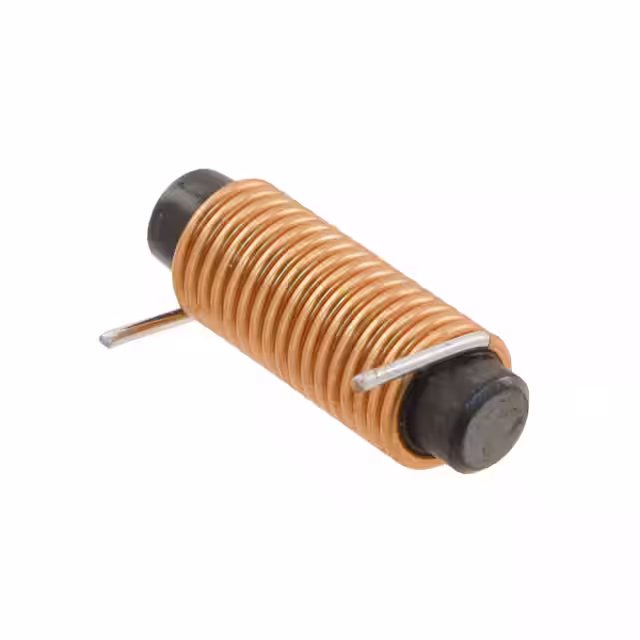

744710605FIXED IND 6UH 5A 11.7 MOHM TH Würth Elektronik |
4,243 |
|
Datasheet |
WE-SD | Radial, Horizontal Cylinder (Open) | Tray | Active | Drum Core, Wirewound | Ferrite | ±25% | 5 A | - | - | Unshielded | 11.7mOhm | 6 µH | - | 60MHz | Through Hole | - | 0.272" Dia x 0.807" L (6.90mm x 20.50mm) | - | -40°C ~ 150°C | 10 kHz | - |
|
7447773022FIXED IND 2.2UH 4.8A 17.5MOHM SM Würth Elektronik |
24 |
|
Datasheet |
WE-PD Performance | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±30% | 4.8 A | 8A | 7345 | Shielded | 17.5mOhm Max | 2.2 µH | - | 61MHz | Surface Mount | AEC-Q200 | 0.291" L x 0.287" W (7.40mm x 7.30mm) | - | -40°C ~ 150°C | 100 kHz | 0.177" (4.50mm) |
|

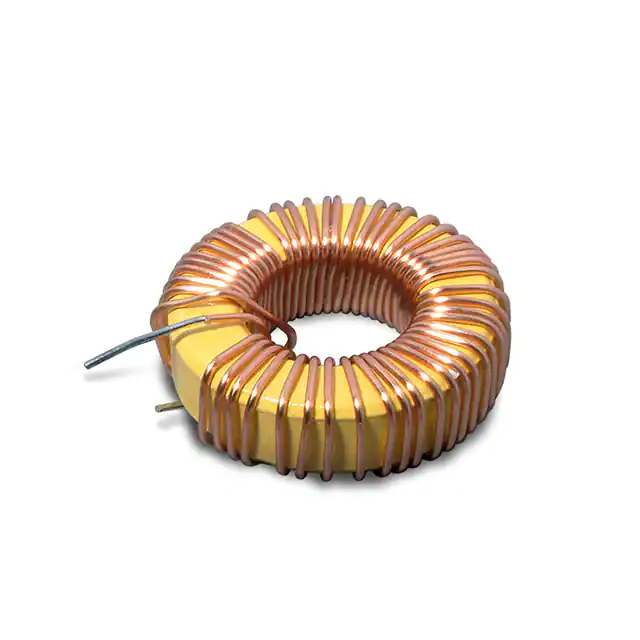

744150FIXED IND 26UH 10.3A 15 MOHM TH Würth Elektronik |
3 |
|
Datasheet |
WE-SI | Radial, Vertical (Open) | Tray | Active | Toroidal | Iron Powder | ±20% | 10.3 A | 4A | - | Shielded | 15mOhm Max | 26 µH | - | 25MHz | Through Hole | - | 1.122" Dia x 0.571" W (28.50mm x 14.50mm) | - | -40°C ~ 105°C | 10 kHz | - |
|
744775118FIXED IND 18UH 1.89A 100MOHM SMD Würth Elektronik |
18 |
|
Datasheet |
WE-PD2 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±10% | 1.89 A | 2.14A | - | Unshielded | 100mOhm Max | 18 µH | - | 19MHz | Surface Mount | - | 0.307" L x 0.276" W (7.80mm x 7.00mm) | - | -40°C ~ 125°C | 10 kHz | 0.217" (5.50mm) |
|
744750460100FIXED IND 10UH 9.2A 8.6 MOHM TH Würth Elektronik |
4,989 |
|
Datasheet |
WE-FAMI | Radial, Vertical Cylinder | Tray | Active | Drum Core, Wirewound | Ferrite | ±20% | 9.2 A | 11.3A | - | Shielded | 8.6mOhm Max | 10 µH | - | - | Through Hole | - | 0.504" Dia (12.80mm) | - | -40°C ~ 125°C | 100 kHz | 0.622" (15.80mm) |
