Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
784771680FIXED IND 68UH 1.8A 138MOHM SMD Würth Elektronik |
0 |
|
Datasheet |
WE-PDA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Nickel Zinc Ferrite (NiZn) | 68 µH | ±20% | 1.8 A | 2A | Shielded | 138mOhm Max | - | 8MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 1280 | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.248" (6.30mm) |
|
|
784771331FIXED IND 330UH 800MA 594MOHM SM Würth Elektronik |
0 |
|
Datasheet |
WE-PDA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Nickel Zinc Ferrite (NiZn) | 330 µH | ±20% | 800 mA | 900mA | Shielded | 594mOhm Max | - | 3.3MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 1280 | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.248" (6.30mm) |
|

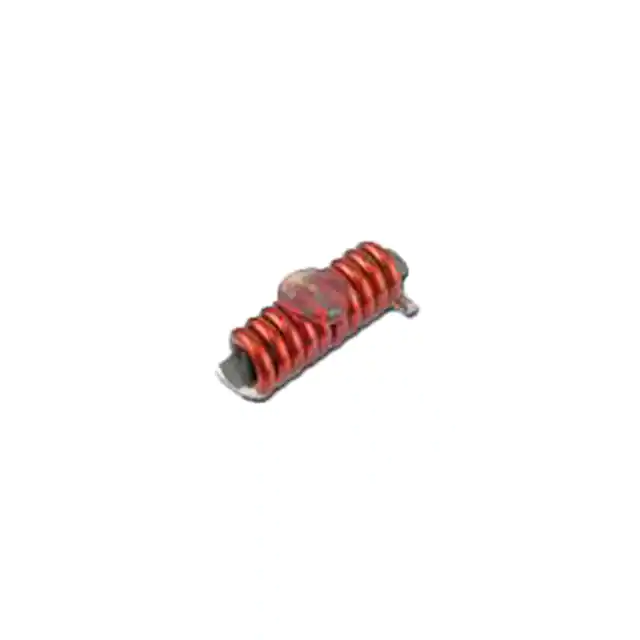

110001150FIXED IND 1.41UH 18.5A 1.1 MOHM Würth Elektronik |
0 |
|
Datasheet |
WE-SDP | Radial, Horizontal Cylinder (Open) | Tape & Reel (TR) | Obsolete | Wirewound | - | 1.41 µH | ±20% | 18.5 A | 14A | Unshielded | 1.1mOhm | - | - | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.362" Dia x 0.984" L (9.20mm x 25.00mm) | - |
|
|
784770471FIXED IND 470UH 800MA 570MOHM SM Würth Elektronik |
0 |
|
Datasheet |
WE-PDA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Nickel Zinc Ferrite (NiZn) | 470 µH | ±20% | 800 mA | 1A | Shielded | 570mOhm Max | - | 2MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 1280 | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.327" (8.30mm) |
|

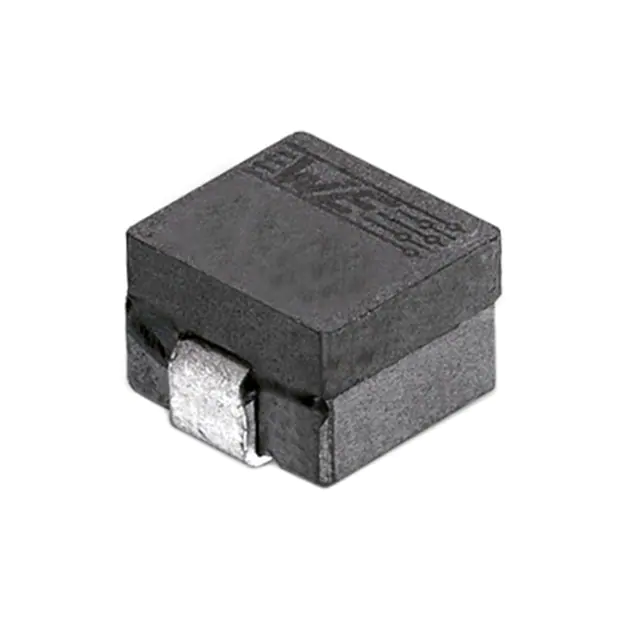

7443082017FIXED IND 170NH 60A 0.00018OHM Würth Elektronik |
0 |
|
Datasheet |
WE-HCM | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Manganese Zinc Ferrite (MnZn) | 170 nH | ±10% | 60 A | 69.3A | Shielded | 0.18mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 1088 | 0.402" L x 0.315" W (10.20mm x 8.00mm) | 0.319" (8.10mm) |
|
|
7443082018FIXED IND 180NH 60A 0.00018OHM Würth Elektronik |
0 |
|
Datasheet |
WE-HCM | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Manganese Zinc Ferrite (MnZn) | 180 nH | ±10% | 60 A | 66.4A | Shielded | 0.18mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 1088 | 0.402" L x 0.315" W (10.20mm x 8.00mm) | 0.319" (8.10mm) |
|
|
78477022FIXED IND 2.2UH 7A 14.5 MOHM SMD Würth Elektronik |
0 |
|
Datasheet |
WE-PDA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Nickel Zinc Ferrite (NiZn) | 2.2 µH | ±20% | 7 A | 15A | Shielded | 14.5mOhm Max | - | 85.6MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 1280 | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.327" (8.30mm) |
|
|
78477033FIXED IND 3.3UH 6.6A 17 MOHM SMD Würth Elektronik |
0 |
|
Datasheet |
WE-PDA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Nickel Zinc Ferrite (NiZn) | 3.3 µH | ±20% | 6.6 A | 12A | Shielded | 17mOhm Max | - | 72.5MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 1280 | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.327" (8.30mm) |
|
|
78477068FIXED IND 6.8UH 5.2A 25 MOHM SMD Würth Elektronik |
0 |
|
Datasheet |
WE-PDA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Nickel Zinc Ferrite (NiZn) | 6.8 µH | ±20% | 5.2 A | 8.5A | Shielded | 25mOhm Max | - | 42.1MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 1280 | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.327" (8.30mm) |
|
|
784770100FIXED IND 10UH 5A 31 MOHM SMD Würth Elektronik |
0 |
|
Datasheet |
WE-PDA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Nickel Zinc Ferrite (NiZn) | 10 µH | ±20% | 5 A | 6.8A | Shielded | 31mOhm Max | - | 28.3MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 1280 | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.327" (8.30mm) |
