Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Part Status | Type | Material - Core | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Supplier Device Package | Shielding | DC Resistance (DCR) | Inductance | Q @ Freq | Frequency - Self Resonant | Mounting Style | Ratings | Size / Dimension | Features | Operating Temperature | Inductance Frequency - Test | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

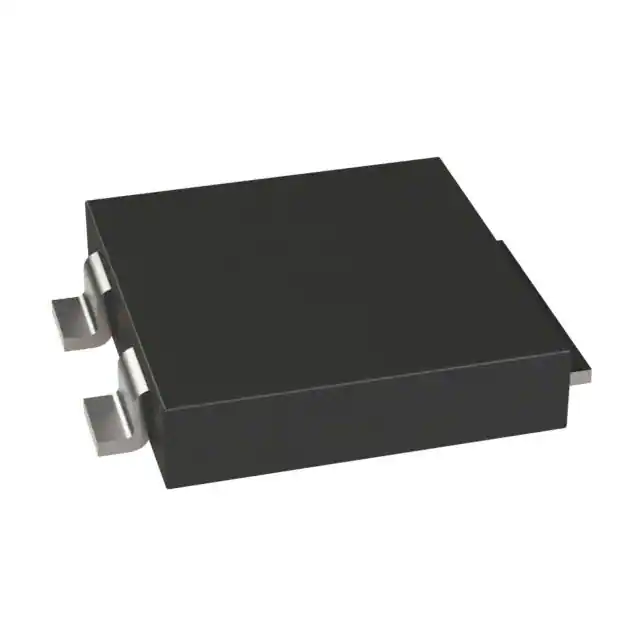

74431435012FIXED IND 120NH 31A 0.00028OHM Würth Elektronik |
2,893 |
|
Datasheet |
WE-HCM | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Manganese Zinc Ferrite (MnZn) | ±20% | 31 A | 71.3A | 1435 | Shielded | 0.28mOhm | 120 nH | - | 85MHz | Surface Mount | - | 0.537" L x 0.531" W (13.65mm x 13.50mm) | - | -40°C ~ 125°C | 100 kHz | 0.146" (3.70mm) |
|
|
74431435018FIXED IND 180NH 31A 0.00028OHM Würth Elektronik |
4,706 |
|
Datasheet |
WE-HCM | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Manganese Zinc Ferrite (MnZn) | ±20% | 31 A | 58.4A | 1435 | Shielded | 0.28mOhm | 180 nH | - | 63MHz | Surface Mount | - | 0.537" L x 0.531" W (13.65mm x 13.50mm) | - | -40°C ~ 125°C | 100 kHz | 0.146" (3.70mm) |
|
74431323016FIXED IND 160NH 26A 0.0007OHM SM Würth Elektronik |
3,590 |
|
Datasheet |
WE-HCM | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Manganese Zinc Ferrite (MnZn) | ±15% | 26 A | 35.1A | 1323 | Shielded | 0.7mOhm | 160 nH | - | 113MHz | Surface Mount | - | 0.512" L x 0.413" W (13.00mm x 10.50mm) | - | -40°C ~ 125°C | 100 kHz | 0.091" (2.30mm) |
|
|
74431323012FIXED IND 120NH 26A 0.0007OHM SM Würth Elektronik |
4,446 |
|
Datasheet |
WE-HCM | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Manganese Zinc Ferrite (MnZn) | ±15% | 26 A | 47.8A | 1323 | Shielded | 0.7mOhm | 120 nH | - | 120MHz | Surface Mount | - | 0.512" L x 0.413" W (13.00mm x 10.50mm) | - | -40°C ~ 125°C | 100 kHz | 0.091" (2.30mm) |
|
7843340033FIXED IND 330NH 21A 2.1MOHM SMD Würth Elektronik |
2,493 |
|
Datasheet |
WE-CHSA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 21 A | 36A | 8090 | Shielded | 2.1mOhm Max | 330 nH | - | 196MHz | Surface Mount | AEC-Q200 | 0.319" L x 0.319" W (8.10mm x 8.10mm) | - | -55°C ~ 150°C | 100 kHz | 0.366" (9.30mm) |
|
|
7843340047FIXED IND 470NH 19A 2.8MOHM SMD Würth Elektronik |
2,921 |
|
Datasheet |
WE-CHSA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 19 A | 29.7A | 8090 | Shielded | 2.8mOhm Max | 470 nH | - | 146MHz | Surface Mount | AEC-Q200 | 0.319" L x 0.319" W (8.10mm x 8.10mm) | - | -55°C ~ 150°C | 100 kHz | 0.366" (9.30mm) |
|
831751500FIXED IND 1.5UH 20A 4.1 MOHM SMD Würth Elektronik |
2,555 |
|
Datasheet |
WE-MASH-I | 2-SMD, J-Lead | Tape & Reel (TR) | Obsolete | Molded | - | ±10% | 20 A | 45A | SMD | Shielded | 4.1mOhm | 1.5 µH | - | - | Surface Mount | AEC-Q200 | 0.512" L x 0.512" W (13.00mm x 13.00mm) | - | -40°C ~ 125°C | 100 kHz | - |
|
784775022FIXED IND 2.2UH 6A 10 MOHM SMD Würth Elektronik |
4,715 |
|
Datasheet |
WE-PD2A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 6 A | 6A | 7850 | Unshielded | 10mOhm Max | 2.2 µH | - | 70MHz | Surface Mount | AEC-Q200 | 0.307" L x 0.276" W (7.80mm x 7.00mm) | - | -40°C ~ 125°C | 10 kHz | 0.217" (5.50mm) |
|
|
784775033FIXED IND 3.3UH 4.9A 14 MOHM SMD Würth Elektronik |
3,826 |
|
Datasheet |
WE-PD2A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 4.9 A | 4.9A | 7850 | Unshielded | 14mOhm Max | 3.3 µH | - | 57MHz | Surface Mount | AEC-Q200 | 0.307" L x 0.276" W (7.80mm x 7.00mm) | - | -40°C ~ 125°C | 10 kHz | 0.217" (5.50mm) |
|

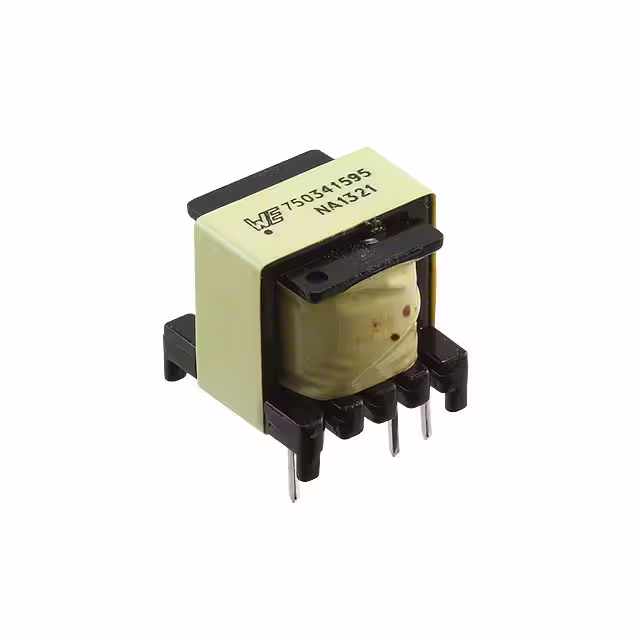

750341595FIXED IND 700UH 1.329 OHM TH Würth Elektronik |
2,958 |
|
Datasheet |
MID-DC16US | Radial, Vertical, 4 Leads | Tray | Active | - | - | ±5% | - | - | - | - | 1.329Ohm Max | 700 µH | - | - | Through Hole | - | 0.580" L x 0.580" W (14.73mm x 14.73mm) | - | -40°C ~ 125°C | 20 kHz | 0.600" (15.24mm) |
