Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Part Status | Type | Material - Core | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Supplier Device Package | Shielding | DC Resistance (DCR) | Inductance | Q @ Freq | Frequency - Self Resonant | Mounting Style | Ratings | Size / Dimension | Features | Operating Temperature | Inductance Frequency - Test | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
1mm.jpg)
|

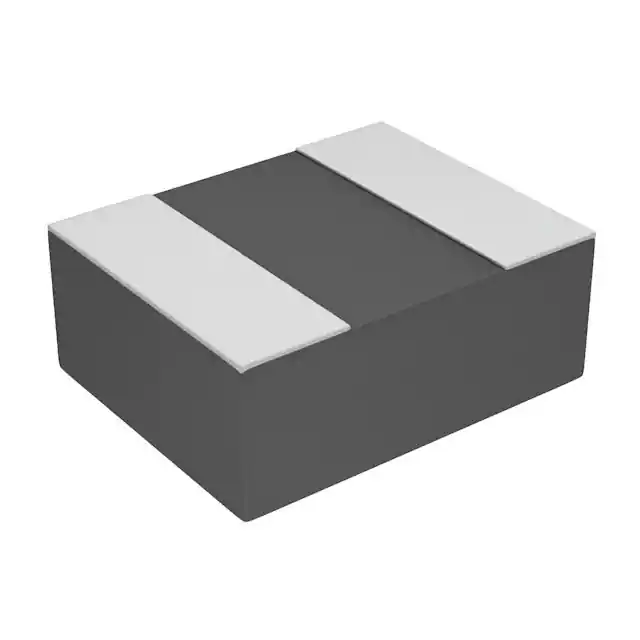

78438323033FIXED IND 3.3UH 1.25A 264MOHM SM Würth Elektronik |
5,835 |
|
Datasheet |
WE-MAIA | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Molded | Iron Alloy | ±30% | 1.25 A | 2.1A | 2510 | Shielded | 264mOhm Max | 3.3 µH | - | 50MHz | Surface Mount | AEC-Q200 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.039" (1.00mm) |
|
|
78438323100FIXED IND 10UH 600MA 843MOHM SMD Würth Elektronik |
5,062 |
|
Datasheet |
WE-MAIA | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Molded | Iron Alloy | ±30% | 600 mA | 1.35A | 2510 | Shielded | 843mOhm Max | 10 µH | - | 25MHz | Surface Mount | AEC-Q200 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.039" (1.00mm) |
|

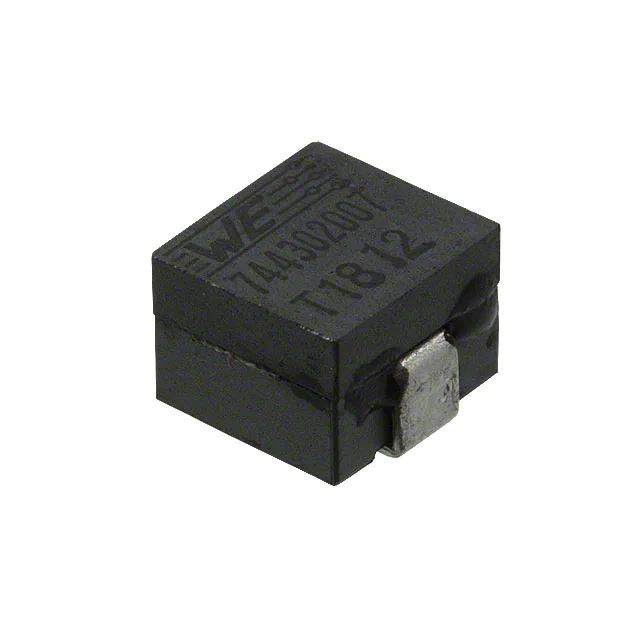

744302007FIXED IND 72NH 30A 0.000235OHM Würth Elektronik |
1,895 |
|
Datasheet |
WE-HCM | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Manganese Zinc Ferrite (MnZn) | ±20% | 30 A | 64A | 7050 | Shielded | 0.235mOhm | 72 nH | - | 150MHz | Surface Mount | - | 0.281" L x 0.276" W (7.15mm x 7.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.197" (5.00mm) |
|
74438367022FIXED IND 2.2UH 7.5A 16.1MOHM SM Würth Elektronik |
1,205 |
|
Datasheet |
WE-MAPI | Nonstandard | Tape & Reel (TR) | Active | - | - | ±20% | 7.5 A | 7.5A | 5030 | Shielded | 16.1mOhm Max | 2.2 µH | - | 28MHz | Surface Mount | AEC-Q200 | 0.213" L x 0.213" W (5.40mm x 5.40mm) | - | -40°C ~ 125°C | 100 kHz | 0.122" (3.10mm) |
|
|
74438367047FIXED IND 4.7UH 5.5A 34.5MOHM SM Würth Elektronik |
1,040 |
|
Datasheet |
WE-MAPI | Nonstandard | Tape & Reel (TR) | Active | - | - | ±20% | 5.5 A | 5.4A | 5030 | Shielded | 34.5mOhm Max | 4.7 µH | - | 18.5MHz | Surface Mount | AEC-Q200 | 0.213" L x 0.213" W (5.40mm x 5.40mm) | - | -40°C ~ 125°C | 100 kHz | 0.122" (3.10mm) |
|
|
74438367010FIXED IND 1UH 9A 11.5 MOHM SMD Würth Elektronik |
850 |
|
Datasheet |
WE-MAPI | Nonstandard | Tape & Reel (TR) | Active | - | - | ±20% | 9 A | 9.6A | 5030 | Shielded | 11.5mOhm Max | 1 µH | - | 44.5MHz | Surface Mount | AEC-Q200 | 0.213" L x 0.213" W (5.40mm x 5.40mm) | - | -40°C ~ 125°C | 100 kHz | 0.122" (3.10mm) |
|
|
74438367033FIXED IND 3.3UH 6.2A 23MOHM SMD Würth Elektronik |
603 |
|
Datasheet |
WE-MAPI | Nonstandard | Tape & Reel (TR) | Active | - | - | ±20% | 6.2 A | 7.3A | 5030 | Shielded | 23mOhm Max | 3.3 µH | - | 22MHz | Surface Mount | AEC-Q200 | 0.213" L x 0.213" W (5.40mm x 5.40mm) | - | -40°C ~ 125°C | 100 kHz | 0.122" (3.10mm) |
|
|
74438367082FIXED IND 8.2UH 4.4A 57.5MOHM SM Würth Elektronik |
392 |
|
Datasheet |
WE-MAPI | Nonstandard | Tape & Reel (TR) | Active | - | - | ±20% | 4.4 A | 5A | 5030 | Shielded | 57.5mOhm Max | 8.2 µH | - | 13MHz | Surface Mount | AEC-Q200 | 0.213" L x 0.213" W (5.40mm x 5.40mm) | - | -40°C ~ 125°C | 100 kHz | 0.122" (3.10mm) |
|
744066101FIXED IND 100UH 1.2A 300MOHM SMD Würth Elektronik |
11,332 |
|
Datasheet |
WE-TPC | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±30% | 1.2 A | 1.2A | - | Shielded | 300mOhm Max | 100 µH | - | 6MHz | Surface Mount | - | 0.394" L x 0.394" W (10.00mm x 10.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.161" (4.10mm) |
|
|
744066150FIXED IND 15UH 3.2A 50 MOHM SMD Würth Elektronik |
5,573 |
|
Datasheet |
WE-TPC | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±30% | 3.2 A | 3.25A | - | Shielded | 50mOhm Max | 15 µH | - | 16MHz | Surface Mount | - | 0.394" L x 0.394" W (10.00mm x 10.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.161" (4.10mm) |
