Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
7447773330FIXED IND 33UH 1.45A 147MOHM SMD Würth Elektronik |
2,440 |
|
Datasheet |
WE-PD Performance | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 33 µH | ±20% | 1.45 A | 2.1A | Shielded | 147mOhm Max | - | 13.5MHz | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | 7345 | 0.291" L x 0.287" W (7.40mm x 7.30mm) | 0.177" (4.50mm) |
|
|
7447773150FIXED IND 15UH 2.2A 69.5MOHM SMD Würth Elektronik |
2,377 |
|
Datasheet |
WE-PD Performance | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 15 µH | ±20% | 2.2 A | 3.1A | Shielded | 69.5mOhm Max | - | 20.7MHz | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | 7345 | 0.291" L x 0.287" W (7.40mm x 7.30mm) | 0.177" (4.50mm) |
|
74438367068WE-MAPI SMT POWER INDUCTOR 6,8 U Würth Elektronik |
1,788 |
|
Datasheet |
WE-MAPI | Nonstandard | Tape & Reel (TR) | Active | - | Iron Alloy | 6.8 µH | ±20% | 4.3 A | 5.7A | Shielded | 48.3mOhm Max | - | 15.5MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 5030 | 0.213" L x 0.213" W (5.40mm x 5.40mm) | 0.122" (3.10mm) |
|
|
74438367100WE-MAPI SMT POWER INDUCTOR 10 UH Würth Elektronik |
1,612 |
|
Datasheet |
WE-MAPI | Nonstandard | Tape & Reel (TR) | Active | - | Iron Alloy | 10 µH | ±20% | 3.3 A | 4.8A | Shielded | 70.2mOhm Max | - | 13MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 5030 | 0.213" L x 0.213" W (5.40mm x 5.40mm) | 0.122" (3.10mm) |
|

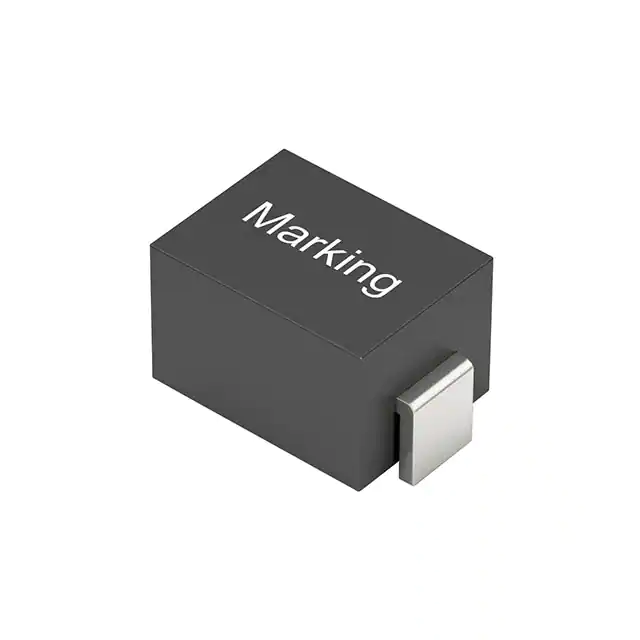

744340300075FIXED IND 75NH 27A 0.00027OHM SM Würth Elektronik |
1,051 |
|
Datasheet |
WE-HCM | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Manganese Zinc Ferrite (MnZn) | 75 nH | ±15% | 27 A | 23.5A | Shielded | 0.27mOhm | - | 106MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 4030 | 0.189" L x 0.122" W (4.80mm x 3.10mm) | 0.118" (3.00mm) |
|

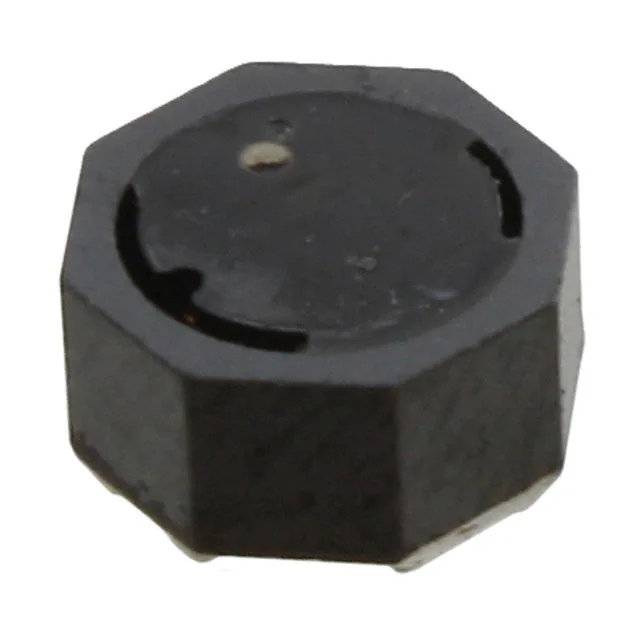

744071470FIXED IND 47UH 1.6A 150 MOHM SMD Würth Elektronik |
919 |
|
Datasheet |
WE-TPC | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 47 µH | ±30% | 1.6 A | 1.3A | Shielded | 150mOhm Max | - | 10MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.181" (4.60mm) |
|
7447773220FIXED IND 22UH 1.85A 87 MOHM SMD Würth Elektronik |
842 |
|
Datasheet |
WE-PD Performance | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 22 µH | ±20% | 1.85 A | 2.5A | Shielded | 87mOhm Max | - | 16.1MHz | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | 7345 | 0.291" L x 0.287" W (7.40mm x 7.30mm) | 0.177" (4.50mm) |
|
|
7447773101FIXED IND 100UH 970MA 335MOHM SM Würth Elektronik |
608 |
|
Datasheet |
WE-PD Performance | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 100 µH | ±20% | 970 mA | 1.2A | Shielded | 335mOhm Max | - | 6.7MHz | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | 7345 | 0.291" L x 0.287" W (7.40mm x 7.30mm) | 0.177" (4.50mm) |
|
|
7447773100FIXED IND 10UH 2.6A 45 MOHM SMD Würth Elektronik |
414 |
|
Datasheet |
WE-PD Performance | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 2.6 A | 3.8A | Shielded | 45mOhm Max | - | 23MHz | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | 7345 | 0.291" L x 0.287" W (7.40mm x 7.30mm) | 0.177" (4.50mm) |
|
|
7447773221FIXED IND 220UH 630MA 770MOHM SM Würth Elektronik |
351 |
|
Datasheet |
WE-PD Performance | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 220 µH | ±20% | 630 mA | 810mA | Shielded | 770mOhm Max | - | 4.3MHz | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | 7345 | 0.291" L x 0.287" W (7.40mm x 7.30mm) | 0.177" (4.50mm) |
