Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
744071330FIXED IND 33UH 1.9A 120 MOHM SMD Würth Elektronik |
273 |
|
Datasheet |
WE-TPC | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 33 µH | ±30% | 1.9 A | 1.5A | Shielded | 120mOhm Max | - | 12MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.181" (4.60mm) |
|
|
744071100FIXED IND 10UH 3.4A 35 MOHM SMD Würth Elektronik |
128 |
|
Datasheet |
WE-TPC | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±30% | 3.4 A | 2.8A | Shielded | 35mOhm Max | - | 24MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.181" (4.60mm) |
|

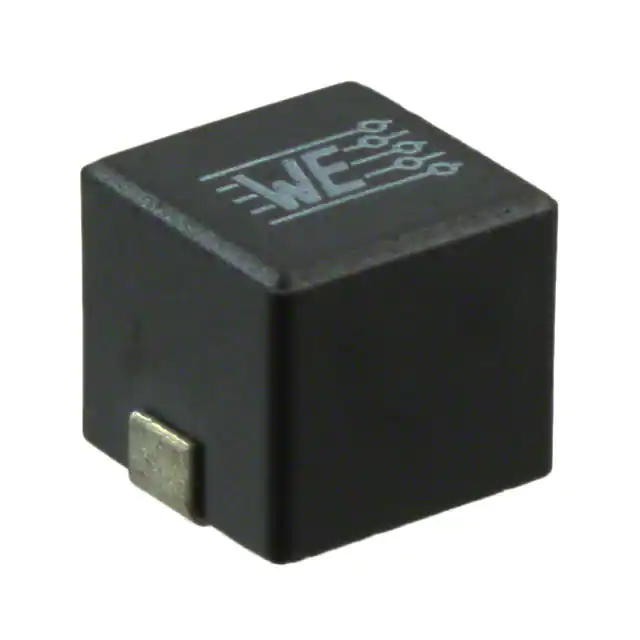

7443340100FIXED IND 1UH 17A 3.9 MOHM SMD Würth Elektronik |
12,507 |
|
Datasheet |
WE-HCC | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1 µH | ±20% | 17 A | 24A | Shielded | 3.9mOhm Max | - | 147MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.331" L x 0.311" W (8.40mm x 7.90mm) | 0.295" (7.50mm) |
|
|
7443340220FIXED IND 2.2UH 16.5A 5.6MOHM SM Würth Elektronik |
1,398 |
|
Datasheet |
WE-HCC | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 2.2 µH | ±20% | 16.5 A | 12.5A | Shielded | 5.6mOhm Max | - | 97MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.331" L x 0.311" W (8.40mm x 7.90mm) | 0.295" (7.50mm) |
|
|
7443340330FIXED IND 3.3UH 14A 8.2 MOHM SMD Würth Elektronik |
981 |
|
Datasheet |
WE-HCC | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 3.3 µH | ±20% | 14 A | 8.5A | Shielded | 8.2mOhm Max | - | 81MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.331" L x 0.311" W (8.40mm x 7.90mm) | 0.295" (7.50mm) |
|
|
7443340680FIXED IND 6.8UH 5.5A 24 MOHM SMD Würth Elektronik |
713 |
|
Datasheet |
WE-HCC | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 6.8 µH | ±20% | 5.5 A | 7.5A | Shielded | 24mOhm Max | - | 37MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.331" L x 0.311" W (8.40mm x 7.90mm) | 0.295" (7.50mm) |
|
|
7443340470FIXED IND 4.7UH 7.5A 13.5MOHM SM Würth Elektronik |
563 |
|
Datasheet |
WE-HCC | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 4.7 µH | ±20% | 7.5 A | 8A | Shielded | 13.5mOhm Max | - | 45MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.331" L x 0.311" W (8.40mm x 7.90mm) | 0.295" (7.50mm) |
|
|
7443340150FIXED IND 1.5UH 16.5A 5.6MOHM SM Würth Elektronik |
511 |
|
Datasheet |
WE-HCC | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1.5 µH | ±20% | 16.5 A | 18.5A | Shielded | 5.6mOhm Max | - | 120MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.331" L x 0.311" W (8.40mm x 7.90mm) | 0.295" (7.50mm) |
|
|
7443341000FIXED IND 10UH 4.4A 41 MOHM SMD Würth Elektronik |
467 |
|
Datasheet |
WE-HCC | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 4.4 A | 7A | Shielded | 41mOhm Max | - | 29MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.331" L x 0.311" W (8.40mm x 7.90mm) | 0.295" (7.50mm) |
|

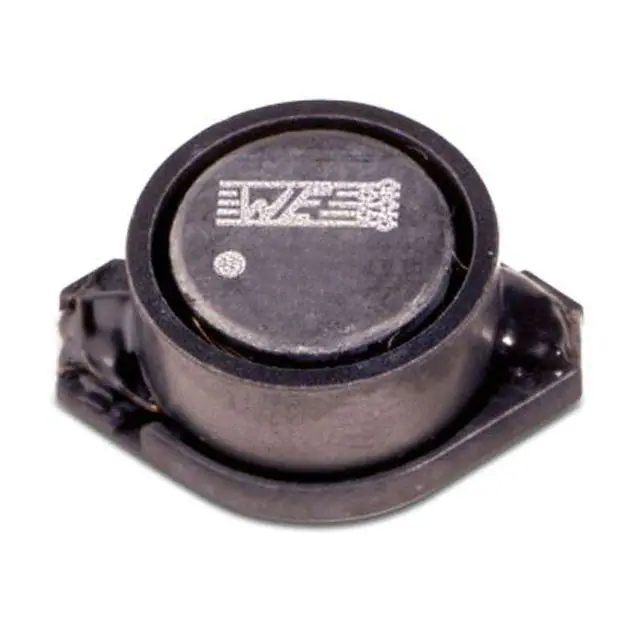

74456215FIXED IND 150UH 1A 590 MOHM SMD Würth Elektronik |
326 |
|
Datasheet |
WE-PD4 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 150 µH | ±10% | 1 A | 1.2A | Unshielded | 590mOhm Max | - | 5.3MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.500" L x 0.394" W (12.70mm x 10.00mm) | 0.209" (5.30mm) |
