Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Part Status | Type | Material - Core | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Supplier Device Package | Shielding | DC Resistance (DCR) | Inductance | Q @ Freq | Frequency - Self Resonant | Mounting Style | Ratings | Size / Dimension | Features | Operating Temperature | Inductance Frequency - Test | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
74438357068FIXED IND 6.8UH 3A 74 MOHM SMD |
2,857 |
|
Datasheet |
WE-MAPI | 1616 (4040 Metric) | Tape & Reel (TR) | Active | Molded | Metal Composite | ±20% | 3 A | 5.5A | 4030 | Shielded | 74mOhm Max | 6.8 µH | - | 19.5MHz | Surface Mount | AEC-Q200 | 0.161" L x 0.161" W (4.10mm x 4.10mm) | - | -40°C ~ 125°C | 100 kHz | 0.122" (3.10mm) |
|
|
74438357015FIXED IND 1.5UH 6.2A 20 MOHM SMD |
2,373 |
|
Datasheet |
WE-MAPI | 1616 (4040 Metric) | Tape & Reel (TR) | Active | Molded | Metal Composite | ±20% | 6.2 A | 8.5A | 4030 | Shielded | 20mOhm Max | 1.5 µH | - | 48MHz | Surface Mount | AEC-Q200 | 0.161" L x 0.161" W (4.10mm x 4.10mm) | - | -40°C ~ 125°C | 100 kHz | 0.122" (3.10mm) |
|
|
74438357100FIXED IND 10UH 2.7A 110 MOHM SMD |
1,345 |
|
Datasheet |
WE-MAPI | 1616 (4040 Metric) | Tape & Reel (TR) | Active | Molded | Metal Composite | ±20% | 2.7 A | 4.6A | 4030 | Shielded | 110mOhm Max | 10 µH | - | 15MHz | Surface Mount | AEC-Q200 | 0.161" L x 0.161" W (4.10mm x 4.10mm) | - | -40°C ~ 125°C | 100 kHz | 0.122" (3.10mm) |
|
|
74438357010FIXED IND 1UH 7.4A 13.5 MOHM SMD |
1,039 |
|
Datasheet |
WE-MAPI | 1616 (4040 Metric) | Tape & Reel (TR) | Active | Molded | Metal Composite | ±20% | 7.4 A | 9.6A | 4030 | Shielded | 13.5mOhm Max | 1 µH | - | 59MHz | Surface Mount | AEC-Q200 | 0.161" L x 0.161" W (4.10mm x 4.10mm) | - | -40°C ~ 125°C | 100 kHz | 0.122" (3.10mm) |
|
SPM7054VT-220M-DFIXED IND 22UH 3.9A 0.0719OHM SM |
2,026 |
|
Datasheet |
SPM-VT-D | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | ±20% | 3.9 A | 4.2A | 7054 | Shielded | 71.9mOhm | 22 µH | - | - | Surface Mount | AEC-Q200 | 0.295" L x 0.276" W (7.50mm x 7.00mm) | - | -55°C ~ 155°C | 100 kHz | 0.213" (5.40mm) |
|
CDRH104RNP-470NCFIXED IND 47UH 1.9A 128 MOHM SMD |
36,799 |
|
Datasheet |
CDRH104R | Nonstandard | Tape & Reel (TR) | Active | - | - | ±30% | 1.9 A | 2.1A | - | Shielded | 128mOhm Max | 47 µH | - | - | Surface Mount | - | 0.402" L x 0.394" W (10.20mm x 10.00mm) | - | -40°C ~ 100°C | 100 kHz | 0.157" (4.00mm) |
|
CDRH104RNP-150NCFIXED IND 15UH 3.1A 50 MOHM SMD |
30,380 |
|
Datasheet |
CDRH104R | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | ±30% | 3.1 A | 3.6A | - | Shielded | 50mOhm Max | 15 µH | - | - | Surface Mount | - | 0.402" L x 0.394" W (10.20mm x 10.00mm) | - | -40°C ~ 100°C | 100 kHz | 0.157" (4.00mm) |
|
|
CDRH104RNP-100NCFIXED IND 10UH 3.8A 35 MOHM SMD |
22,195 |
|
Datasheet |
CDRH104R | Nonstandard | Tape & Reel (TR) | Active | - | - | ±30% | 3.8 A | 4.4A | - | Shielded | 35mOhm Max | 10 µH | - | - | Surface Mount | - | 0.402" L x 0.394" W (10.20mm x 10.00mm) | - | -40°C ~ 100°C | 100 kHz | 0.157" (4.00mm) |
|
|
CDRH104RNP-330NCFIXED IND 33UH 2.2A 93 MOHM SMD |
7,651 |
|
Datasheet |
CDRH104R | Nonstandard | Tape & Reel (TR) | Active | - | - | ±30% | 2.2 A | 2.3A | - | Shielded | 93mOhm Max | 33 µH | - | - | Surface Mount | - | 0.402" L x 0.394" W (10.20mm x 10.00mm) | - | -40°C ~ 100°C | 100 kHz | 0.157" (4.00mm) |
|

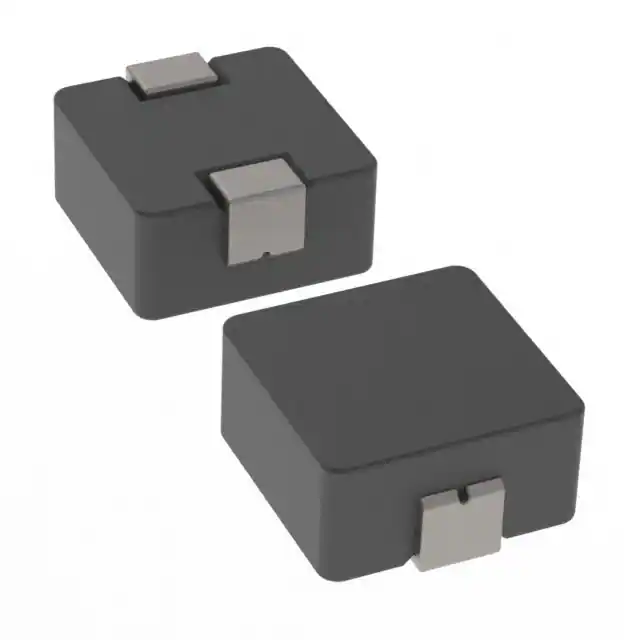

PM4343.103NLTFIXED IND 10UH 10A 16.5MOHM SMD |
3,253 |
|
Datasheet |
PM4343.XXXNLT | Nonstandard | Tape & Reel (TR) | Active | Molded | - | ±20% | 10 A | 15.5A | - | Shielded | 16.5mOhm Max | 10 µH | - | - | Surface Mount | AEC-Q200 | 0.551" L x 0.504" W (14.00mm x 12.80mm) | - | -40°C ~ 125°C | 100 kHz | 0.256" (6.50mm) |
|
CDRH104RNP-680NCFIXED IND 68UH 1.42A 213MOHM SMD |
1,188 |
|
Datasheet |
CDRH104R | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | ±30% | 1.42 A | 1.5A | - | Shielded | 213mOhm Max | 68 µH | - | - | Surface Mount | - | 0.402" L x 0.394" W (10.20mm x 10.00mm) | - | -40°C ~ 100°C | 100 kHz | 0.157" (4.00mm) |
|
SRP1270-4R7MFIXED IND 4.7UH 15A 11.2MOHM SMD |
11,818 |
|
Datasheet |
SRP1270 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron | ±20% | 15 A | 30A | - | Shielded | 11.2mOhm Max | 4.7 µH | - | 15MHz | Surface Mount | - | 0.539" L x 0.539" W (13.70mm x 13.70mm) | - | -55°C ~ 125°C | 100 kHz | 0.276" (7.00mm) |
|
CLS62NP-100NCFIXED IND 10UH 700MA 200MOHM SMD |
9,530 |
|
Datasheet |
CLS62 | Nonstandard, 4 Lead | Tape & Reel (TR) | Active | - | - | ±30% | 700 mA | - | - | Shielded | 200mOhm Max | 10 µH | - | - | Surface Mount | - | 0.268" L x 0.260" W (6.80mm x 6.60mm) | - | - | 2.52 MHz | 0.098" (2.50mm) |
|
SRP1265A-100MFIXED IND 10UH 10A 16.5 MOHM SMD |
20,107 |
|
Datasheet |
SRP1265A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Carbonyl Powder | ±20% | 10 A | 15.5A | - | Shielded | 16.5mOhm Max | 10 µH | 20 @ 100kHz | 10MHz | Surface Mount | AEC-Q200 | 0.531" L x 0.492" W (13.50mm x 12.50mm) | - | -55°C ~ 150°C | 100 kHz | 0.252" (6.40mm) |
|
MPL-AL4020-2R2FIXED IND 2.2UH 5.5A 21.5MOHM SM |
5,360 |
|
Datasheet |
MPL-AL | 2-SMD | Tape & Reel (TR) | Active | Molded | - | - | 5.5 A | 6.2A | - | Unshielded | 21.5mOhm | 2.2 µH | - | - | Surface Mount | - | 0.161" L x 0.161" W (4.10mm x 4.10mm) | - | -40°C ~ 155°C | 100 kHz | 0.083" (2.10mm) |
|
|
SRP1265A-4R7MFIXED IND 4.7UH 13.5A 8.4MOHM SM |
3,376 |
|
Datasheet |
SRP1265A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Carbonyl Powder | ±20% | 13.5 A | 28A | - | Shielded | 8.4mOhm Max | 4.7 µH | 20 @ 100kHz | 17MHz | Surface Mount | AEC-Q200 | 0.531" L x 0.492" W (13.50mm x 12.50mm) | - | -55°C ~ 150°C | 100 kHz | 0.252" (6.40mm) |
|
|
SRP1265A-3R3MFIXED IND 3.3UH 18A 6.8 MOHM SMD |
1,366 |
|
Datasheet |
SRP1265A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Carbonyl Powder | ±20% | 18 A | 30A | - | Shielded | 6.8mOhm Max | 3.3 µH | 20 @ 100kHz | 20MHz | Surface Mount | AEC-Q200 | 0.531" L x 0.492" W (13.50mm x 12.50mm) | - | -55°C ~ 150°C | 100 kHz | 0.252" (6.40mm) |
|
|
SRP1265A-1R0MFIXED IND 1UH 30A 2.3 MOHM SMD |
499 |
|
Datasheet |
SRP1265A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Carbonyl Powder | ±20% | 30 A | 48A | - | Shielded | 2.3mOhm Max | 1 µH | 20 @ 100kHz | 45MHz | Surface Mount | AEC-Q200 | 0.531" L x 0.492" W (13.50mm x 12.50mm) | - | -55°C ~ 150°C | 100 kHz | 0.252" (6.40mm) |
|
B82462G4334M000FIXED IND 330UH 270MA 2.3OHM SMD |
16,907 |
|
Datasheet |
B82462G4 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 270 mA | 220mA | - | Shielded | 2.3Ohm Max | 330 µH | - | - | Surface Mount | AEC-Q200 | 0.248" L x 0.248" W (6.30mm x 6.30mm) | - | -55°C ~ 150°C | 100 kHz | 0.118" (3.00mm) |
|
|
B82462G4152M000FIXED IND 1.5UH 3.1A 20 MOHM SMD |
10,567 |
|
Datasheet |
B82462G4 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 3.1 A | 3.6A | - | Shielded | 20mOhm Max | 1.5 µH | - | - | Surface Mount | AEC-Q200 | 0.248" L x 0.248" W (6.30mm x 6.30mm) | - | -55°C ~ 150°C | 100 kHz | 0.118" (3.00mm) |
