Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Part Status | Type | Material - Core | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Supplier Device Package | Shielding | DC Resistance (DCR) | Inductance | Q @ Freq | Frequency - Self Resonant | Mounting Style | Ratings | Size / Dimension | Features | Operating Temperature | Inductance Frequency - Test | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SRP6060FA-220MFIXED IND 22UH 5A 60.5 MOHM SMD |
6,885 |
|
Datasheet |
SRP6060FA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | ±20% | 5 A | 5.6A | - | Shielded | 60.5mOhm Max | 22 µH | - | 10MHz | Surface Mount | AEC-Q200 | 0.260" L x 0.252" W (6.60mm x 6.40mm) | - | -55°C ~ 155°C | 100 kHz | 0.236" (6.00mm) |
|
744066220FIXED IND 22UH 2.5A 75 MOHM SMD |
4,676 |
|
Datasheet |
WE-TPC | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±30% | 2.5 A | 2.3A | - | Shielded | 75mOhm Max | 22 µH | - | 12MHz | Surface Mount | - | 0.394" L x 0.394" W (10.00mm x 10.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.161" (4.10mm) |
|
|
SRP6060FA-150MFIXED IND 15UH 6A 43 MOHM SMD |
4,483 |
|
Datasheet |
SRP6060FA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | ±20% | 6 A | 5.8A | - | Shielded | 43mOhm Max | 15 µH | - | 11MHz | Surface Mount | AEC-Q200 | 0.260" L x 0.252" W (6.60mm x 6.40mm) | - | -55°C ~ 155°C | 100 kHz | 0.236" (6.00mm) |
|
SRP1265A-150MFIXED IND 15UH 9A 28 MOHM SMD |
3,027 |
|
Datasheet |
SRP1265A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Carbonyl Powder | ±20% | 9 A | 12.5A | - | Shielded | 28mOhm Max | 15 µH | 20 @ 100kHz | 7MHz | Surface Mount | AEC-Q200 | 0.531" L x 0.492" W (13.50mm x 12.50mm) | - | -55°C ~ 150°C | 100 kHz | 0.252" (6.40mm) |
|
|
SRP1265A-330MFIXED IND 33UH 8A 58 MOHM SMD |
2,451 |
|
Datasheet |
SRP1265A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Carbonyl Powder | ±20% | 8 A | 11A | - | Shielded | 58mOhm Max | 33 µH | 20 @ 100kHz | 5MHz | Surface Mount | AEC-Q200 | 0.531" L x 0.492" W (13.50mm x 12.50mm) | - | -55°C ~ 150°C | 100 kHz | 0.252" (6.40mm) |
|
IHLP5050EZER100M01FIXED IND 10UH 9A 25.5 MOHM SMD |
8,712 |
|
Datasheet |
IHLP-5050EZ-01 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | ±20% | 9 A | 16A | - | Shielded | 25.5mOhm Max | 10 µH | - | - | Surface Mount | - | 0.520" L x 0.508" W (13.20mm x 12.90mm) | - | -55°C ~ 125°C | 100 kHz | 0.197" (5.00mm) |
|
|
SRP1265A-470MFIXED IND 47UH 6.5A 90 MOHM SMD |
720 |
|
Datasheet |
SRP1265A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Carbonyl Powder | ±20% | 6.5 A | 9.5A | - | Shielded | 90mOhm Max | 47 µH | 20 @ 100kHz | 4MHz | Surface Mount | AEC-Q200 | 0.531" L x 0.492" W (13.50mm x 12.50mm) | - | -55°C ~ 150°C | 100 kHz | 0.252" (6.40mm) |
|

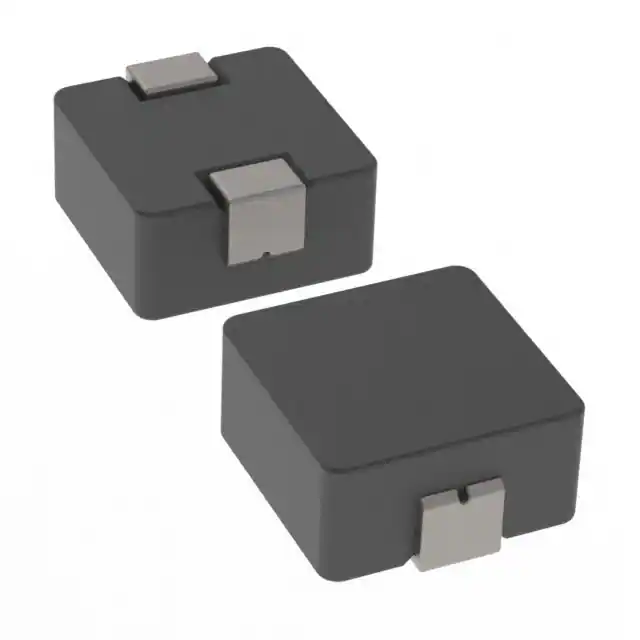

PA4343.102ANLTFIXED IND 1UH 29A 1.8 MOHM SMD |
63,889 |
|
Datasheet |
PA4343.XXXANLT | Nonstandard | Tape & Reel (TR) | Active | Molded | - | ±20% | 29 A | 36A | - | Shielded | 1.8mOhm Max | 1 µH | - | - | Surface Mount | AEC-Q200 | 0.531" L x 0.496" W (13.50mm x 12.60mm) | - | -55°C ~ 155°C | 100 kHz | 0.256" (6.50mm) |
|
74438356220FIXED IND 22UH 1.7A 280MOHM SMD |
3,863 |
|
Datasheet |
WE-MAPI | 1616 (4040 Metric) | Tape & Reel (TR) | Active | Molded | Iron Alloy | ±20% | 1.7 A | 1.85A | 4020 | Shielded | 280mOhm Max | 22 µH | - | 11MHz | Surface Mount | - | 0.161" L x 0.161" W (4.10mm x 4.10mm) | - | -40°C ~ 125°C | 100 kHz | 0.083" (2.10mm) |
|
|
74438356150FIXED IND 15UH 1.9A 230MOHM SMD |
1,337 |
|
Datasheet |
WE-MAPI | 1616 (4040 Metric) | Tape & Reel (TR) | Active | Molded | Iron Alloy | ±20% | 1.9 A | 2.1A | 4020 | Shielded | 230mOhm Max | 15 µH | - | 14MHz | Surface Mount | - | 0.161" L x 0.161" W (4.10mm x 4.10mm) | - | -40°C ~ 125°C | 100 kHz | 0.083" (2.10mm) |
|
SD53-150-RFIXED IND 15UH 1.1A 142 MOHM SMD |
31,959 |
|
Datasheet |
SD53 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 1.1 A | 1.1A | - | Shielded | 142mOhm Max | 15 µH | - | - | Surface Mount | - | 0.205" L x 0.205" W (5.20mm x 5.20mm) | - | -40°C ~ 125°C | 100 kHz | 0.118" (3.00mm) |
|
SLF12575T-331M1R0-HFIXED IND 330UH 1A 408 MOHM SMD |
1,256 |
|
Datasheet |
SLF-H | Nonstandard | Tape & Reel (TR) | Last Time Buy | Drum Core, Wirewound | Ferrite | ±20% | 1 A | 1A | - | Shielded | 408mOhm Max | 330 µH | - | - | Surface Mount | AEC-Q200 | 0.492" L x 0.492" W (12.50mm x 12.50mm) | - | -40°C ~ 125°C | 1 kHz | 0.309" (7.85mm) |
|
HCM1103-100-RFIXED IND 10UH 5A 44 MOHM SMD |
3,654 |
|
Datasheet |
HCM1103 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | ±20% | 5 A | 7.5A | - | Shielded | 44mOhm Max | 10 µH | - | - | Surface Mount | - | 0.437" L x 0.394" W (11.10mm x 10.00mm) | - | -55°C ~ 125°C | 100 kHz | 0.118" (3.00mm) |
|
IHLP2525EZER2R2M01FIXED IND 2.2UH 10A 13.6MOHM SMD |
2,496 |
|
Datasheet |
IHLP-2525EZ-01 | Nonstandard | Tape & Reel (TR) | Active | Molded | Iron Powder | ±20% | 10 A | 10A | - | Shielded | 13.6mOhm Max | 2.2 µH | - | - | Surface Mount | - | 0.270" L x 0.255" W (6.86mm x 6.47mm) | - | -55°C ~ 125°C | 100 kHz | 0.197" (5.00mm) |
|
74408943101FIXED IND 100UH 520MA 850MOHM SM |
14,113 |
|
Datasheet |
WE-SPC | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 520 mA | 680mA | - | Shielded | 850mOhm Max | 100 µH | - | 7.8MHz | Surface Mount | - | 0.189" L x 0.189" W (4.80mm x 4.80mm) | - | -40°C ~ 125°C | 100 kHz | 0.161" (4.10mm) |
|
MPL-AL6060-150FIXED IND 15UH 5.8A 35 MOHM SMD |
3,192 |
|
Datasheet |
MPL-AL | 2-SMD | Tape & Reel (TR) | Active | Molded | - | - | 5.8 A | 5.5A | - | Unshielded | 35mOhm | 15 µH | - | - | Surface Mount | - | 0.260" L x 0.252" W (6.60mm x 6.40mm) | - | -40°C ~ 155°C | 100 kHz | 0.236" (6.00mm) |
|
|
74408943033FIXED IND 3.3UH 2.6A 36 MOHM SMD |
2,690 |
|
Datasheet |
WE-SPC | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 2.6 A | 3.6A | - | Shielded | 36mOhm Max | 3.3 µH | - | 64MHz | Surface Mount | - | 0.189" L x 0.189" W (4.80mm x 4.80mm) | - | -40°C ~ 125°C | 100 kHz | 0.161" (4.10mm) |
|
7447713680FIXED IND 68UH 1.1A 330 MOHM SMD |
3,560 |
|
Datasheet |
WE-PD Performance | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 1.1 A | 1.6A | - | Shielded | 330mOhm Max | 68 µH | - | 9.4MHz | Surface Mount | AEC-Q200 | 0.394" L x 0.394" W (10.00mm x 10.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.118" (3.00mm) |
|
744373460047FIXED IND 470NH 11.5A 0.0042OHM |
2,646 |
|
Datasheet |
WE-LHMI | 2-SMD | Tape & Reel (TR) | Active | Molded | Iron Powder | ±20% | 11.5 A | 37.8A | - | Shielded | 4.2mOhm Max | 470 nH | - | 91MHz | Surface Mount | - | 0.287" L x 0.260" W (7.30mm x 6.60mm) | - | -40°C ~ 125°C | 100 kHz | 0.118" (3.00mm) |
|
|
74437346100FIXED IND 10UH 3A 0.085OHM SMD |
2,338 |
|
Datasheet |
WE-LHMI | 2-SMD | Tape & Reel (TR) | Active | Molded | Iron Powder | ±20% | 3 A | 9.8A | - | Shielded | 85mOhm Max | 10 µH | - | 15MHz | Surface Mount | - | 0.287" L x 0.260" W (7.30mm x 6.60mm) | - | -40°C ~ 125°C | 100 kHz | 0.122" (3.10mm) |
