Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Part Status | Type | Material - Core | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Supplier Device Package | Shielding | DC Resistance (DCR) | Inductance | Q @ Freq | Frequency - Self Resonant | Mounting Style | Ratings | Size / Dimension | Features | Operating Temperature | Inductance Frequency - Test | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SRN3015TA-220MFIXED IND 22UH 600MA 460MOHM SMD Bourns Inc. |
6,786 |
|
Datasheet |
SRN3015TA | 1212 (3030 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 600 mA | 550mA | - | Shielded | 460mOhm | 22 µH | 12 @ 100kHz | 20MHz | Surface Mount | AEC-Q200 | 0.118" L x 0.118" W (3.00mm x 3.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.059" (1.50mm) |
|
|
SRN3015TA-6R8MFIXED IND 6.8UH 1A 160 MOHM SMD Bourns Inc. |
5,871 |
|
Datasheet |
SRN3015TA | 1212 (3030 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 1 A | 1A | - | Shielded | 160mOhm | 6.8 µH | 12 @ 100kHz | 36MHz | Surface Mount | AEC-Q200 | 0.118" L x 0.118" W (3.00mm x 3.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.059" (1.50mm) |
|
SRN5040-220MFIXED IND 22UH 1.4A 152 MOHM SMD Bourns Inc. |
5,678 |
|
Datasheet |
SRN5040 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 1.4 A | 1.6A | - | Shielded | 152mOhm Max | 22 µH | 17 @ 2.52MHz | 11MHz | Surface Mount | - | 0.197" L x 0.197" W (5.00mm x 5.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.157" (4.00mm) |
|
|
SRN3015TA-2R2MFIXED IND 2.2UH 1.7A 60 MOHM SMD Bourns Inc. |
5,463 |
|
Datasheet |
SRN3015TA | 1212 (3030 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 1.7 A | 1.7A | - | Shielded | 60mOhm | 2.2 µH | 12 @ 100kHz | 64MHz | Surface Mount | AEC-Q200 | 0.118" L x 0.118" W (3.00mm x 3.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.059" (1.50mm) |
|

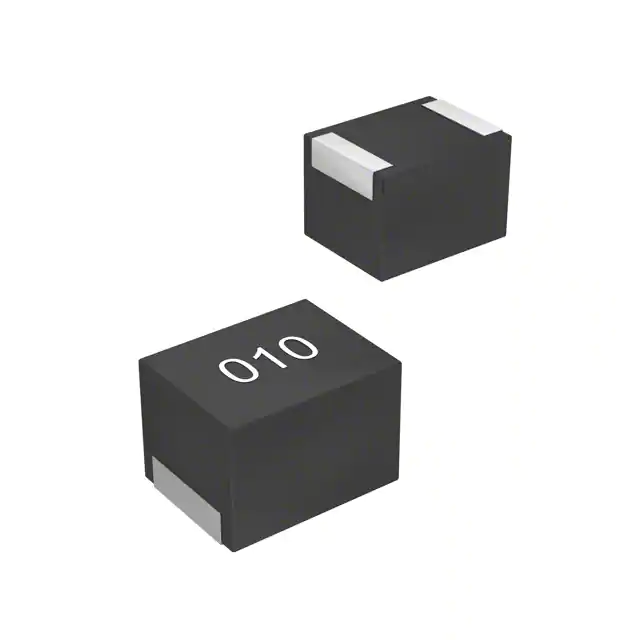

CMH322522-180KLFIXED IND 18UH 120MA 3.3 OHM SMD Bourns Inc. |
5,046 |
|
Datasheet |
CMH322522 | 1210 (3225 Metric) | Tape & Reel (TR) | Last Time Buy | Drum Core, Wirewound | Ferrite | ±10% | 120 mA | - | 1210 | Shielded | 3.3Ohm Max | 18 µH | 30 @ 2.52MHz | 20MHz | Surface Mount | - | 0.126" L x 0.098" W (3.20mm x 2.50mm) | - | -55°C ~ 125°C | 2.52 MHz | 0.094" (2.40mm) |
|
|
SRN5040-8R2MFIXED IND 8.2UH 2.2A 65 MOHM SMD Bourns Inc. |
4,751 |
|
Datasheet |
SRN5040 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 2.2 A | 2.4A | - | Shielded | 65mOhm Max | 8.2 µH | 15 @ 7.96MHz | 18MHz | Surface Mount | - | 0.197" L x 0.197" W (5.00mm x 5.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.157" (4.00mm) |
|
|
SRN3015TA-330MFIXED IND 33UH 450MA 800MOHM SMD Bourns Inc. |
3,681 |
|
Datasheet |
SRN3015TA | 1212 (3030 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 450 mA | 400mA | - | Shielded | 800mOhm | 33 µH | 12 @ 100kHz | 18MHz | Surface Mount | AEC-Q200 | 0.118" L x 0.118" W (3.00mm x 3.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.059" (1.50mm) |
|
|
SRN3015TA-100MFIXED IND 10UH 800MA 220MOHM SMD Bourns Inc. |
3,632 |
|
Datasheet |
SRN3015TA | 1212 (3030 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 800 mA | 750mA | - | Shielded | 220mOhm | 10 µH | 12 @ 100kHz | 28MHz | Surface Mount | AEC-Q200 | 0.118" L x 0.118" W (3.00mm x 3.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.059" (1.50mm) |
|
|
SRN5040-330MFIXED IND 33UH 1.2A 216 MOHM SMD Bourns Inc. |
3,241 |
|
Datasheet |
SRN5040 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 1.2 A | 1.3A | - | Shielded | 216mOhm Max | 33 µH | 17 @ 2.52MHz | 8MHz | Surface Mount | - | 0.197" L x 0.197" W (5.00mm x 5.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.157" (4.00mm) |
|
SRN6028C-4R7MFIXED IND 4.7UH 3A 38 MOHM SMD Bourns Inc. |
3,008 |
|
Datasheet |
SRN6028C | 2424 (6060 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 3.1 A | 3.2A | 6028 | Shielded | 30mOhm | 4.7 µH | 15 @ 100kHz | 50MHz | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.110" (2.80mm) |
