Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Part Status | Type | Material - Core | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Supplier Device Package | Shielding | DC Resistance (DCR) | Inductance | Q @ Freq | Frequency - Self Resonant | Mounting Style | Ratings | Size / Dimension | Features | Operating Temperature | Inductance Frequency - Test | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SRN3015-470MFIXED IND 47UH 400MA 1.406OHM SM Bourns Inc. |
24,059 |
|
Datasheet |
SRN3015 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 400 mA | 380mA | - | Shielded | 1.406Ohm Max | 47 µH | 27 @ 2.52MHz | 18MHz | Surface Mount | - | 0.118" L x 0.118" W (3.00mm x 3.00mm) | - | -40°C ~ 125°C | 1 MHz | 0.059" (1.50mm) |
|
|
SRN3015-3R3MFIXED IND 3.3UH 1.6A 112MOHM SMD Bourns Inc. |
17,024 |
|
Datasheet |
SRN3015 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 1.6 A | 1.4A | - | Shielded | 112mOhm Max | 3.3 µH | 10 @ 7.96MHz | 75MHz | Surface Mount | - | 0.118" L x 0.118" W (3.00mm x 3.00mm) | - | -40°C ~ 125°C | 1 MHz | 0.059" (1.50mm) |
|

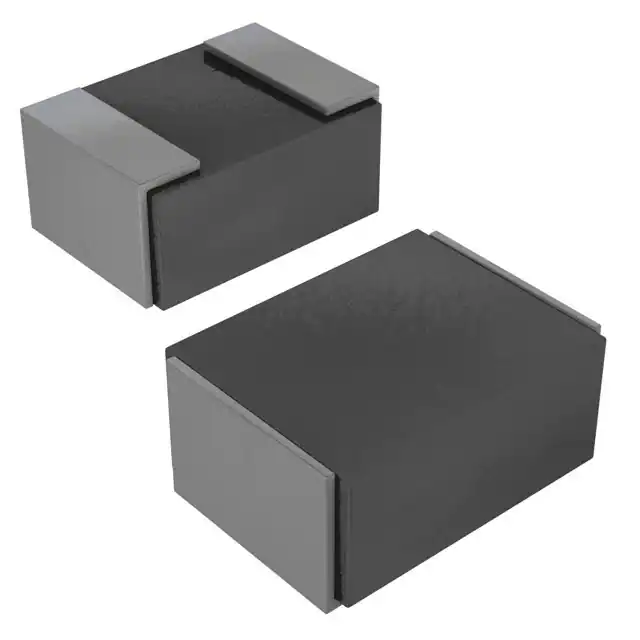

SRP2010-2R2MFIXED IND 2.2UH 1.7A 150MOHM SMD Bourns Inc. |
13,597 |
|
Datasheet |
SRP2010 | 0806 (2016 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | ±20% | 1.7 A | 1.9A | 0806 (2016 Metric) | Shielded | 150mOhm Max | 2.2 µH | - | - | Surface Mount | - | 0.079" L x 0.063" W (2.00mm x 1.60mm) | - | -40°C ~ 125°C | 1 MHz | 0.039" (1.00mm) |
|
SRP2512-R47MFIXED IND 470NH 4.5A 25 MOHM SMD Bourns Inc. |
11,988 |
|
Datasheet |
SRP2512 | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | ±20% | 4.5 A | 5.3A | 1008 | Shielded | 25mOhm Max | 470 nH | 39 @ 1MHz | - | Surface Mount | - | 0.098" L x 0.079" W (2.50mm x 2.00mm) | - | -40°C ~ 125°C | 1 MHz | 0.047" (1.20mm) |
|
SRN5040-4R7MFIXED IND 4.7UH 3.1A 35 MOHM SMD Bourns Inc. |
43,941 |
|
Datasheet |
SRN5040 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 3.1 A | 3.3A | - | Shielded | 35mOhm Max | 4.7 µH | 15 @ 7.96MHz | 27MHz | Surface Mount | - | 0.197" L x 0.197" W (5.00mm x 5.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.157" (4.00mm) |
|
|
SRN5040-100MFIXED IND 10UH 2.1A 68 MOHM SMD Bourns Inc. |
21,490 |
|
Datasheet |
SRN5040 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 2.1 A | 2.3A | - | Shielded | 68mOhm Max | 10 µH | 17 @ 7.96MHz | 17MHz | Surface Mount | - | 0.197" L x 0.197" W (5.00mm x 5.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.157" (4.00mm) |
|
|
SRN5040-2R2YFIXED IND 2.2UH 3.5A 21 MOHM SMD Bourns Inc. |
8,910 |
|
Datasheet |
SRN5040 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±30% | 3.5 A | 4.6A | - | Shielded | 21mOhm Max | 2.2 µH | 20 @ 7.96MHz | 40MHz | Surface Mount | - | 0.197" L x 0.197" W (5.00mm x 5.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.157" (4.00mm) |
|
|
SRN5040-270MFIXED IND 27UH 1.3A 198 MOHM SMD Bourns Inc. |
8,803 |
|
Datasheet |
SRN5040 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 1.3 A | 1.4A | - | Shielded | 198mOhm Max | 27 µH | 17 @ 2.52MHz | 9MHz | Surface Mount | - | 0.197" L x 0.197" W (5.00mm x 5.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.157" (4.00mm) |
|
|
SRN3015-330MFIXED IND 33UH 500MA 959MOHM SMD Bourns Inc. |
8,398 |
|
Datasheet |
SRN3015 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 500 mA | 460mA | - | Shielded | 959mOhm Max | 33 µH | 20 @ 2.52MHz | 22MHz | Surface Mount | - | 0.118" L x 0.118" W (3.00mm x 3.00mm) | - | -40°C ~ 125°C | 1 MHz | 0.059" (1.50mm) |
|
|
SRP2010-1R0MFIXED IND 1UH 2.6A 69 MOHM SMD Bourns Inc. |
7,532 |
|
Datasheet |
SRP2010 | 0806 (2016 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | ±20% | 2.6 A | 2.9A | 0806 (2016 Metric) | Shielded | 69mOhm Max | 1 µH | - | - | Surface Mount | - | 0.079" L x 0.063" W (2.00mm x 1.60mm) | - | -40°C ~ 125°C | 1 MHz | 0.037" (0.95mm) |
