Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

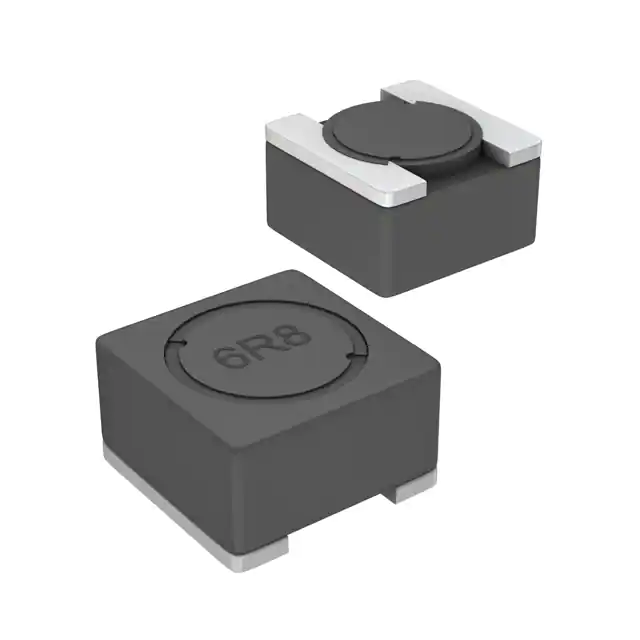

SRR4028-121YFIXED IND 120UH 470MA 700MOHM SM Bourns Inc. |
6,095 |
|
Datasheet |
SRR4028 | 1919 (4848 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 120 µH | ±30% | 470 mA | 280mA | Shielded | 700mOhm Max | 13.32 @ 796kHz | 8MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.189" L x 0.189" W (4.80mm x 4.80mm) | 0.118" (3.00mm) |
|
|
SRR4028-220YFIXED IND 22UH 930MA 185MOHM SMD Bourns Inc. |
5,224 |
|
Datasheet |
SRR4028 | 1919 (4848 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 22 µH | ±30% | 930 mA | 720mA | Shielded | 185mOhm Max | 8.26 @ 2.52MHz | 23MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.189" L x 0.189" W (4.80mm x 4.80mm) | 0.118" (3.00mm) |
|
|
SRR4028-820YFIXED IND 82UH 560MA 520MOHM SMD Bourns Inc. |
4,291 |
|
Datasheet |
SRR4028 | 1919 (4848 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 82 µH | ±30% | 560 mA | 320mA | Shielded | 520mOhm Max | 8.6 @ 2.52MHz | 8MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.189" L x 0.189" W (4.80mm x 4.80mm) | 0.118" (3.00mm) |
|
|
SRR4028-3R9YFIXED IND 3.9UH 1.72A 60MOHM SMD Bourns Inc. |
3,219 |
|
Datasheet |
SRR4028 | 1919 (4848 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 3.9 µH | ±30% | 1.72 A | 1.5A | Shielded | 60mOhm Max | 8.58 @ 7.96MHz | 56MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.189" L x 0.189" W (4.80mm x 4.80mm) | 0.118" (3.00mm) |
|
|
SRR4028-150YFIXED IND 15UH 1.03A 150MOHM SMD Bourns Inc. |
3,127 |
|
Datasheet |
SRR4028 | 1919 (4848 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 15 µH | ±30% | 1.03 A | 780mA | Shielded | 150mOhm Max | 9.66 @ 2.52MHz | 27MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.189" L x 0.189" W (4.80mm x 4.80mm) | 0.118" (3.00mm) |
|
|
SRR4028-1R8YFIXED IND 1.8UH 2.7A 25 MOHM SMD Bourns Inc. |
2,663 |
|
Datasheet |
SRR4028 | 1919 (4848 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1.8 µH | ±30% | 2.7 A | 2.2A | Shielded | 25mOhm Max | 9.18 @ 7.96MHz | 146MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.189" L x 0.189" W (4.80mm x 4.80mm) | 0.118" (3.00mm) |
|
|
SRR4028-6R8YFIXED IND 6.8UH 1.3A 90 MOHM SMD Bourns Inc. |
1,984 |
|
Datasheet |
SRR4028 | 1919 (4848 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 6.8 µH | ±30% | 1.3 A | 1.15A | Shielded | 90mOhm Max | 9.624 @ 7.96MHz | 77MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.189" L x 0.189" W (4.80mm x 4.80mm) | 0.118" (3.00mm) |
|

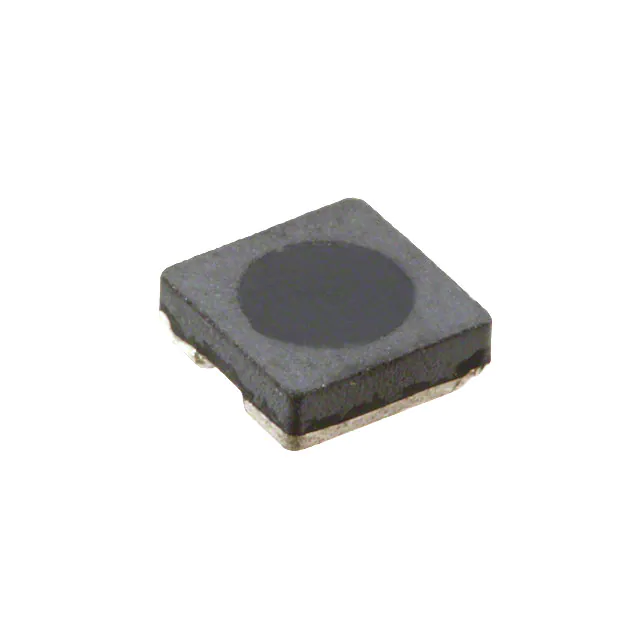

SRR3011-100YLFIXED IND 10UH 650MA 280MOHM SMD Bourns Inc. |
3,825 |
|
Datasheet |
SRR3011 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±30% | 650 mA | 500mA | Shielded | 280mOhm Max | 18 @ 2.52MHz | 42MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.150" L x 0.150" W (3.80mm x 3.80mm) | 0.051" (1.30mm) |
|
SRU5028-2R2YFIXED IND 2.2UH 3.2A 21 MOHM SMD Bourns Inc. |
1,209 |
|
Datasheet |
SRU5028 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 2.2 µH | ±30% | 3.2 A | 2.5A | Shielded | 21mOhm | 10 @ 7.96MHz | 130MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.205" L x 0.205" W (5.20mm x 5.20mm) | 0.118" (3.00mm) |
|

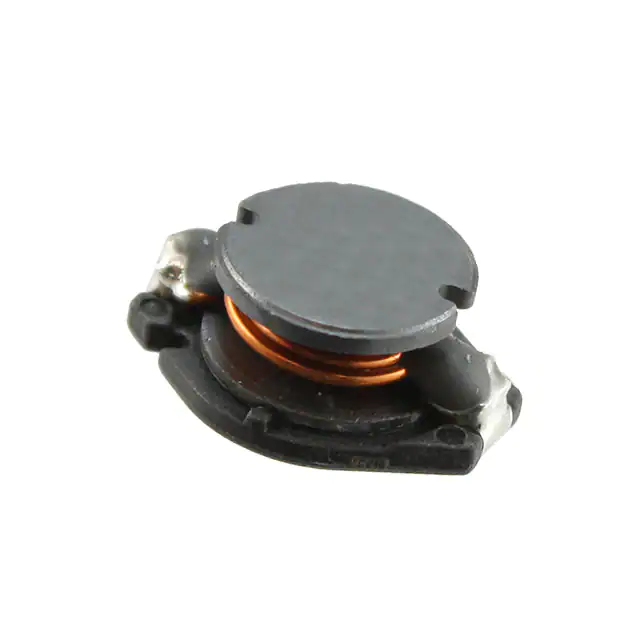

SDR1005-222KLFIXED IND 2.2MH 200MA 8.2OHM SMD Bourns Inc. |
57,544 |
|
Datasheet |
SDR1005 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 2.2 mH | ±10% | 200 mA | 240mA | Unshielded | 8.2Ohm Max | 85 @ 128kHz | 2MHz | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.500" L x 0.394" W (12.70mm x 10.00mm) | 0.197" (5.00mm) |
