Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SDR1005-151KLFIXED IND 150UH 800MA 590MOHM SM Bourns Inc. |
1,178 |
|
Datasheet |
SDR1005 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 150 µH | ±10% | 800 mA | 1A | Unshielded | 590mOhm Max | 58 @ 87kHz | 6MHz | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.500" L x 0.394" W (12.70mm x 10.00mm) | 0.197" (5.00mm) |
|
SRU2016-2R2YFIXED IND 2.2UH 1.6A 105MOHM SMD Bourns Inc. |
2,554 |
|
Datasheet |
SRU2016 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 2.2 µH | ±30% | 1.6 A | 1A | Shielded | 105mOhm Max | 8 @ 7.96MHz | 120MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.110" L x 0.110" W (2.80mm x 2.80mm) | 0.071" (1.80mm) |
|

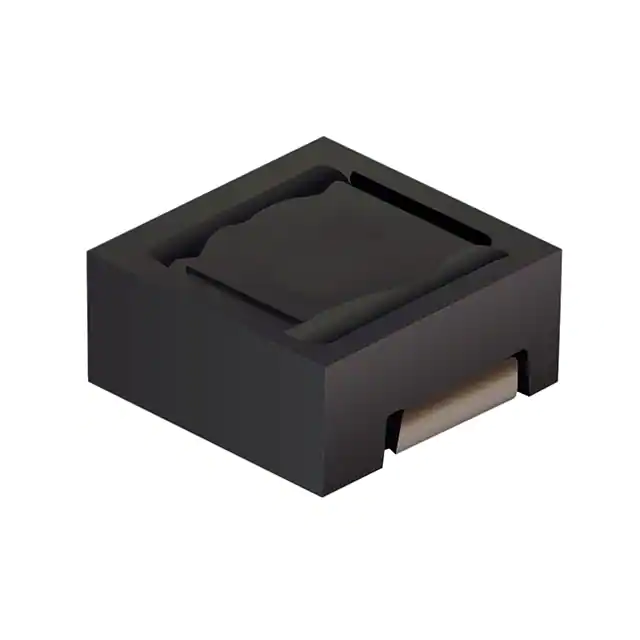

SRR3818A-100MFIXED IND 10UH 1.3A 235 MOHM SMD Bourns Inc. |
4,227 |
|
Datasheet |
SRR3818A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 1.3 A | 650mA | Shielded | 235mOhm Max | - | 40MHz | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.150" L x 0.150" W (3.80mm x 3.80mm) | 0.079" (2.00mm) |
|
|
SRR3818A-3R9YFIXED IND 3.9UH 2A 105 MOHM SMD Bourns Inc. |
3,498 |
|
Datasheet |
SRR3818A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 3.9 µH | ±30% | 2 A | 1.05A | Shielded | 105mOhm Max | - | 70MHz | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.150" L x 0.150" W (3.80mm x 3.80mm) | 0.079" (2.00mm) |
|

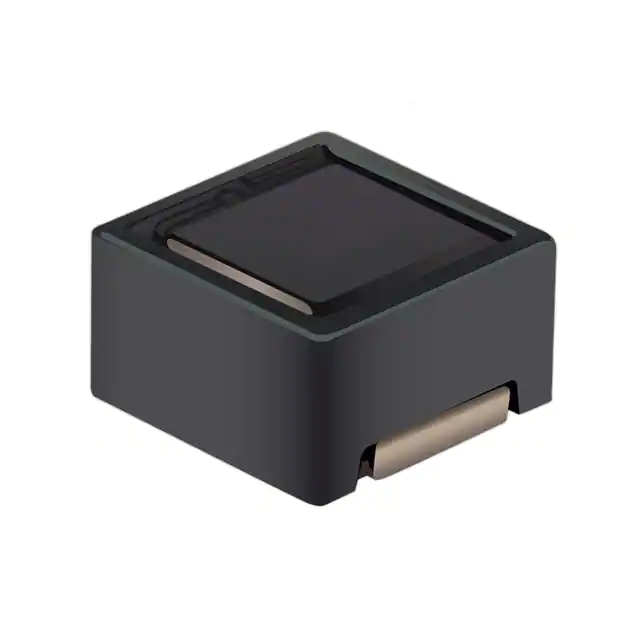

SRR4828A-4R7YFIXED IND 4.7UH 3A 54 MOHM SMD Bourns Inc. |
2,449 |
|
Datasheet |
SRR4828A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 4.7 µH | ±30% | 3 A | 1.6A | Shielded | 54mOhm Max | - | 50MHz | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.189" L x 0.189" W (4.80mm x 4.80mm) | 0.118" (3.00mm) |
|

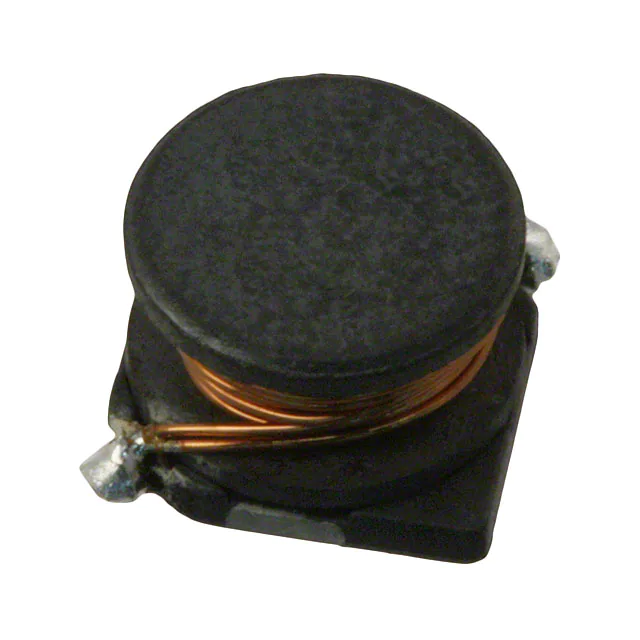

SDR7045-331KFIXED IND 330UH 420MA 1.24OHM SM Bourns Inc. |
2,037 |
|
Datasheet |
SDR7045 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 330 µH | ±10% | 420 mA | 400mA | Unshielded | 1.24Ohm Max | 20 @ 796kHz | 6MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.276" L x 0.276" W (7.00mm x 7.00mm) | 0.189" (4.80mm) |
|

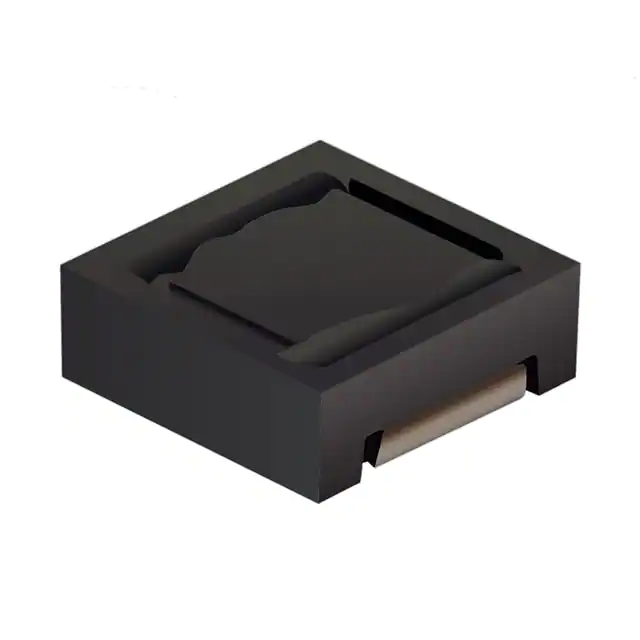

SRR4818A-220MFIXED IND 22UH 1.25A 360MOHM SMD Bourns Inc. |
1,974 |
|
Datasheet |
SRR4818A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 22 µH | ±20% | 1.25 A | 720mA | Shielded | 360mOhm Max | - | 25MHz | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.189" L x 0.189" W (4.80mm x 4.80mm) | 0.079" (2.00mm) |
|
RL622-1R0K-RCFIXED IND 1UH 10A 13 MOHM TH Bourns Inc. |
19,351 |
|
Datasheet |
RL622 | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 1 µH | ±10% | 10 A | - | Unshielded | 13mOhm Max | 20 @ 7.96MHz | 150MHz | - | -55°C ~ 105°C | 7.96 MHz | - | Through Hole | - | 0.335" Dia (8.50mm) | 0.433" (11.00mm) |
|
SRP7050WA-220MIND POWER HC 22UH 5A SHLD Bourns Inc. |
1,632 |
|
Datasheet |
SRP7050WA | Nonstandard | Tape & Reel (TR) | Active | - | - | 22 µH | ±20% | 5 A | 6.3A | Shielded | 93.5mOhm Max | 20 @ 100kHz | 7MHz | AEC-Q200 | -55°C ~ 165°C | 100 kHz | - | Surface Mount | - | 0.311" L x 0.287" W (7.90mm x 7.30mm) | 0.213" (5.40mm) |
|
|
SRP5030CC-2R2MIND SMD 2.2UH 7A Bourns Inc. |
1,913 |
|
Datasheet |
SRP5030CC | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Carbonyl Powder | 2.2 µH | ±20% | 7 A | 8A | Shielded | 32mOhm Max | - | 33MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.224" L x 0.205" W (5.70mm x 5.20mm) | 0.118" (3.00mm) |
