Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

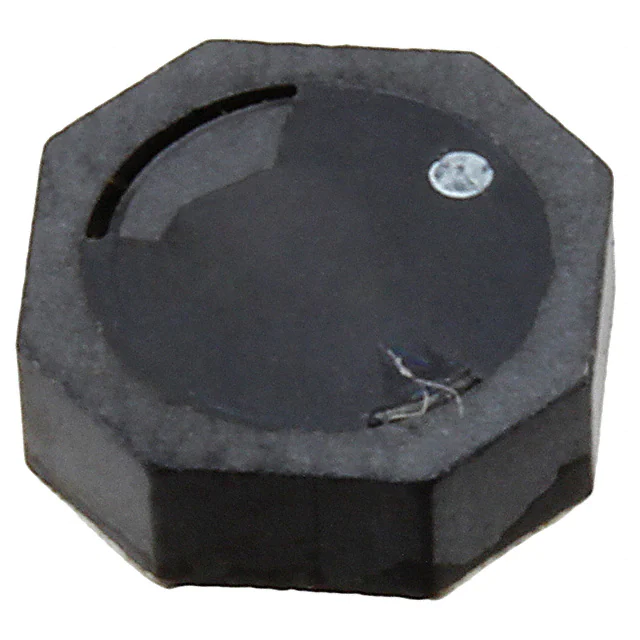

SRU6025-221YFIXED IND 220UH 420MA 1.25OHM SM Bourns Inc. |
2,330 |
|
Datasheet |
SRU6025 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 220 µH | ±30% | 420 mA | 240mA | Shielded | 1.25Ohm Max | 20 @ 2.52MHz | 4MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.256" L x 0.244" W (6.50mm x 6.20mm) | 0.110" (2.80mm) |
|
SRR0745A-100MFIXED IND 10UH 2.1A 52 MOHM SMD Bourns Inc. |
8,582 |
|
Datasheet |
SRR0745A | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 10 µH | ±20% | 2.1 A | 2.5A | Shielded | 52mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.287" L x 0.287" W (7.30mm x 7.30mm) | 0.185" (4.70mm) |
|

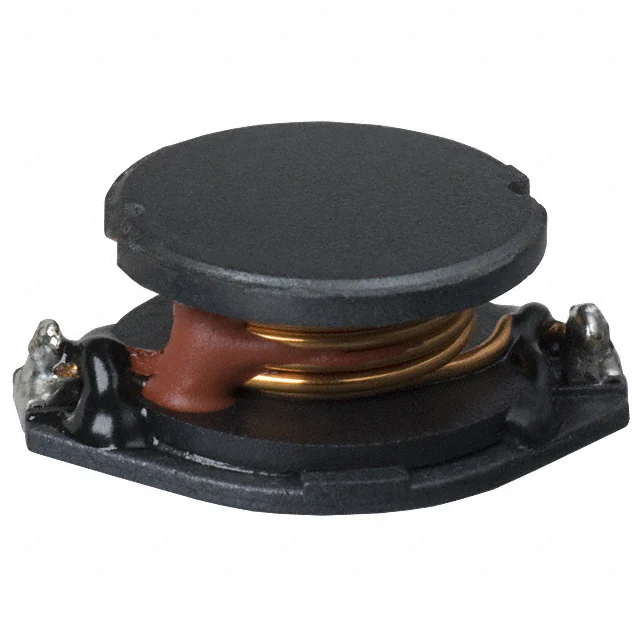

PM5022-102M-RCFIXED IND 1MH 500MA 1.8 OHM SMD Bourns Inc. |
7,262 |
|
Datasheet |
PM5022 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1 mH | ±20% | 500 mA | 1A | Unshielded | 1.8Ohm | 10 @ 2MHz | 252kHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.720" L x 0.551" W (18.30mm x 14.00mm) | 0.272" (6.90mm) |
|

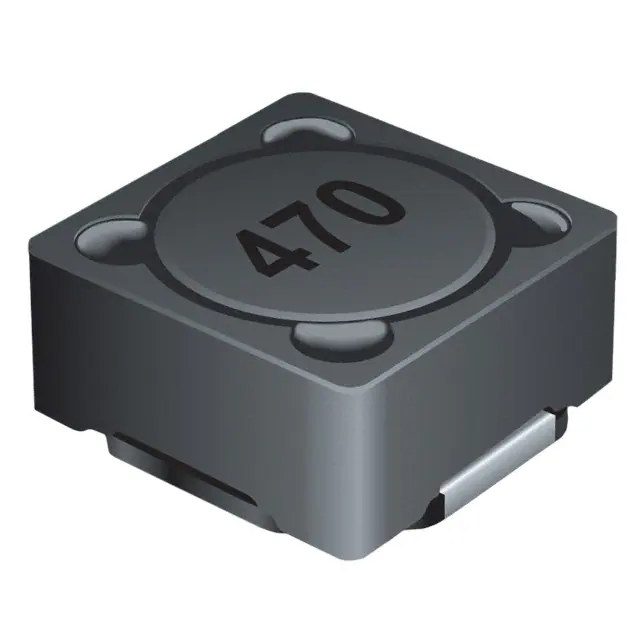

SRR0735A-120MFIXED IND 12UH 1.9A 85 MOHM SMD Bourns Inc. |
5,724 |
|
Datasheet |
SRR0735A | Nonstandard | Tape & Reel (TR) | Not For New Designs | Drum Core, Wirewound | Ferrite | 12 µH | ±20% | 1.9 A | 1.6A | Shielded | 85mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.287" L x 0.287" W (7.30mm x 7.30mm) | 0.146" (3.70mm) |
|
SRU8028-470YFIXED IND 47UH 1.2A 177 MOHM SMD Bourns Inc. |
4,186 |
|
Datasheet |
SRU8028 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 47 µH | ±30% | 1.2 A | 1A | Shielded | 177mOhm | 14 @ 2.52MHz | 12MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.122" (3.10mm) |
|
|
SRR0745A-101MFIXED IND 100UH 700MA 450MOHM SM Bourns Inc. |
3,996 |
|
Datasheet |
SRR0745A | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 100 µH | ±20% | 700 mA | 780mA | Shielded | 450mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.287" L x 0.287" W (7.30mm x 7.30mm) | 0.185" (4.70mm) |
|
|
SRR0735A-220MFIXED IND 22UH 1.2A 160 MOHM SMD Bourns Inc. |
3,498 |
|
Datasheet |
SRR0735A | Nonstandard | Tape & Reel (TR) | Not For New Designs | Drum Core, Wirewound | Ferrite | 22 µH | ±20% | 1.2 A | 1.28A | Shielded | 160mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.287" L x 0.287" W (7.30mm x 7.30mm) | 0.146" (3.70mm) |
|
|
PM5022-331M-RCFIXED IND 330UH 1A 580 MOHM SMD Bourns Inc. |
2,912 |
|
Datasheet |
PM5022 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 330 µH | ±20% | 1 A | 1.8A | Unshielded | 580mOhm | 18 @ 3.5MHz | 796kHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.720" L x 0.551" W (18.30mm x 14.00mm) | 0.272" (6.90mm) |
|
|
PM5022-221M-RCFIXED IND 220UH 1.1A 420MOHM SMD Bourns Inc. |
2,124 |
|
Datasheet |
PM5022 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 220 µH | ±20% | 1.1 A | 2.2A | Unshielded | 420mOhm | 20 @ 4.5MHz | 796kHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.720" L x 0.551" W (18.30mm x 14.00mm) | 0.272" (6.90mm) |
|
|
SRU8043-680YFIXED IND 68UH 1.2A 192 MOHM SMD Bourns Inc. |
38,356 |
|
Datasheet |
SRU8043 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 68 µH | ±30% | 1.2 A | 1A | Shielded | 192mOhm | 20 @ 2.52MHz | 7MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.181" (4.60mm) |
