Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Part Status | Type | Material - Core | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Supplier Device Package | Shielding | DC Resistance (DCR) | Inductance | Q @ Freq | Frequency - Self Resonant | Mounting Style | Ratings | Size / Dimension | Features | Operating Temperature | Inductance Frequency - Test | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SRP3020C-4R7MFIXED IND 4.7UH 1.8A 200MOHM SMD Bourns Inc. |
3,934 |
|
Datasheet |
SRP3020C | Nonstandard | Tape & Reel (TR) | Obsolete | - | Metal | ±20% | 1.8 A | 2A | - | Shielded | 200mOhm Max | 4.7 µH | 10 @ 100kHz | 29MHz | Surface Mount | - | 0.138" L x 0.126" W (3.50mm x 3.20mm) | - | -40°C ~ 125°C | 100 kHz | 0.079" (2.00mm) |
|
|
SRP3020C-R36MFIXED IND 360NH 7A 21 MOHM SMD Bourns Inc. |
3,514 |
|
Datasheet |
SRP3020C | Nonstandard | Tape & Reel (TR) | Obsolete | - | Metal | ±20% | 7 A | 8A | - | Shielded | 21mOhm Max | 360 nH | 10 @ 100kHz | 105MHz | Surface Mount | - | 0.138" L x 0.126" W (3.50mm x 3.20mm) | - | -40°C ~ 125°C | 100 kHz | 0.079" (2.00mm) |
|
|
SRP3020C-3R3MFIXED IND 3.3UH 2.6A 145MOHM SMD Bourns Inc. |
3,766 |
|
Datasheet |
SRP3020C | Nonstandard | Tape & Reel (TR) | Obsolete | - | Metal | ±20% | 2.6 A | 2.8A | - | Shielded | 145mOhm Max | 3.3 µH | 10 @ 100kHz | 145MHz | Surface Mount | - | 0.138" L x 0.126" W (3.50mm x 3.20mm) | - | -40°C ~ 125°C | 100 kHz | 0.079" (2.00mm) |
|
|
SRP3020C-5R6MFIXED IND 5.6UH 1.7A 238MOHM SMD Bourns Inc. |
3,288 |
|
Datasheet |
SRP3020C | Nonstandard | Tape & Reel (TR) | Obsolete | - | Metal | ±20% | 1.7 A | 1.9A | - | Shielded | 238mOhm Max | 5.6 µH | 10 @ 100kHz | 28MHz | Surface Mount | - | 0.138" L x 0.126" W (3.50mm x 3.20mm) | - | -40°C ~ 125°C | 100 kHz | 0.079" (2.00mm) |
|
|
SRP3020C-R68MFIXED IND 680NH 5.5A 29 MOHM SMD Bourns Inc. |
3,142 |
|
Datasheet |
SRP3020C | Nonstandard | Tape & Reel (TR) | Obsolete | - | Metal | ±20% | 5.5 A | 6A | - | Shielded | 29mOhm Max | 680 nH | 10 @ 100kHz | 72MHz | Surface Mount | - | 0.138" L x 0.126" W (3.50mm x 3.20mm) | - | -40°C ~ 125°C | 100 kHz | 0.079" (2.00mm) |
|
PT12133JFIXED IND 8.2MH 50MA 26 OHM TH Bourns Inc. |
3,081 |
|
Datasheet |
PT121 | Radial, Vertical Cylinder | Bulk | Obsolete | Wirewound | - | ±5% | 50 mA | - | - | Unshielded | 26Ohm Max | 8.2 mH | 90 @ 252kHz | 500kHz | Through Hole | - | 0.400" Dia (10.15mm) | - | -20°C ~ 80°C | 252 kHz | 0.500" (12.70mm) |
|
|
SRP3020C-1R0MFIXED IND 1UH 5A 36 MOHM SMD Bourns Inc. |
4,987 |
|
Datasheet |
SRP3020C | Nonstandard | Tape & Reel (TR) | Obsolete | - | Metal | ±20% | 5 A | 5.5A | - | Shielded | 36mOhm Max | 1 µH | 10 @ 100kHz | 66MHz | Surface Mount | - | 0.138" L x 0.126" W (3.50mm x 3.20mm) | - | -40°C ~ 125°C | 100 kHz | 0.079" (2.00mm) |
|

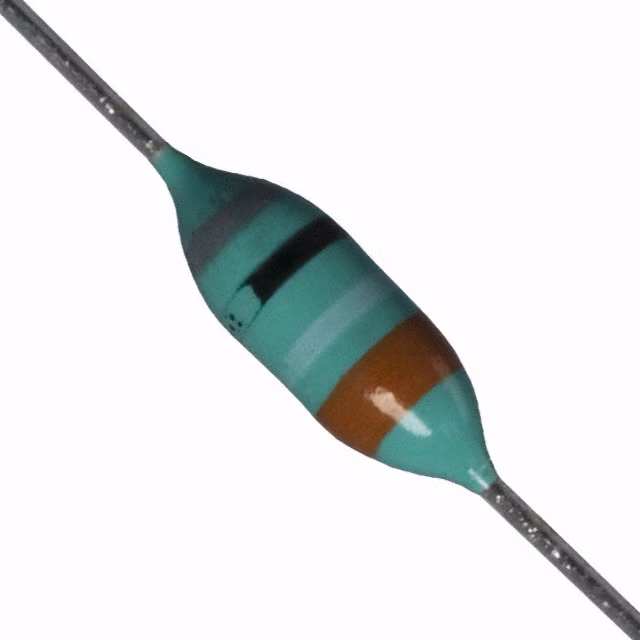

8230-58FIXED IND 39UH 180MA 3.6 OHM TH Bourns Inc. |
4,268 |
|
Datasheet |
8230 | Axial | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | ±10% | 180 mA | - | - | Unshielded | 3.6Ohm Max | 39 µH | 45 @ 2.5MHz | 22MHz | Through Hole | - | 0.120" Dia x 0.300" L (3.05mm x 7.62mm) | - | -55°C ~ 105°C | 2.5 MHz | - |
|

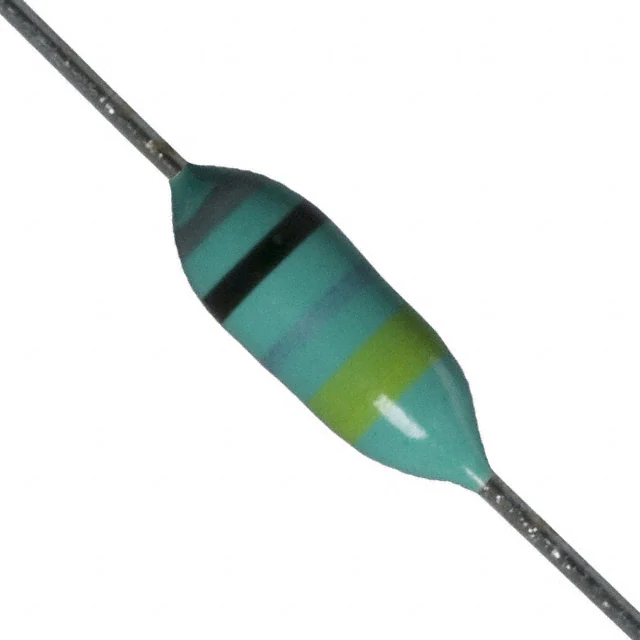

8230-60FIXED IND 47UH 165MA 4.5 OHM TH Bourns Inc. |
4,203 |
|
Datasheet |
8230 | Axial | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | ±10% | 165 mA | - | - | Unshielded | 4.5Ohm Max | 47 µH | 45 @ 2.5MHz | 20MHz | Through Hole | - | 0.120" Dia x 0.300" L (3.05mm x 7.62mm) | - | -55°C ~ 105°C | 2.5 MHz | - |
|

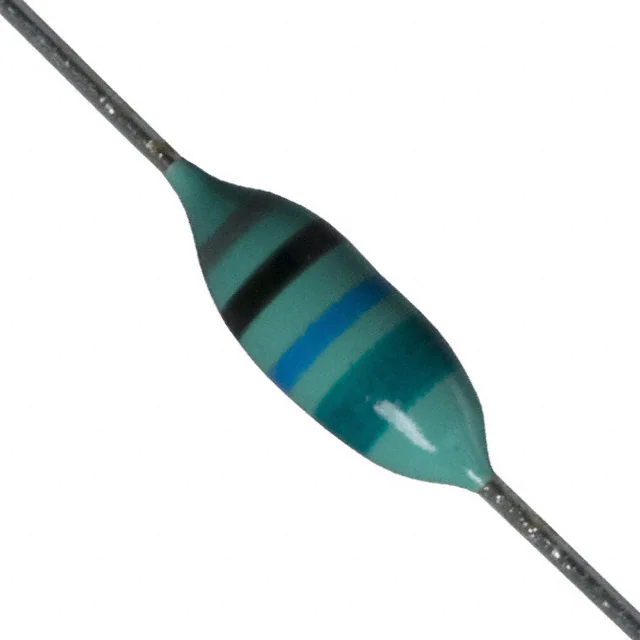

8230-62FIXED IND 56UH 145MA 5.7 OHM TH Bourns Inc. |
3,212 |
|
Datasheet |
8230 | Axial | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | ±10% | 145 mA | - | - | Unshielded | 5.7Ohm Max | 56 µH | 45 @ 2.5MHz | 18MHz | Through Hole | - | 0.120" Dia x 0.300" L (3.05mm x 7.62mm) | - | -55°C ~ 105°C | 2.5 MHz | - |
