Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SRU5028A-1R2YFIXED IND 1.2UH 3.5A 22 MOHM SMD Bourns Inc. |
0 |
|
Datasheet |
SRU5028A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1.2 µH | ±30% | 3.5 A | 3.4A | Shielded | 22mOhm Max | 10 @ 7.96MHz | 200MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.205" L x 0.205" W (5.20mm x 5.20mm) | 0.118" (3.00mm) |
|
|
SRU5028A-3R3YFIXED IND 3.3UH 2.8A 32 MOHM SMD Bourns Inc. |
0 |
|
Datasheet |
SRU5028A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 3.3 µH | ±30% | 2.8 A | 2.1A | Shielded | 32mOhm Max | 10 @ 7.96MHz | 90MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.205" L x 0.205" W (5.20mm x 5.20mm) | 0.118" (3.00mm) |
|
|
SRU5028A-6R8YFIXED IND 6.8UH 2A 56 MOHM SMD Bourns Inc. |
0 |
|
Datasheet |
SRU5028A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 6.8 µH | ±30% | 2 A | 1.55A | Shielded | 56mOhm Max | 10 @ 7.96MHz | 45MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.205" L x 0.205" W (5.20mm x 5.20mm) | 0.118" (3.00mm) |
|
|
SRU5028A-220YFIXED IND 22UH 950MA 210MOHM SMD Bourns Inc. |
0 |
|
Datasheet |
SRU5028A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 22 µH | ±30% | 950 mA | 850mA | Shielded | 210mOhm Max | 15 @ 2.52MHz | 18MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.205" L x 0.205" W (5.20mm x 5.20mm) | 0.118" (3.00mm) |
|
|
SRU5028A-680YFIXED IND 68UH 560MA 550MOHM SMD Bourns Inc. |
0 |
|
Datasheet |
SRU5028A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 68 µH | ±30% | 560 mA | 460mA | Shielded | 550mOhm Max | 13 @ 2.52MHz | 10MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.205" L x 0.205" W (5.20mm x 5.20mm) | 0.118" (3.00mm) |
|

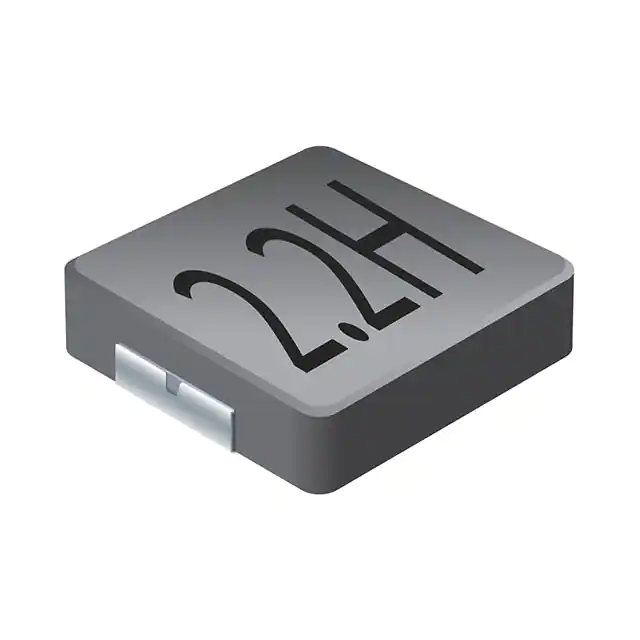

SRP3020C-R22YFIXED IND 220NH 8.5A 14 MOHM SMD Bourns Inc. |
0 |
|
Datasheet |
SRP3020C | Nonstandard | Tape & Reel (TR) | Obsolete | - | Metal | 220 nH | ±30% | 8.5 A | 9.2A | Shielded | 14mOhm Max | 10 @ 100kHz | 140MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.138" L x 0.126" W (3.50mm x 3.20mm) | 0.079" (2.00mm) |
|
|
SRP3020C-100MFIXED IND 10UH 1.3A 422 MOHM SMD Bourns Inc. |
0 |
|
Datasheet |
SRP3020C | Nonstandard | Tape & Reel (TR) | Obsolete | - | Metal | 10 µH | ±20% | 1.3 A | 1.3A | Shielded | 422mOhm Max | 10 @ 100kHz | 26MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.138" L x 0.126" W (3.50mm x 3.20mm) | 0.079" (2.00mm) |
|
|
SRP3020C-1R5MFIXED IND 1.5UH 3.7A 50 MOHM SMD Bourns Inc. |
0 |
|
Datasheet |
SRP3020C | Nonstandard | Tape & Reel (TR) | Obsolete | - | Metal | 1.5 µH | ±20% | 3.7 A | 4A | Shielded | 50mOhm Max | 10 @ 100kHz | 50MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.138" L x 0.126" W (3.50mm x 3.20mm) | 0.079" (2.00mm) |
|
|
SRP3020C-6R8MFIXED IND 6.8UH 1.6A 300MOHM SMD Bourns Inc. |
0 |
|
Datasheet |
SRP3020C | Nonstandard | Tape & Reel (TR) | Obsolete | - | Metal | 6.8 µH | ±20% | 1.6 A | 1.8A | Shielded | 300mOhm Max | 10 @ 100kHz | 27MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.138" L x 0.126" W (3.50mm x 3.20mm) | 0.079" (2.00mm) |
|
|
SRP3020C-R47MFIXED IND 470NH 6A 23 MOHM SMD Bourns Inc. |
0 |
|
Datasheet |
SRP3020C | Nonstandard | Tape & Reel (TR) | Obsolete | - | Metal | 470 nH | ±20% | 6 A | 7A | Shielded | 23mOhm Max | 10 @ 100kHz | 83MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.138" L x 0.126" W (3.50mm x 3.20mm) | 0.079" (2.00mm) |
