Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SRP6030VA-6R8MFIXED IND 6.8UH 6A 50 MOHM SMD Bourns Inc. |
1,401 |
|
Datasheet |
SRP6030VA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 6.8 µH | ±20% | 6 A | 6.5A | Shielded | 50mOhm Max | 10 @ 100kHz | 15MHz | AEC-Q200 | -55°C ~ 180°C | 100 kHz | - | Surface Mount | - | 0.280" L x 0.260" W (7.10mm x 6.60mm) | 0.118" (3.00mm) |
|
RL181S-104J-RCFIXED IND 100MH 9MA 82 OHM TH Bourns Inc. |
13,004 |
|
Datasheet |
RL181S | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 100 mH | ±5% | 9 mA | - | Shielded | 82Ohm Max | 100 @ 50kHz | 90kHz | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.413" Dia (10.50mm) | 0.551" (14.00mm) |
|
|
RL181S-393J-RCFIXED IND 39MH 15MA 45 OHM TH Bourns Inc. |
826 |
|
Datasheet |
RL181S | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 39 mH | ±5% | 15 mA | - | Shielded | 45Ohm Max | 100 @ 50kHz | 120kHz | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.413" Dia (10.50mm) | 0.551" (14.00mm) |
|
|
RL181S-103J-RCFIXED IND 10MH 25MA 12.1 OHM TH Bourns Inc. |
752 |
|
Datasheet |
RL181S | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 10 mH | ±5% | 25 mA | - | Shielded | 12.1Ohm Max | 100 @ 50kHz | 250kHz | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.413" Dia (10.50mm) | 0.551" (14.00mm) |
|
|
RL181S-333J-RCFIXED IND 33MH 17MA 26 OHM TH Bourns Inc. |
724 |
|
Datasheet |
RL181S | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 33 mH | ±5% | 17 mA | - | Shielded | 26Ohm Max | 100 @ 50kHz | 160kHz | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.413" Dia (10.50mm) | 0.551" (14.00mm) |
|
|
RL181S-222J-RCFIXED IND 2.2MH 60MA 5.2 OHM TH Bourns Inc. |
211 |
|
Datasheet |
RL181S | Radial, Vertical Cylinder | Tube | Active | Drum Core, Wirewound | Ferrite | 2.2 mH | ±5% | 60 mA | - | Shielded | 5.2Ohm Max | 70 @ 50kHz | 510kHz | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.413" Dia (10.50mm) | 0.551" (14.00mm) |
|

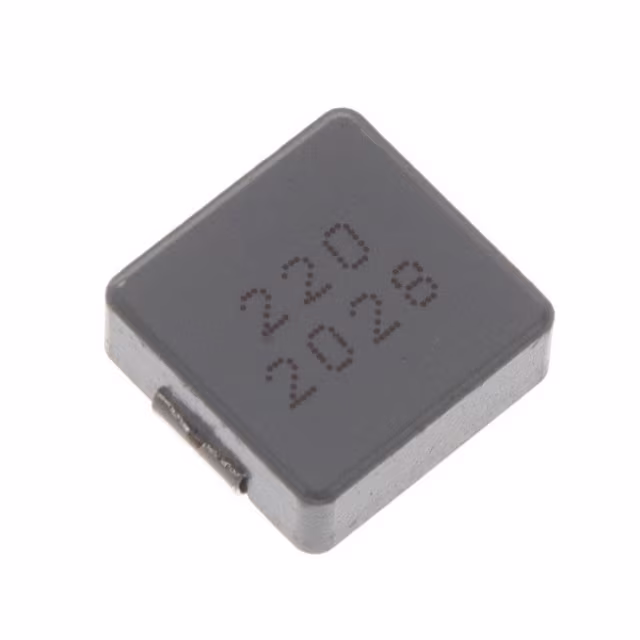

SRP1245A-220MFIXED IND 22UH 6.5A 58 MOHM SMD Bourns Inc. |
34,695 |
|
Datasheet |
SRP1245A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Carbonyl Powder | 22 µH | ±20% | 6.5 A | 10A | Shielded | 58mOhm Max | 20 @ 100kHz | 6MHz | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.531" L x 0.492" W (13.50mm x 12.50mm) | 0.197" (5.00mm) |
|

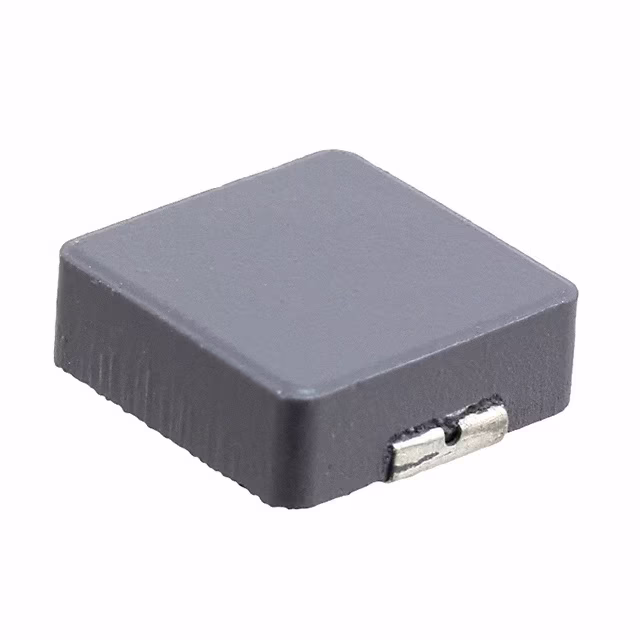

SRP1245A-R47MFIXED IND 470NH 38A 1.1 MOHM SMD Bourns Inc. |
27,415 |
|
Datasheet |
SRP1245A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Carbonyl Powder | 470 nH | ±20% | 38 A | 65A | Shielded | 1.1mOhm Max | 20 @ 100kHz | 70MHz | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.531" L x 0.492" W (13.50mm x 12.50mm) | 0.197" (5.00mm) |
|
SRP1250-100MFIXED IND 10UH 9A 25.5 MOHM SMD Bourns Inc. |
12,279 |
|
Datasheet |
SRP1250 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron | 10 µH | ±20% | 9 A | 16A | Shielded | 25.5mOhm Max | - | - | - | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.547" L x 0.531" W (13.90mm x 13.50mm) | 0.232" (5.90mm) |
|
|
SRP1250-3R3MFIXED IND 3.3UH 15A 9.2 MOHM SMD Bourns Inc. |
8,294 |
|
Datasheet |
SRP1250 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron | 3.3 µH | ±20% | 15 A | 32A | Shielded | 9.2mOhm Max | - | - | - | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.547" L x 0.531" W (13.90mm x 13.50mm) | 0.232" (5.90mm) |
