Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

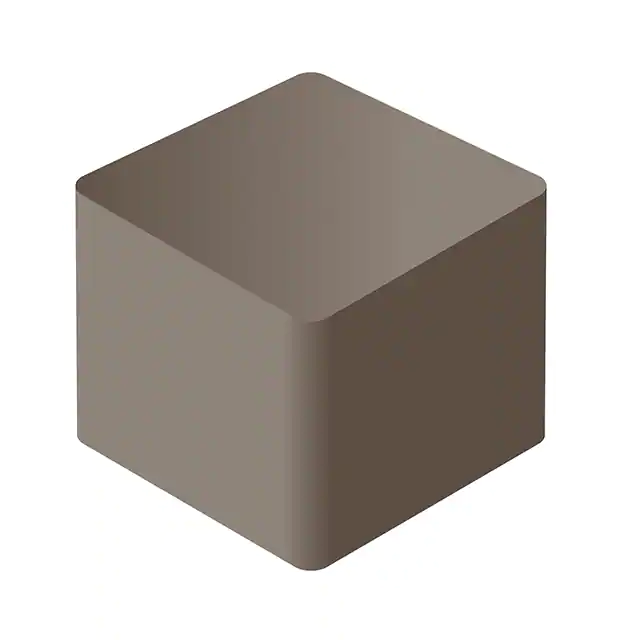

SRP6050CA-1R0MFIXED IND 1UH 20A 4.52 MOHM SMD Bourns Inc. |
1,320 |
|
Datasheet |
SRP6050CA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 1 µH | ±20% | 20 A | 23A | Shielded | 4.52mOhm Max | - | 50MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.260" L x 0.252" W (6.60mm x 6.40mm) | 0.197" (5.00mm) |
|
SRP1265CC-330MIND SMD 33UH 8A Bourns Inc. |
771 |
|
Datasheet |
SRP1265CC | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Carbonyl Powder | 33 µH | ±20% | 8 A | 9A | Shielded | 56mOhm Max | - | 5MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.531" L x 0.492" W (13.50mm x 12.50mm) | 0.256" (6.50mm) |
|
|
SRP1265CC-220MIND SMD 22UH 10A Bourns Inc. |
196 |
|
Datasheet |
SRP1265CC | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Carbonyl Powder | 22 µH | ±20% | 10 A | 12A | Shielded | 37mOhm Max | - | 6MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.531" L x 0.492" W (13.50mm x 12.50mm) | 0.256" (6.50mm) |
|
|
SRP6050CA-3R3MFIXED IND 3.3UH 11A 12.5MOHM SMD Bourns Inc. |
958 |
|
Datasheet |
SRP6050CA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 3.3 µH | ±20% | 11 A | 12.5A | Shielded | 12.5mOhm Max | - | 25MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.260" L x 0.252" W (6.60mm x 6.40mm) | 0.197" (5.00mm) |
|
|
SRP6050CA-4R7MFIXED IND 4.7UH 8.5A 18.4MOHM SM Bourns Inc. |
694 |
|
Datasheet |
SRP6050CA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 4.7 µH | ±20% | 8.5 A | 10.5A | Shielded | 18.4mOhm Max | - | 22MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.260" L x 0.252" W (6.60mm x 6.40mm) | 0.197" (5.00mm) |
|
SRP1040VA-470MFIXED IND 47UH 4A 167 MOHM SMD Bourns Inc. |
874 |
|
Datasheet |
SRP1040VA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 47 µH | ±20% | 4 A | 4.5A | Shielded | 167mOhm Max | 20 @ 100kHz | 5MHz | AEC-Q200 | -55°C ~ 180°C | 100 kHz | - | Surface Mount | - | 0.433" L x 0.394" W (11.00mm x 10.00mm) | 0.157" (4.00mm) |
|
|
SRP1040VA-150MFIXED IND 15UH 7A 50 MOHM SMD Bourns Inc. |
192 |
|
Datasheet |
SRP1040VA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 15 µH | ±20% | 7 A | 7.6A | Shielded | 50mOhm Max | 20 @ 100kHz | 9MHz | AEC-Q200 | -55°C ~ 180°C | 100 kHz | - | Surface Mount | - | 0.433" L x 0.394" W (11.00mm x 10.00mm) | 0.157" (4.00mm) |
|
|
SRP1040VA-2R2MFIXED IND 2.2UH 18A 7.2MOHM SMD Bourns Inc. |
470 |
|
Datasheet |
SRP1040VA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 2.2 µH | ±20% | 18 A | 21A | Shielded | 7.2mOhm Max | 15 @ 100kHz | 27MHz | AEC-Q200 | -55°C ~ 180°C | 100 kHz | - | Surface Mount | - | 0.433" L x 0.394" W (11.00mm x 10.00mm) | 0.157" (4.00mm) |
|
|
SRP1040VA-680MFIXED IND 68UH 3.5A 240MOHM SMD Bourns Inc. |
320 |
|
Datasheet |
SRP1040VA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 68 µH | ±20% | 3.5 A | 3.5A | Shielded | 240mOhm Max | 20 @ 100kHz | 4MHz | AEC-Q200 | -55°C ~ 180°C | 100 kHz | - | Surface Mount | - | 0.433" L x 0.394" W (11.00mm x 10.00mm) | 0.157" (4.00mm) |
|
SRP6060FA-8R2MFIXED IND 8.2UH 8A 24.8 MOHM SMD Bourns Inc. |
6,328 |
|
Datasheet |
SRP6060FA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 8.2 µH | ±20% | 8 A | 8.5A | Shielded | 24.8mOhm Max | - | 14MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.260" L x 0.252" W (6.60mm x 6.40mm) | 0.236" (6.00mm) |
