Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Part Status | Type | Material - Core | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Supplier Device Package | Shielding | DC Resistance (DCR) | Inductance | Q @ Freq | Frequency - Self Resonant | Mounting Style | Ratings | Size / Dimension | Features | Operating Temperature | Inductance Frequency - Test | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SRP1040-R80MFIXED IND 800NH 21A 3 MOHM SMD Bourns Inc. |
3,758 |
|
Datasheet |
SRP1040 | Nonstandard | Tape & Reel (TR) | Obsolete | - | Iron | ±20% | 21 A | 30A | - | Shielded | 3mOhm Max | 800 nH | - | - | Surface Mount | - | 0.465" L x 0.413" W (11.80mm x 10.50mm) | - | -55°C ~ 150°C | 100 kHz | 0.165" (4.20mm) |
|

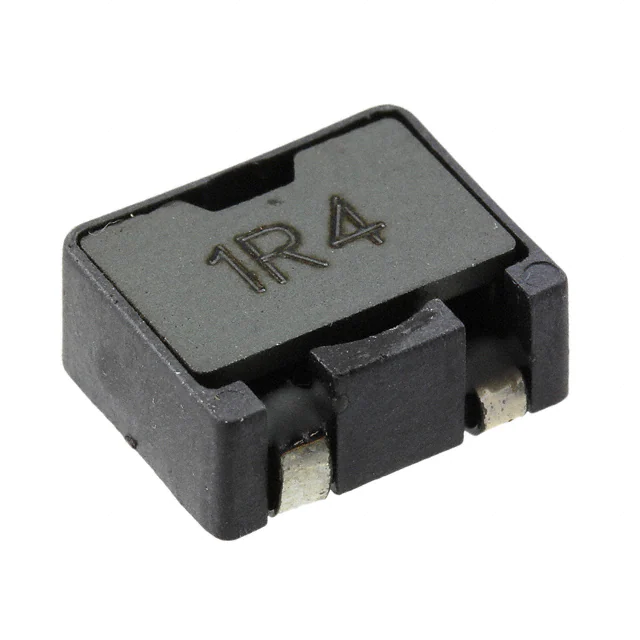

SRP1045-1R4MFIXED IND 1.4UH 13A 4.4 MOHM SMD Bourns Inc. |
2,482 |
|
Datasheet |
SRP1045 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | ±20% | 13 A | 14A | - | Shielded | 4.4mOhm Max | 1.4 µH | - | - | Surface Mount | - | 0.433" L x 0.368" W (11.00mm x 9.35mm) | - | -55°C ~ 150°C | 100 kHz | 0.189" (4.80mm) |
|
|
SRP1045-2R2MFIXED IND 2.2UH 9.5A 8.7MOHM SMD Bourns Inc. |
2,138 |
|
Datasheet |
SRP1045 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | ±20% | 9.5 A | 10A | - | Shielded | 8.7mOhm Max | 2.2 µH | - | - | Surface Mount | - | 0.433" L x 0.368" W (11.00mm x 9.35mm) | - | -55°C ~ 150°C | 100 kHz | 0.189" (4.80mm) |
|
|
SRP1045-3R2MFIXED IND 3.2UH 8A 10.4 MOHM SMD Bourns Inc. |
4,247 |
|
Datasheet |
SRP1045 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | ±20% | 8 A | 8A | - | Shielded | 10.4mOhm Max | 3.2 µH | - | - | Surface Mount | - | 0.433" L x 0.368" W (11.00mm x 9.35mm) | - | -55°C ~ 150°C | 100 kHz | 0.189" (4.80mm) |
|
|
SRP1045-R36YFIXED IND 360NH 23A 1.7 MOHM SMD Bourns Inc. |
3,815 |
|
Datasheet |
SRP1045 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | ±30% | 23 A | 26A | - | Shielded | 1.7mOhm Max | 360 nH | - | - | Surface Mount | - | 0.433" L x 0.368" W (11.00mm x 9.35mm) | - | -55°C ~ 150°C | 100 kHz | 0.189" (4.80mm) |
|

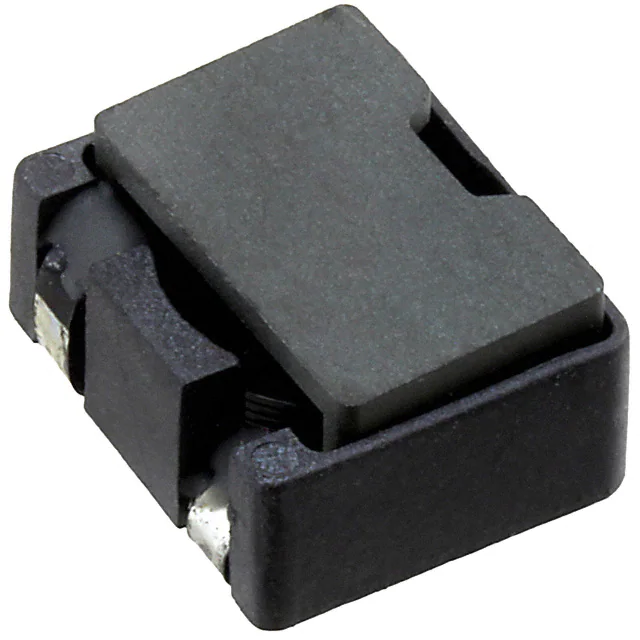

SRP1055-4R3MFIXED IND 4.3UH 10A 8.5 MOHM SMD Bourns Inc. |
4,337 |
|
Datasheet |
SRP1055 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | ±20% | 10 A | 8A | - | Shielded | 8.5mOhm Max | 4.3 µH | - | - | Surface Mount | - | 0.433" L x 0.368" W (11.00mm x 9.35mm) | - | -55°C ~ 150°C | 100 kHz | 0.228" (5.80mm) |
|
|
SRP1055-7R2MFIXED IND 7.2UH 7A 15.5 MOHM SMD Bourns Inc. |
2,239 |
|
Datasheet |
SRP1055 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | ±20% | 7 A | 6.2A | - | Shielded | 15.5mOhm Max | 7.2 µH | - | - | Surface Mount | - | 0.433" L x 0.368" W (11.00mm x 9.35mm) | - | -55°C ~ 150°C | 100 kHz | 0.228" (5.80mm) |
|

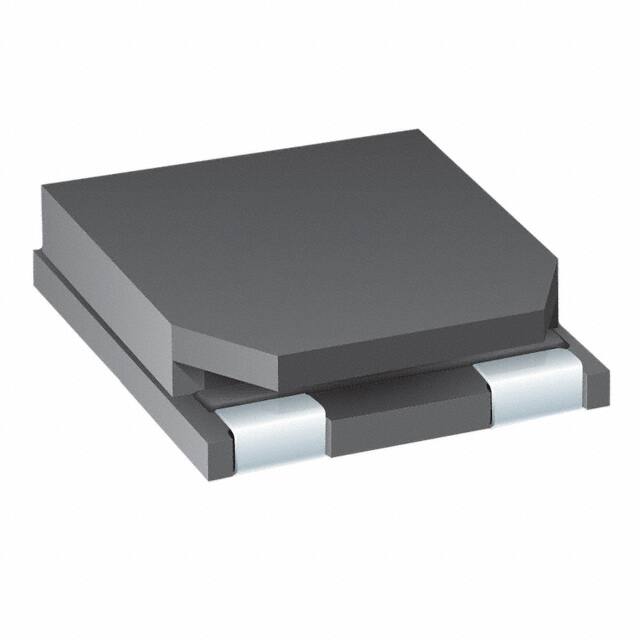

SRP1204-1R1MFIXED IND 1.1UH 12A 4.5 MOHM SMD Bourns Inc. |
2,185 |
|
Datasheet |
SRP1204 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | ±20% | 12 A | 13A | - | Shielded | 4.5mOhm Max | 1.1 µH | - | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | - | -55°C ~ 150°C | 100 kHz | 0.157" (4.00mm) |
|
|
SRP1204-R50MFIXED IND 550NH 13A 3 MOHM SMD Bourns Inc. |
2,210 |
|
Datasheet |
SRP1204 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | ±20% | 13 A | 14A | - | Shielded | 3mOhm Max | 550 nH | - | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | - | -55°C ~ 150°C | 100 kHz | 0.157" (4.00mm) |
|

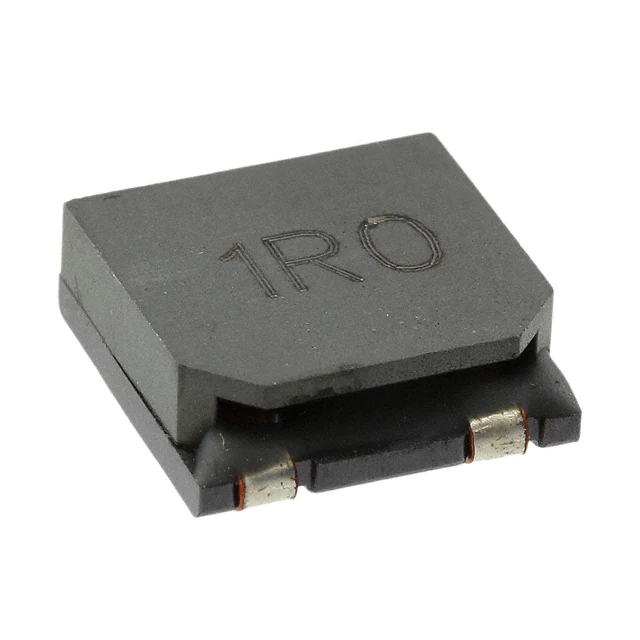

SRP1205-1R0YFIXED IND 1UH 14A 3.4 MOHM SMD Bourns Inc. |
2,496 |
|
Datasheet |
SRP1205 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | ±25% | 14 A | 22A | - | Shielded | 3.4mOhm Max | 1 µH | - | 75MHz | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | - | -55°C ~ 150°C | 100 kHz | 0.197" (5.00mm) |
