Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Part Status | Type | Material - Core | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Supplier Device Package | Shielding | DC Resistance (DCR) | Inductance | Q @ Freq | Frequency - Self Resonant | Mounting Style | Ratings | Size / Dimension | Features | Operating Temperature | Inductance Frequency - Test | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PM125S-821M-RCFIXED IND 820UH 360MA 2 OHM SMD Bourns Inc. |
3,724 |
|
Datasheet |
PM125S | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | ±20% | 360 mA | 260mA | - | Shielded | 2Ohm Max | 820 µH | - | 2MHz | Surface Mount | - | 0.496" L x 0.457" W (12.60mm x 11.60mm) | - | -40°C ~ 125°C | 1 MHz | 0.232" (5.90mm) |
|

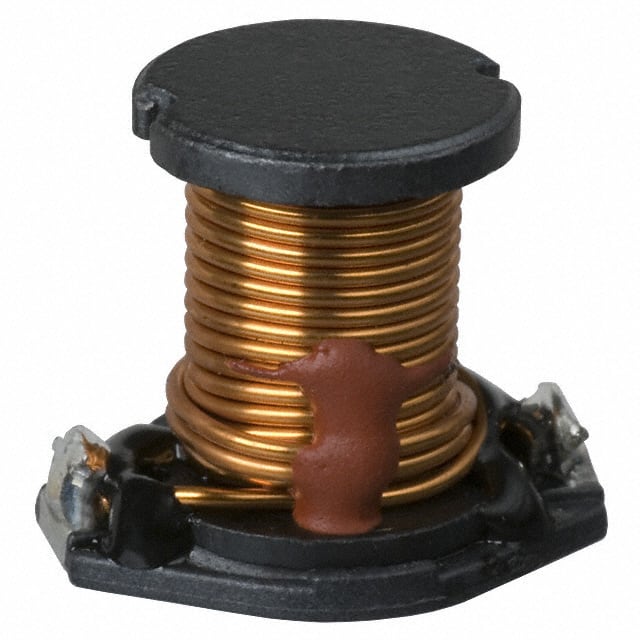

PM3340-471M-RCFIXED IND 470UH 300MA 950MOHM SM Bourns Inc. |
3,340 |
|
Datasheet |
PM3340 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | ±20% | 300 mA | 1A | - | Unshielded | 950mOhm Max | 470 µH | - | - | Surface Mount | - | 0.512" L x 0.402" W (13.00mm x 10.20mm) | - | -55°C ~ 105°C | 100 kHz | 0.453" (11.50mm) |
|

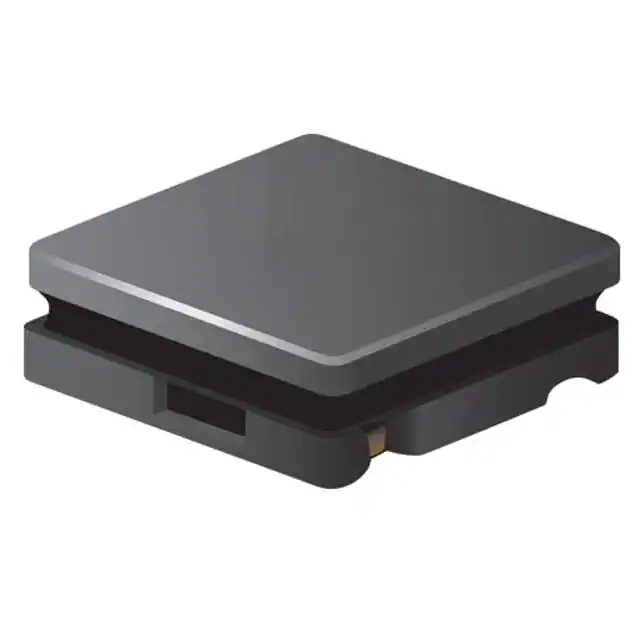

SRN3010-1R0YFIXED IND 1UH 2.3A 63 MOHM SMD Bourns Inc. |
3,529 |
|
- |
SRN3010 | 1212 (3030 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | ±30% | 2.3 A | 2.3A | 3010 | Shielded | 63mOhm Max | 1 µH | 7 @ 7.96MHz | 140MHz | Surface Mount | - | 0.118" L x 0.118" W (3.00mm x 3.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.039" (1.00mm) |
|
|
SRN3010-1R2YFIXED IND 1.2UH 2.1A 81 MOHM SMD Bourns Inc. |
2,624 |
|
- |
SRN3010 | 1212 (3030 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | ±30% | 2.1 A | 1.9A | 3010 | Shielded | 81mOhm Max | 1.2 µH | 7 @ 7.96MHz | 130MHz | Surface Mount | - | 0.118" L x 0.118" W (3.00mm x 3.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.039" (1.00mm) |
|
|
SRN3010-1R5YFIXED IND 1.5UH 2A 91 MOHM SMD Bourns Inc. |
3,535 |
|
- |
SRN3010 | 1212 (3030 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | ±30% | 2 A | 1.65A | 3010 | Shielded | 91mOhm Max | 1.5 µH | 7 @ 7.96MHz | 110MHz | Surface Mount | - | 0.118" L x 0.118" W (3.00mm x 3.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.039" (1.00mm) |
|
|
SRN3010-2R2MFIXED IND 2.2UH 1.9A 96 MOHM SMD Bourns Inc. |
4,801 |
|
- |
SRN3010 | 1212 (3030 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | ±20% | 1.9 A | 1.3A | 3010 | Shielded | 96mOhm Max | 2.2 µH | 7 @ 7.96MHz | 85MHz | Surface Mount | - | 0.118" L x 0.118" W (3.00mm x 3.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.039" (1.00mm) |
|
|
SRN3010-3R3MFIXED IND 3.3UH 1.8A 156MOHM SMD Bourns Inc. |
2,397 |
|
- |
SRN3010 | 1212 (3030 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | ±20% | 1.8 A | 1.05A | 3010 | Shielded | 156mOhm Max | 3.3 µH | 7 @ 7.96MHz | - | Surface Mount | - | 0.118" L x 0.118" W (3.00mm x 3.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.039" (1.00mm) |
|
|
SRN3010-4R7MFIXED IND 4.7UH 1.7A 210MOHM SMD Bourns Inc. |
4,589 |
|
- |
SRN3010 | 1212 (3030 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | ±20% | 1.7 A | 850mA | 3010 | Shielded | 210mOhm Max | 4.7 µH | 7 @ 7.96MHz | 60MHz | Surface Mount | - | 0.118" L x 0.118" W (3.00mm x 3.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.039" (1.00mm) |
|
|
SRN3010-6R8MFIXED IND 6.8UH 1.3A 312MOHM SMD Bourns Inc. |
4,748 |
|
- |
SRN3010 | 1212 (3030 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | ±20% | 1.3 A | 700mA | 3010 | Shielded | 312mOhm Max | 6.8 µH | 7 @ 7.96MHz | 50MHz | Surface Mount | - | 0.118" L x 0.118" W (3.00mm x 3.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.039" (1.00mm) |
|
|
SRN3010-100MFIXED IND 10UH 900MA 420MOHM SMD Bourns Inc. |
4,972 |
|
- |
SRN3010 | 1212 (3030 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | ±20% | 900 mA | 600mA | 3010 | Shielded | 420mOhm Max | 10 µH | 11 @ 2.52MHz | 40MHz | Surface Mount | - | 0.118" L x 0.118" W (3.00mm x 3.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.039" (1.00mm) |
