Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Part Status | Type | Material - Core | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Supplier Device Package | Shielding | DC Resistance (DCR) | Inductance | Q @ Freq | Frequency - Self Resonant | Mounting Style | Ratings | Size / Dimension | Features | Operating Temperature | Inductance Frequency - Test | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

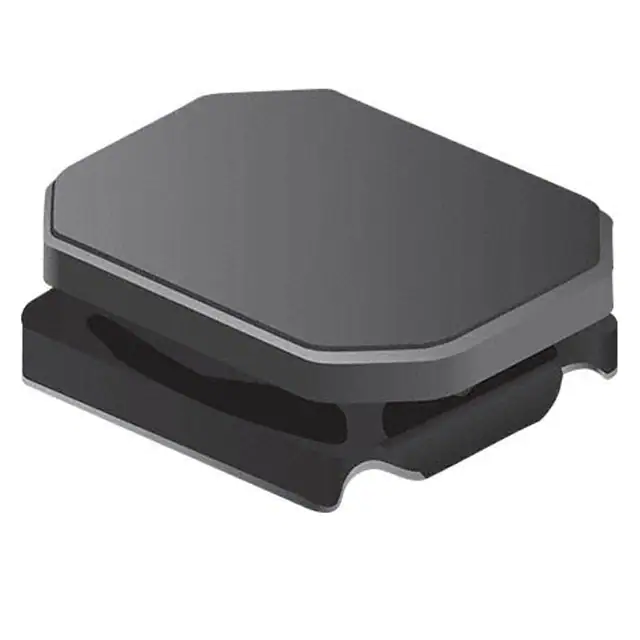

SRN3010-150MFIXED IND 15UH 800MA 612MOHM SMD Bourns Inc. |
2,617 |
|
- |
SRN3010 | 1212 (3030 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | ±20% | 800 mA | 500mA | 3010 | Shielded | 612mOhm Max | 15 µH | 11 @ 2.52MHz | 30MHz | Surface Mount | - | 0.118" L x 0.118" W (3.00mm x 3.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.039" (1.00mm) |
|
|
SRN3010-220MFIXED IND 22UH 700MA 936MOHM SMD Bourns Inc. |
2,170 |
|
- |
SRN3010 | 1212 (3030 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | ±20% | 700 mA | 400mA | 3010 | Shielded | 936mOhm Max | 22 µH | 14 @ 2.52MHz | 23MHz | Surface Mount | - | 0.118" L x 0.118" W (3.00mm x 3.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.039" (1.00mm) |
|
SRN3010-330MFIXED IND 33UH 500MA 1.32OHM SMD Bourns Inc. |
4,002 |
|
- |
SRN3010 | 1212 (3030 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | ±20% | 500 mA | 320mA | 3010 | Shielded | 1.32Ohm Max | 33 µH | 14 @ 2.52MHz | 20MHz | Surface Mount | - | 0.118" L x 0.118" W (3.00mm x 3.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.039" (1.00mm) |
|
|
SRN3010-470MFIXED IND 47UH 350MA 1.92OHM SMD Bourns Inc. |
2,496 |
|
- |
SRN3010 | 1212 (3030 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | ±20% | 350 mA | 280mA | 3010 | Shielded | 1.92Ohm Max | 47 µH | 20 @ 2.52MHz | 16MHz | Surface Mount | - | 0.118" L x 0.118" W (3.00mm x 3.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.039" (1.00mm) |
|

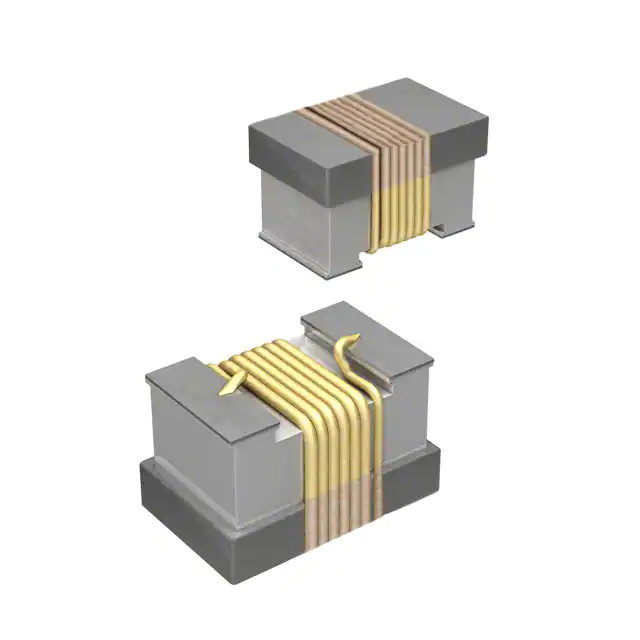

CW100505-27NJ3FIXED IND 27NH 400MA 298MOHM SMD Bourns Inc. |
4,476 |
|
Datasheet |
CW100505 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | ±5% | 400 mA | - | 0402 (1005 Metric) | Unshielded | 298mOhm | 27 nH | 26 @ 250MHz | 2.48GHz | Surface Mount | - | 0.039" L x 0.022" W (1.00mm x 0.55mm) | - | -55°C ~ 125°C | 250 MHz | 0.024" (0.60mm) |
|
|
CW100505-56NJ3FIXED IND 56NH 200MA 970MOHM SMD Bourns Inc. |
3,889 |
|
Datasheet |
CW100505 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | ±5% | 200 mA | - | 0402 (1005 Metric) | Unshielded | 970mOhm | 56 nH | 22 @ 200MHz | 1.76GHz | Surface Mount | - | 0.039" L x 0.022" W (1.00mm x 0.55mm) | - | -55°C ~ 125°C | 200 MHz | 0.024" (0.60mm) |
|
|
CW100505-39NJ3FIXED IND 39NH 320MA 550MOHM SMD Bourns Inc. |
4,020 |
|
Datasheet |
CW100505 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | ±5% | 320 mA | - | 0402 (1005 Metric) | Unshielded | 550mOhm | 39 nH | 25 @ 250MHz | 2.1GHz | Surface Mount | - | 0.039" L x 0.022" W (1.00mm x 0.55mm) | - | -55°C ~ 125°C | 250 MHz | 0.024" (0.60mm) |
|

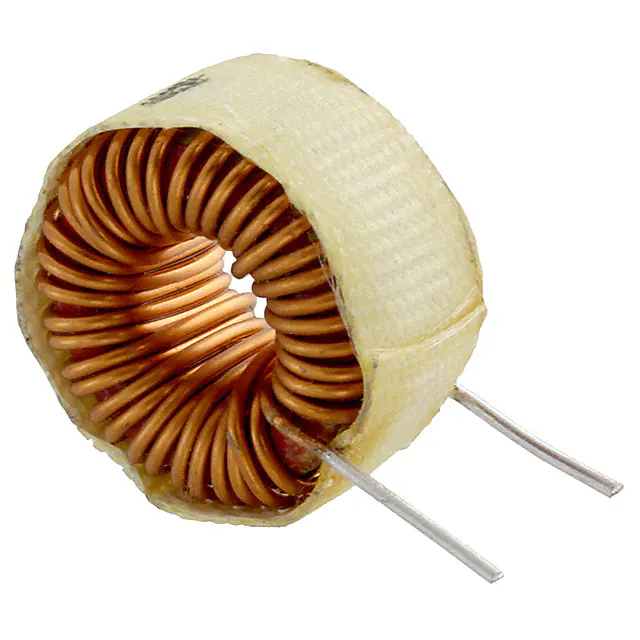

2000-1R5-V-RCFIXED IND 1.5UH 18.7A 2 MOHM TH Bourns Inc. |
2,695 |
|
Datasheet |
2000 | Radial, Vertical (Open) | Bulk | Obsolete | Toroidal | - | ±20% | 18.7 A | - | - | Unshielded | 2mOhm Max | 1.5 µH | - | - | Through Hole | - | 0.680" Dia x 0.410" W (17.27mm x 10.41mm) | - | -55°C ~ 105°C | 1 kHz | - |
|
|
2000-2R7-H-RCFIXED IND 2.7UH 14.7A 3 MOHM TH Bourns Inc. |
2,868 |
|
Datasheet |
2000 | Radial, Horizontal (Open) | Bulk | Obsolete | Toroidal | - | ±20% | 14.7 A | - | - | Unshielded | 3mOhm Max | 2.7 µH | - | - | Through Hole | - | 0.680" Dia (17.27mm) | - | -55°C ~ 105°C | 1 kHz | 0.410" (10.41mm) |
|
|
2000-R8-V-RCFIXED IND 800NH 22.1A 1.4MOHM TH Bourns Inc. |
4,256 |
|
Datasheet |
2000 | Radial, Vertical (Open) | Bulk | Obsolete | Toroidal | - | ±20% | 22.1 A | - | - | Unshielded | 1.4mOhm Max | 800 nH | - | - | Through Hole | - | 0.680" Dia x 0.410" W (17.27mm x 10.41mm) | - | -55°C ~ 105°C | 1 kHz | - |
