Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
74437368047FIXED IND 4.7UH 7A 0.0155OHM SMD |
3,667 |
|
Datasheet |
WE-LHMI | 2-SMD | Tape & Reel (TR) | Active | Molded | Iron Powder | 4.7 µH | ±20% | 7 A | 26A | Shielded | 15.5mOhm Max | - | 16MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.433" L x 0.394" W (11.00mm x 10.00mm) | 0.157" (4.00mm) |
|
7447709470FIXED IND 47UH 3.8A 60 MOHM SMD |
3,651 |
|
Datasheet |
WE-PD | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 47 µH | ±20% | 3.8 A | 4.5A | Shielded | 60mOhm Max | - | 6.5MHz | AEC-Q200 | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.394" (10.00mm) |
|
7447709471FIXED IND 470UH 1.4A 560MOHM SMD |
1,299 |
|
Datasheet |
WE-PD | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 470 µH | ±20% | 1.4 A | 1.5A | Shielded | 560mOhm Max | - | 1.8MHz | AEC-Q200 | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.394" (10.00mm) |
|
7447709221FIXED IND 220UH 1.8A 300MOHM SMD |
981 |
|
Datasheet |
WE-PD | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 220 µH | ±20% | 1.8 A | 2.2A | Shielded | 300mOhm Max | - | 2.7MHz | AEC-Q200 | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.394" (10.00mm) |
|
7447709150FIXED IND 15UH 6.5A 26 MOHM SMD |
169 |
|
Datasheet |
WE-PD | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 15 µH | ±20% | 6.5 A | 8A | Shielded | 26mOhm Max | - | 17MHz | AEC-Q200 | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.394" (10.00mm) |
|
7443320820FIXED IND 8.2UH 13A 11.8MOHM SMD |
3,224 |
|
Datasheet |
WE-HCC | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 8.2 µH | ±20% | 13 A | 12A | Shielded | 11.8mOhm Max | - | 34MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.476" L x 0.449" W (12.10mm x 11.40mm) | 0.394" (10.00mm) |
|
7447471220FIXED IND 22UH 3.7A 48 MOHM TH |
557 |
|
Datasheet |
WE-TIS | Radial, Vertical Cylinder | Tray | Active | Drum Core, Wirewound | Ferrite | 22 µH | ±20% | 3.7 A | 3A | Shielded | 48mOhm Max | - | 26MHz | - | -40°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.433" Dia (11.00mm) | 0.453" (11.50mm) |
|

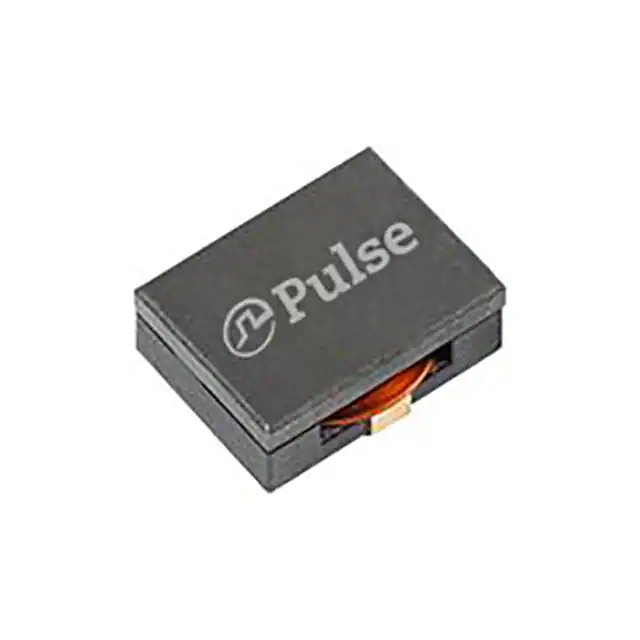

PA5119.421NLTFIXED IND 420NH 16A 3.15MOHM SMD |
1,755 |
|
Datasheet |
PA5119.XXXNLT | Nonstandard | Tape & Reel (TR) | Active | - | - | 420 nH | ±10% | 16 A | 42A | Shielded | 3.15mOhm | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.480" L x 0.386" W (12.20mm x 9.80mm) | 0.197" (5.00mm) |
|
FPT705-230-RFIXED IND 230NH 13A 0.65MOHM SMD |
5,166 |
|
Datasheet |
FLAT-PAC, FPT705 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 230 nH | ±10% | 13 A | 23A | Shielded | 0.65mOhm | - | - | - | -55°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.283" L x 0.276" W (7.20mm x 7.00mm) | 0.211" (5.35mm) |
|
60B224CFIXED IND 220UH 5A 50 MOHM SMD |
4,020 |
|
Datasheet |
6000B | Nonstandard | Tray | Active | Wirewound | - | 220 µH | ±15% | 5 A | - | Unshielded | 50mOhm Max | - | 3.21MHz | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 1.063" L x 0.768" W (27.00mm x 19.50mm) | 0.787" (20.00mm) |
|
|
60B334CFIXED IND 330UH 4A 80 MOHM SMD |
1,156 |
|
Datasheet |
6000B | Nonstandard | Tray | Active | Wirewound | - | 330 µH | ±15% | 4 A | - | Unshielded | 80mOhm Max | - | 2.66MHz | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 1.063" L x 0.768" W (27.00mm x 19.50mm) | 0.787" (20.00mm) |
|
|
60B104CFIXED IND 100UH 7.5A 25 MOHM SMD |
519 |
|
Datasheet |
6000B | Nonstandard | Tray | Active | Wirewound | - | 100 µH | ±15% | 7.5 A | - | Unshielded | 25mOhm Max | - | 4.98MHz | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 1.063" L x 0.768" W (27.00mm x 19.50mm) | 0.787" (20.00mm) |
|
|
60B684CFIXED IND 680UH 3A 135 MOHM SMD |
379 |
|
Datasheet |
6000B | Nonstandard | Tray | Active | Wirewound | - | 680 µH | ±15% | 3 A | - | Unshielded | 135mOhm Max | - | 1.59MHz | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 1.063" L x 0.768" W (27.00mm x 19.50mm) | 0.787" (20.00mm) |
|

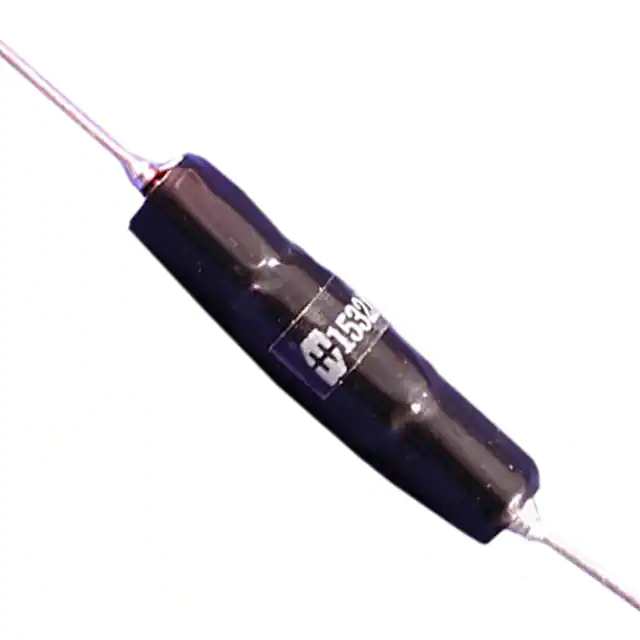

1532AFIXED IND 10UH 1.5A 110 MOHM TH |
7,174 |
|
Datasheet |
1532 | Axial | Bulk | Active | Wirewound | - | 10 µH | ±10% | 1.5 A | - | Unshielded | 110mOhm Max | 69 @ 2.5MHz | 40MHz | - | - | 2.5 MHz | - | Through Hole | - | 0.290" Dia x 0.875" L (7.37mm x 22.22mm) | - |
|
744316470FIXED IND 4.7UH 4.6A 24.5MOHM SM |
6,054 |
|
Datasheet |
WE-HCI | 2-SMD | Tape & Reel (TR) | Active | Wirewound | - | 4.7 µH | ±20% | 4.6 A | 4.7A | Shielded | 24.5mOhm Max | - | 57MHz | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | 5040 | 0.217" L x 0.209" W (5.50mm x 5.30mm) | 0.169" (4.30mm) |
|
|
744316220FIXED IND 2.2UH 7.5A 11.3MOHM SM |
4,895 |
|
Datasheet |
WE-HCI | 2-SMD | Tape & Reel (TR) | Active | Wirewound | - | 2.2 µH | ±20% | 7.5 A | 7.5A | Shielded | 11.3mOhm | - | 108MHz | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | 5040 | 0.217" L x 0.209" W (5.50mm x 5.30mm) | 0.169" (4.30mm) |
|
74437336100FIXED IND 10UH 2.4A 0.128OHM SMD |
1,786 |
|
Datasheet |
WE-LHMI | 2-SMD | Tape & Reel (TR) | Active | Molded | Iron Powder | 10 µH | ±20% | 2.4 A | 5.35A | Shielded | 128mOhm Max | - | 16MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 5030 | 0.205" L x 0.205" W (5.20mm x 5.20mm) | 0.118" (3.00mm) |
|
|
744316033FIXED IND 330NH 18.5A 1.75 MOHM |
1,582 |
|
Datasheet |
WE-HCI | 2-SMD | Tape & Reel (TR) | Active | Wirewound | - | 330 nH | ±20% | 18.5 A | 20A | Shielded | 1.75mOhm | - | 402MHz | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | 5040 | 0.217" L x 0.209" W (5.50mm x 5.30mm) | 0.169" (4.30mm) |
|
|
744316047FIXED IND 470NH 15A 2.75MOHM SMD |
1,494 |
|
Datasheet |
WE-HCI | 2-SMD | Tape & Reel (TR) | Active | Wirewound | - | 470 nH | ±20% | 15 A | 16A | Shielded | 2.75mOhm | - | 280MHz | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | 5040 | 0.217" L x 0.209" W (5.50mm x 5.30mm) | 0.169" (4.30mm) |
|
|
744316100FIXED IND 1UH 11.5A 4.75MOHM SMD |
920 |
|
Datasheet |
WE-HCI | 2-SMD | Tape & Reel (TR) | Active | Wirewound | - | 1 µH | ±20% | 11.5 A | 11.5A | Shielded | 4.75mOhm | - | 158MHz | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | 5040 | 0.217" L x 0.209" W (5.50mm x 5.30mm) | 0.169" (4.30mm) |
