Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Part Status | Type | Material - Core | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Supplier Device Package | Shielding | DC Resistance (DCR) | Inductance | Q @ Freq | Frequency - Self Resonant | Mounting Style | Ratings | Size / Dimension | Features | Operating Temperature | Inductance Frequency - Test | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SWPA6028S100MTFIXED IND 10UH 1.95A 94MOHM SMD |
1,262 |
|
Datasheet |
SWPA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 1.95 A | 2.5A | - | Shielded | 94mOhm Max | 10 µH | - | 23MHz | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.110" (2.80mm) |
|
SRR4818A-6R8YFIXED IND 6.8UH 2.2A 100MOHM SMD |
1,146 |
|
Datasheet |
SRR4818A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±30% | 2.2 A | 1.25A | - | Shielded | 100mOhm Max | 6.8 µH | - | 45MHz | Surface Mount | AEC-Q200 | 0.189" L x 0.189" W (4.80mm x 4.80mm) | - | -40°C ~ 150°C | 100 kHz | 0.079" (2.00mm) |
|
744911088FIXED IND 8.8NH 1.6A 12 MOHM SMD |
1,143 |
|
Datasheet |
WE-CAIR | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Air | ±5% | 1.6 A | - | 1340 | Unshielded | 12mOhm Max | 8.8 nH | 100 @ 800MHz | 6GHz | Surface Mount | AEC-Q200 | 0.159" L x 0.056" W (4.04mm x 1.42mm) | - | -40°C ~ 125°C | 800 MHz | 0.060" (1.52mm) |
|
|
SRR4818A-2R2YFIXED IND 2.2UH 3.5A 45 MOHM SMD |
1,131 |
|
Datasheet |
SRR4818A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±30% | 3.5 A | 2.43A | - | Shielded | 45mOhm Max | 2.2 µH | - | 90MHz | Surface Mount | AEC-Q200 | 0.189" L x 0.189" W (4.80mm x 4.80mm) | - | -40°C ~ 150°C | 100 kHz | 0.079" (2.00mm) |
|
SRR3818A-101MFIXED IND 100UH 340MA 2.6OHM SMD |
1,054 |
|
Datasheet |
SRR3818A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 340 mA | 200mA | - | Shielded | 2.6Ohm Max | 100 µH | - | 11MHz | Surface Mount | AEC-Q200 | 0.150" L x 0.150" W (3.80mm x 3.80mm) | - | -40°C ~ 150°C | 100 kHz | 0.079" (2.00mm) |
|
|
SRR4818A-470MFIXED IND 47UH 750MA 630MOHM SMD |
1,033 |
|
Datasheet |
SRR4818A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 750 mA | 470mA | - | Shielded | 630mOhm Max | 47 µH | - | 16MHz | Surface Mount | AEC-Q200 | 0.189" L x 0.189" W (4.80mm x 4.80mm) | - | -40°C ~ 150°C | 100 kHz | 0.079" (2.00mm) |
|
ECS-MPI2520R1-1R0-RFIXED IND 1UH 3.7A 42 MOHM SMD |
22,918 |
|
Datasheet |
ECS-MPI2520 | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Molded | - | ±20% | 3.7 A | 4A | 1008 (2520 Metric) | Shielded | 42mOhm Max | 1 µH | - | - | Surface Mount | - | 0.098" L x 0.079" W (2.50mm x 2.00mm) | - | -40°C ~ 105°C | 1 MHz | 0.047" (1.20mm) |
|
B82432T1682K000FIXED IND 6.8UH 700MA 300MOHM SM |
18,959 |
|
Datasheet |
SIMID | 2-SMD, J-Lead | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±10% | 700 mA | - | 1812 (4532 Metric) | Unshielded | 300mOhm Max | 6.8 µH | 10 @ 7.96MHz | 36MHz | Surface Mount | AEC-Q200 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | - | -55°C ~ 150°C | 7.96 MHz | 0.134" (3.40mm) |
|
CLF5030NIT-470M-DFIXED IND 47UH 680MA 522MOHM SMD |
10,552 |
|
Datasheet |
CLF-NI-D | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 680 mA | 750mA | - | Shielded | 522mOhm Max | 47 µH | - | - | Surface Mount | AEC-Q200 | 0.209" L x 0.197" W (5.30mm x 5.00mm) | - | -55°C ~ 150°C | 100 kHz | 0.118" (3.00mm) |
|
0630CDMCCDS-R47MCFIXED IND 470NH 20A 4.1MOHM SMD |
9,569 |
|
Datasheet |
0630CDMC/DS | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | ±20% | 20 A | 24.2A | SMD | Shielded | 4.1mOhm Max | 470 nH | - | - | Surface Mount | - | 0.276" L x 0.260" W (7.00mm x 6.60mm) | - | -55°C ~ 125°C | 100 kHz | 0.118" (3.00mm) |
|
RL622-180K-RCFIXED IND 18UH 2.2A 61 MOHM TH |
7,477 |
|
Datasheet |
RL622 | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | ±10% | 2.2 A | - | - | Unshielded | 61mOhm Max | 18 µH | 40 @ 2.52MHz | 11MHz | Through Hole | - | 0.335" Dia (8.50mm) | - | -55°C ~ 105°C | 2.52 MHz | 0.433" (11.00mm) |
|
NS10155T100MNAFIXED IND 10UH 4.4A 24 MOHM SMD |
7,332 |
|
Datasheet |
NS | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 4.4 A | 4.49A | - | Shielded | 24mOhm Max | 10 µH | - | 20.2MHz | Surface Mount | - | 0.398" L x 0.398" W (10.10mm x 10.10mm) | - | -40°C ~ 125°C | 100 kHz | 0.230" (5.85mm) |
|

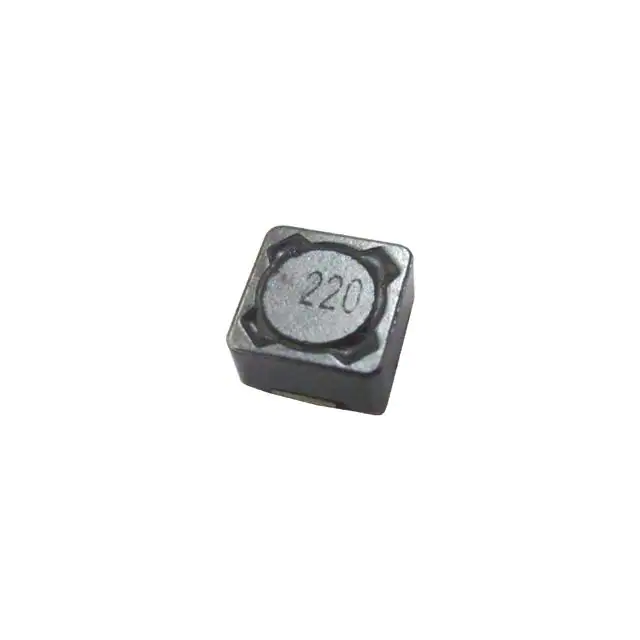

BPSC00101140220M00FIXED IND 22UH 80 MOHM SMD |
7,186 |
|
Datasheet |
BPSC | Nonstandard | Tape & Reel (TR) | Active | - | - | ±20% | - | 2.6A | - | Shielded | 80mOhm Max | 22 µH | - | - | Surface Mount | - | 0.413" L x 0.406" W (10.50mm x 10.30mm) | - | -40°C ~ 105°C | 100 kHz | 0.157" (4.00mm) |
|
SBC1-561-291FIXED IND 560UH 290MA 3.4 OHM TH |
5,025 |
|
Datasheet |
SBC | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | ±10% | 290 mA | 200mA | - | Unshielded | 3.4Ohm Max | 560 µH | - | - | Through Hole | - | 0.217" Dia (5.50mm) | - | -20°C ~ 105°C | 10 kHz | 0.413" (10.50mm) |
|
|
NS10155T220MNAFIXED IND 22UH 3.12A 45.6MOHM SM |
4,314 |
|
Datasheet |
NS | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 3.12 A | 3.37A | - | Shielded | 45.6mOhm Max | 22 µH | - | 11.3MHz | Surface Mount | - | 0.398" L x 0.398" W (10.10mm x 10.10mm) | - | -40°C ~ 125°C | 100 kHz | 0.230" (5.85mm) |
|
|
NS10155T6R8NNAFIXED IND 6.8UH 4.98A 19.2 MOHM |
2,617 |
|
Datasheet |
NS | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±30% | 4.98 A | 6A | - | Shielded | 19.2mOhm Max | 6.8 µH | - | 24.2MHz | Surface Mount | - | 0.398" L x 0.398" W (10.10mm x 10.10mm) | - | -40°C ~ 125°C | 100 kHz | 0.230" (5.85mm) |
|
CDRH6D38NP-101NCFIXED IND 100UH 650MA 358MOHM SM |
2,010 |
|
Datasheet |
CDRH6D38 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | ±30% | 650 mA | - | - | Shielded | 358mOhm Max | 100 µH | - | - | Surface Mount | - | 0.264" L x 0.264" W (6.70mm x 6.70mm) | - | -40°C ~ 100°C | 100 kHz | 0.157" (4.00mm) |
|
|
B82432T1822K000FIXED IND 8.2UH 670MA 330MOHM SM |
1,489 |
|
Datasheet |
SIMID | 2-SMD, J-Lead | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±10% | 670 mA | - | 1812 (4532 Metric) | Unshielded | 330mOhm Max | 8.2 µH | 10 @ 7.96MHz | 30MHz | Surface Mount | AEC-Q200 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | - | -55°C ~ 150°C | 7.96 MHz | 0.134" (3.40mm) |
|
CDRH4D28NP-470NCFIXED IND 47UH 480MA 587MOHM SMD |
110,269 |
|
Datasheet |
CDRH4D28 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | ±30% | 480 mA | - | - | Shielded | 587mOhm Max | 47 µH | - | - | Surface Mount | - | 0.185" L x 0.185" W (4.70mm x 4.70mm) | - | -40°C ~ 100°C | 100 kHz | 0.118" (3.00mm) |
|
0630CDMCCDS-1R5MCFIXED IND 1.5UH 10.2A 12.1 MOHM |
38,189 |
|
Datasheet |
0630CDMC/DS | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | ±20% | 10.2 A | 15.2A | SMD | Shielded | 12.1mOhm Max | 1.5 µH | - | - | Surface Mount | - | 0.276" L x 0.260" W (7.00mm x 6.60mm) | - | -55°C ~ 125°C | 100 kHz | 0.118" (3.00mm) |
