Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
S1812R-184KFIXED IND 180UH 153MA 8.5OHM SMD |
784 |
|
Datasheet |
S1812R | 1812 (4532 Metric) | Tape & Reel (TR) | Active | - | Ferrite | 180 µH | ±10% | 153 mA | - | Shielded | 8.5Ohm Max | 40 @ 790kHz | 4.5MHz | - | -55°C ~ 125°C | 790 kHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.134" (3.40mm) |
|
|
S1812R-223KFIXED IND 22UH 277MA 2.6 OHM SMD |
496 |
|
Datasheet |
S1812R | 1812 (4532 Metric) | Tape & Reel (TR) | Active | - | Ferrite | 22 µH | ±10% | 277 mA | - | Shielded | 2.6Ohm Max | 50 @ 2.5MHz | 14MHz | - | -55°C ~ 125°C | 2.5 MHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.134" (3.40mm) |
|
|
S1812R-333KFIXED IND 33UH 258MA 3 OHM SMD |
346 |
|
Datasheet |
S1812R | 1812 (4532 Metric) | Tape & Reel (TR) | Active | - | Ferrite | 33 µH | ±10% | 258 mA | - | Shielded | 3Ohm Max | 50 @ 2.5MHz | 12MHz | - | -55°C ~ 125°C | 2.5 MHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.134" (3.40mm) |
|
HC9-100-RFIXED IND 10UH 8.5A 14 MOHM SMD |
825 |
|
Datasheet |
HC9 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 10 µH | ±15% | 8.5 A | 12.5A | Unshielded | 14mOhm Max | - | - | - | -40°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.555" L x 0.516" W (14.10mm x 13.10mm) | 0.295" (7.50mm) |
|
FP3-150-RFIXED IND 15UH 2.22A 127MOHM SMD |
2,880 |
|
Datasheet |
FLAT-PAC 3 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 15 µH | ±15% | 2.22 A | 2.5A | Shielded | 127mOhm Max | - | - | - | -40°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.285" L x 0.264" W (7.25mm x 6.70mm) | 0.118" (3.00mm) |
|
74439369047FIXED IND 4.7UH 13.5A 5.4MOHM SM |
1,080 |
|
Datasheet |
WE-XHMI | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | 4.7 µH | ±20% | 13.5 A | 27A | Shielded | 5.4mOhm | - | 18MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.457" L x 0.413" W (11.60mm x 10.50mm) | 0.358" (9.10mm) |
|
74439369056FIXED IND 5.6UH 11.5A 6.4MOHM SM |
684 |
|
Datasheet |
WE-XHMI | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | 5.6 µH | ±20% | 11.5 A | 23A | Shielded | 6.4mOhm | - | 14MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.457" L x 0.413" W (11.60mm x 10.50mm) | 0.358" (9.10mm) |
|

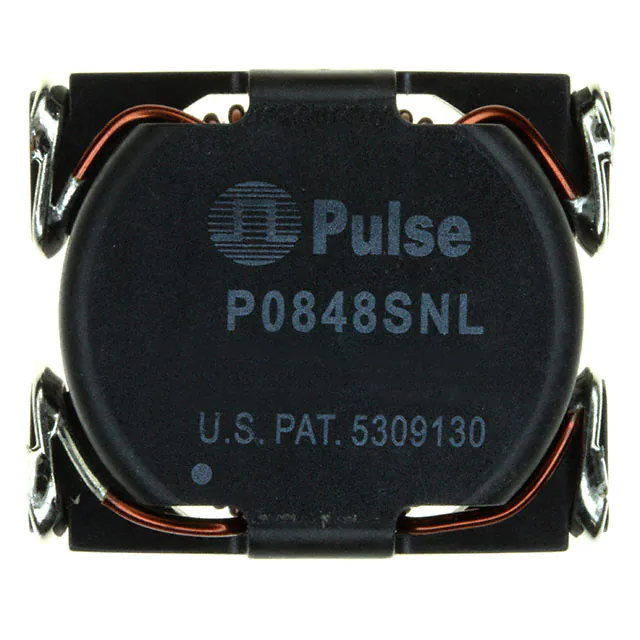

P0848SNLFIXED IND 50UH 5A 25 MOHM SMD |
1,013 |
|
Datasheet |
Bigfoot | Nonstandard | Tube | Active | Toroidal | - | 50 µH | ±20% | 5 A | - | Shielded | 25mOhm | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 1.220" L x 1.000" W (30.99mm x 25.40mm) | 0.500" (12.70mm) |
|
PE-53117NLFIXED IND 330UH 3A 150 MOHM TH |
541 |
|
Datasheet |
- | Radial, Vertical (Open) | Tray | Active | Toroidal | - | 330 µH | ±20% | 3 A | - | Unshielded | 150mOhm Max | - | - | - | -40°C ~ 130°C | - | - | Through Hole | - | 1.300" L x 0.700" W (33.02mm x 17.78mm) | 1.400" (35.56mm) |
|

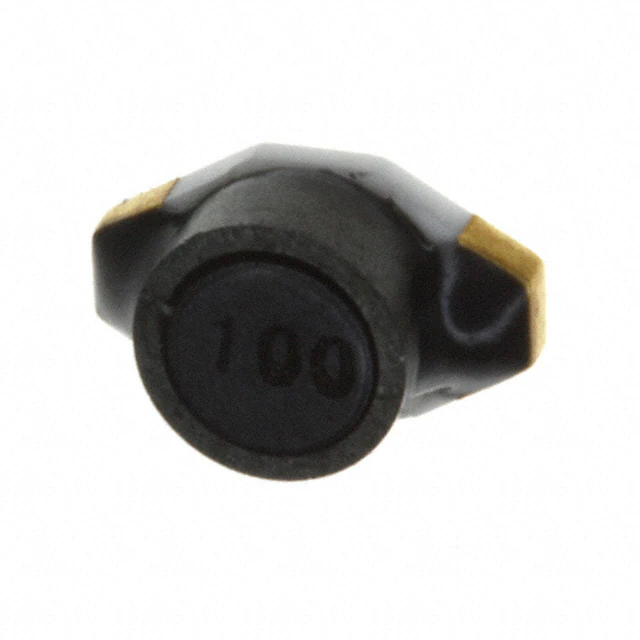

SDS680R-106MFIXED IND 10MH 20MA 32.8OHM SMD |
18,573 |
|
Datasheet |
SDS680R | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 10 mH | ±20% | 20 mA | - | Shielded | 32.8Ohm Max | - | 800kHz | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.260" L x 0.175" W (6.60mm x 4.45mm) | 0.115" (2.92mm) |
|
|
SDS680R-473MFIXED IND 47UH 500MA 0.23OHM SMD |
7,339 |
|
Datasheet |
SDS680R | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 47 µH | ±20% | 500 mA | - | Shielded | 230mOhm Max | - | 20MHz | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.260" L x 0.175" W (6.60mm x 4.45mm) | 0.115" (2.92mm) |
|
|
SDS680R-225MFIXED IND 2.2MH 100MA 8.5OHM SMD |
5,036 |
|
Datasheet |
SDS680R | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 2.2 mH | ±20% | 100 mA | - | Shielded | 8.5Ohm Max | - | 2MHz | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.260" L x 0.175" W (6.60mm x 4.45mm) | 0.115" (2.92mm) |
|
|
SDS680R-223MFIXED IND 22UH 700MA 0.11OHM SMD |
3,369 |
|
Datasheet |
SDS680R | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 22 µH | ±20% | 700 mA | - | Shielded | 110mOhm Max | - | 25MHz | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.260" L x 0.175" W (6.60mm x 4.45mm) | 0.115" (2.92mm) |
|
ATCA-06-301M-HFIXED IND 300UH 5A 64 MOHM TH |
2,009 |
|
Datasheet |
ATCA | Radial, Horizontal (Open) | Tray | Active | Toroidal | Iron Powder | 300 µH | ±20% | 5 A | - | Unshielded | 64mOhm Max | - | - | - | -40°C ~ 105°C | 1 kHz | - | Through Hole | - | 1.260" Dia (32.00mm) | 0.630" (16.00mm) |
|
HC2LP-6R0-RFIXED IND 6UH 17A 4.6 MOHM SMD |
11,662 |
|
Datasheet |
HC2LP | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 6 µH | ±20% | 17 A | 16.5A | Unshielded | 4.6mOhm Max | - | - | - | -40°C ~ 85°C | 300 kHz | - | Surface Mount | - | 0.756" L x 0.756" W (19.20mm x 19.20mm) | 0.440" (11.18mm) |
|
B82559A9153A020FIXED IND 15UH 4.95 MOHM SMD |
2,705 |
|
Datasheet |
ERU20 - Flat Wire Inductor | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 15 µH | ±10% | - | 15.3A | Shielded | 4.95mOhm Max | - | - | - | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.846" L x 0.827" W (21.50mm x 21.00mm) | 0.492" (12.50mm) |
|
7443556190FIXED IND 1.9UH 32.5A 1.2MOHM SM |
497 |
|
Datasheet |
WE-HCI | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 1.9 µH | ±20% | 32.5 A | 52A | Shielded | 1.2mOhm | - | 51MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 1890 | 0.720" L x 0.717" W (18.30mm x 18.20mm) | 0.362" (9.20mm) |
|
|
7443556260FIXED IND 2.6UH 31.5A 1.58 MOHM |
279 |
|
Datasheet |
WE-HCI | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 2.6 µH | ±20% | 31.5 A | 50A | Shielded | 1.58mOhm | - | 42MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 1890 | 0.720" L x 0.717" W (18.30mm x 18.20mm) | 0.362" (9.20mm) |
|
HCV1206-R42-RFIXED IND 420NH 16A 3.15MOHM SMD |
1,728 |
|
Datasheet |
HCV1206 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 420 nH | ±10% | 16 A | 42A | Unshielded | 3.15mOhm | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.480" L x 0.386" W (12.20mm x 9.80mm) | 0.201" (5.10mm) |
|
|
74435571500FIXED IND 15UH 14A 9 MOHM SMD |
1,780 |
|
Datasheet |
WE-HCI | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | 15 µH | ±20% | 14 A | 14A | Shielded | 9mOhm | - | 14MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 1890 | 0.720" L x 0.717" W (18.30mm x 18.20mm) | 0.362" (9.20mm) |
