Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
74435572200FIXED IND 22UH 11A 14.6 MOHM SMD |
1,712 |
|
Datasheet |
WE-HCI | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | 22 µH | ±20% | 11 A | 11A | Shielded | 14.6mOhm | - | 10.5MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 1890 | 0.720" L x 0.717" W (18.30mm x 18.20mm) | 0.362" (9.20mm) |
|
|
74435574700FIXED IND 47UH 6.8A 33.5MOHM SMD |
1,129 |
|
Datasheet |
WE-HCI | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | 47 µH | ±20% | 6.8 A | 7A | Shielded | 33.5mOhm | - | 7.5MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 1890 | 0.720" L x 0.717" W (18.30mm x 18.20mm) | 0.362" (9.20mm) |
|
|
74435573300FIXED IND 33UH 8.5A 21.7MOHM SMD |
805 |
|
Datasheet |
WE-HCI | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | 33 µH | ±20% | 8.5 A | 9A | Shielded | 21.7mOhm | - | 9.5MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 1890 | 0.720" L x 0.717" W (18.30mm x 18.20mm) | 0.362" (9.20mm) |
|
7443557560FIXED IND 5.6UH 25A 2.82MOHM SMD |
565 |
|
Datasheet |
WE-HCI | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | 5.6 µH | ±20% | 25 A | 27A | Shielded | 2.82mOhm | - | 26MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 1890 | 0.720" L x 0.717" W (18.30mm x 18.20mm) | 0.362" (9.20mm) |
|
|
74435571100FIXED IND 10UH 16.5A 6.9MOHM SMD |
170 |
|
Datasheet |
WE-HCI | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | 10 µH | ±20% | 16.5 A | 18.5A | Shielded | 6.9mOhm | - | 16MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 1890 | 0.720" L x 0.717" W (18.30mm x 18.20mm) | 0.362" (9.20mm) |
|

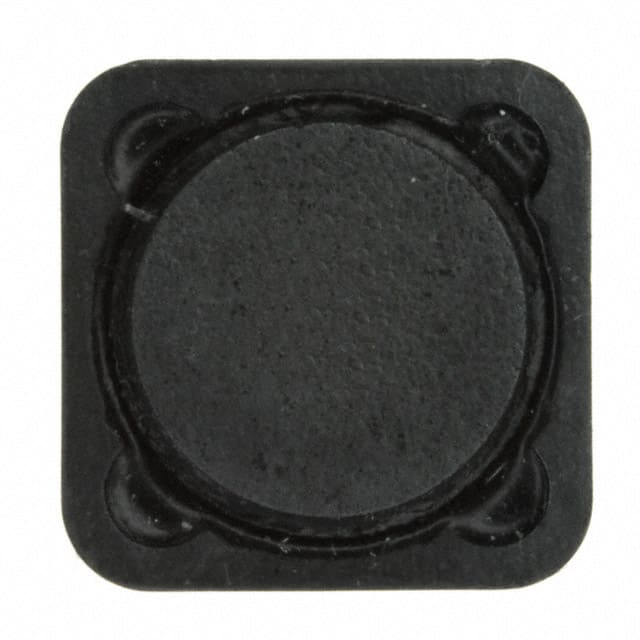

SPD125R-184MFIXED IND 180UH 900MA 350MOHM SM |
1,151 |
|
Datasheet |
SPD125R | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 180 µH | ±20% | 900 mA | 900mA | Shielded | 350mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.236" (6.00mm) |
|
|
SPD125R-224MFIXED IND 220UH 800MA 420MOHM SM |
316 |
|
Datasheet |
SPD125R | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 220 µH | ±20% | 800 mA | 800mA | Shielded | 420mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.236" (6.00mm) |
|
HCV1206-R90-RFIXED IND 900NH 14A 4.6 MOHM SMD |
1,650 |
|
Datasheet |
HCV1206 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 900 nH | ±10% | 14 A | 28A | Unshielded | 4.6mOhm | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.480" L x 0.386" W (12.20mm x 9.80mm) | 0.201" (5.10mm) |
|

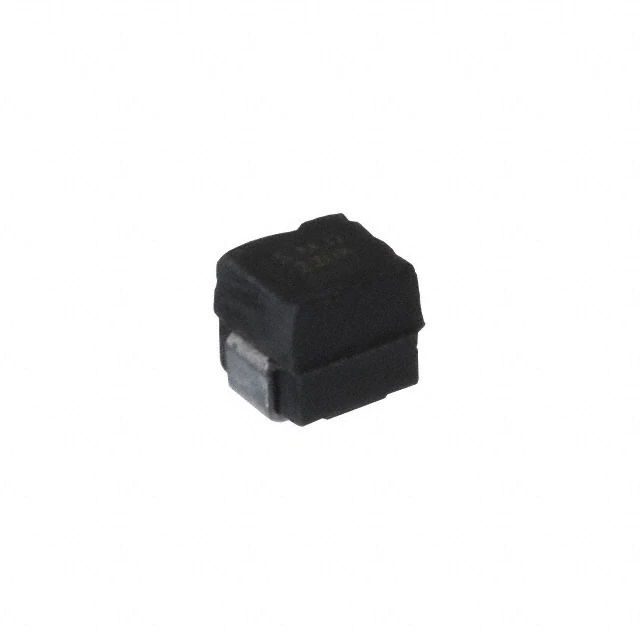

1008R-102JFIXED IND 1UH 685MA 320 MOHM SMD |
1,222 |
|
Datasheet |
1008R | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 1 µH | ±5% | 685 mA | - | Unshielded | 320mOhm Max | 30 @ 7.9MHz | 125MHz | - | -55°C ~ 125°C | 7.9 MHz | - | Surface Mount | - | 0.105" L x 0.095" W (2.66mm x 2.41mm) | 0.095" (2.41mm) |
|

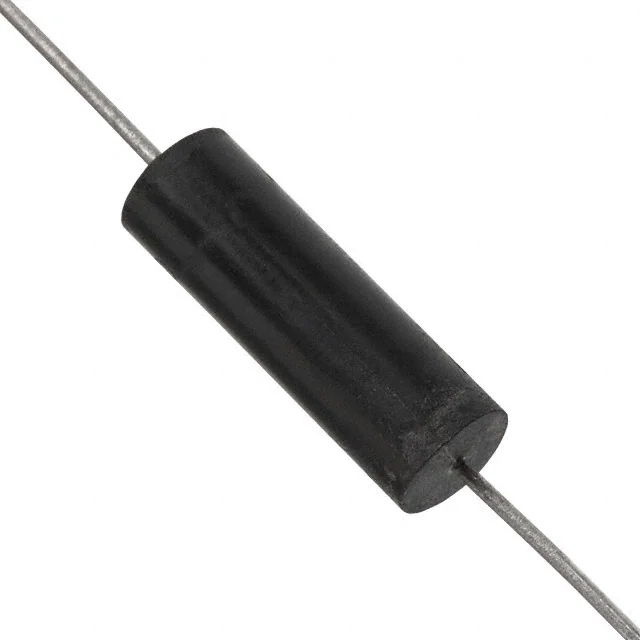

2474R-17LFIXED IND 22UH 2.66A 50 MOHM TH |
1,003 |
|
Datasheet |
2474R | Axial | Bulk | Active | Molded | Ferrite | 22 µH | ±15% | 2.66 A | 1.4A | Unshielded | 50mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.240" Dia x 0.740" L (6.10mm x 18.80mm) | - |
|
SH50S-0.85-680FIXED IND 680UH 850MA 1.25OHM SM |
1,759 |
|
Datasheet |
SH50 | Nonstandard | Tape & Reel (TR) | Active | Toroidal | Iron Powder | 680 µH | ±20% | 850 mA | - | Unshielded | 1.25Ohm Max | - | - | - | -40°C ~ 125°C | 10 kHz | - | Surface Mount | - | 0.701" L x 0.669" W (17.80mm x 17.00mm) | 0.451" (11.45mm) |
|
S1008R-681KFIXED IND 680NH 750MA 200MOHM SM |
2,603 |
|
Datasheet |
S1008R | 1008 (2520 Metric) | Tape & Reel (TR) | Active | - | Ferrite | 680 nH | ±10% | 750 mA | - | Shielded | 200mOhm Max | 40 @ 25MHz | 186MHz | - | -55°C ~ 125°C | 25 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.115" L x 0.105" W (2.92mm x 2.66mm) | 0.095" (2.41mm) |
|
|
S1008R-682KFIXED IND 6.8UH 250MA 1.8OHM SMD |
2,153 |
|
Datasheet |
S1008R | 1008 (2520 Metric) | Tape & Reel (TR) | Active | - | Ferrite | 6.8 µH | ±10% | 250 mA | - | Shielded | 1.8Ohm Max | 30 @ 7.9MHz | 38MHz | - | -55°C ~ 125°C | 7.9 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.115" L x 0.105" W (2.92mm x 2.66mm) | 0.095" (2.41mm) |
|
|
S1008R-222KFIXED IND 2.2UH 375MA 800MOHM SM |
355 |
|
Datasheet |
S1008R | 1008 (2520 Metric) | Tape & Reel (TR) | Active | - | Ferrite | 2.2 µH | ±10% | 375 mA | - | Shielded | 800mOhm Max | 30 @ 7.9MHz | 60MHz | - | -55°C ~ 125°C | 7.9 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.115" L x 0.105" W (2.92mm x 2.66mm) | 0.095" (2.41mm) |
|
FIT106-6FIXED IND 70.05UH 9.7A 24MOHM TH |
1,268 |
|
Datasheet |
FIT | Radial, Vertical (Open) | Bulk | Active | Toroidal | Iron Powder | 70.05 µH | - | 9.7 A | - | Unshielded | 24mOhm Max | - | - | - | -40°C ~ 85°C | 10 kHz | - | Through Hole | - | 1.300" L x 0.725" W (33.02mm x 18.42mm) | 1.400" (35.56mm) |
|
2300HT-220-V-RCFIXED IND 22UH 19A 8 MOHM TH |
974 |
|
Datasheet |
2300HT | Radial, Vertical (Open) | Bulk | Active | Toroidal | Iron Powder | 22 µH | ±15% | 19 A | - | Shielded | 8mOhm Max | - | - | - | -55°C ~ 200°C | 1 kHz | - | Through Hole | - | 1.280" Dia x 0.650" W (32.51mm x 16.51mm) | - |
|
TCK-141FIXED IND 5.6UH 3.5A 90MOHM SMD |
1,767 |
|
Datasheet |
- | Nonstandard | Bag | Active | - | - | 5.6 µH | ±20% | 3.5 A | - | Unshielded | 90mOhm | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.083" (2.10mm) |
|
|
TCK-097FIXED IND 2.2UH 11A 12 MOHM SMD |
737 |
|
Datasheet |
- | Nonstandard | Bag | Active | - | - | 2.2 µH | ±20% | 11 A | - | Unshielded | 12mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.256" L x 0.256" W (6.50mm x 6.50mm) | 0.165" (4.20mm) |
|
TCCH-80+FIXED IND 4UH 200MA 100MOHM SMD |
1,536 |
|
Datasheet |
- | Horizontal, 4 PC Pad | Tape & Reel (TR) | Active | Wirewound | - | 4 µH | - | 200 mA | - | Unshielded | 100mOhm | - | - | - | -40°C ~ 85°C | - | - | Surface Mount | Horizontal, 4 PC Pad | 0.150" L x 0.150" W (3.81mm x 3.81mm) | 0.150" (3.80mm) |
|

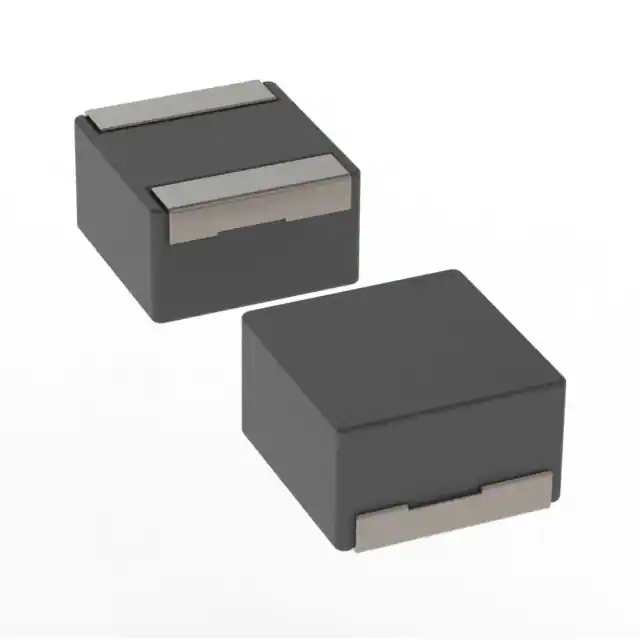

PA4349.683ANLTFIXED IND 68UH 14A 29.5 MOHM SMD |
324 |
|
Datasheet |
PA4349.XXXANLT | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 68 µH | ±20% | 12 A | 9A | Shielded | 29.5mOhm Max | - | 3MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.925" L x 0.866" W (23.50mm x 22.00mm) | 0.512" (13.00mm) |
