Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Part Status | Type | Material - Core | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Supplier Device Package | Shielding | DC Resistance (DCR) | Inductance | Q @ Freq | Frequency - Self Resonant | Mounting Style | Ratings | Size / Dimension | Features | Operating Temperature | Inductance Frequency - Test | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

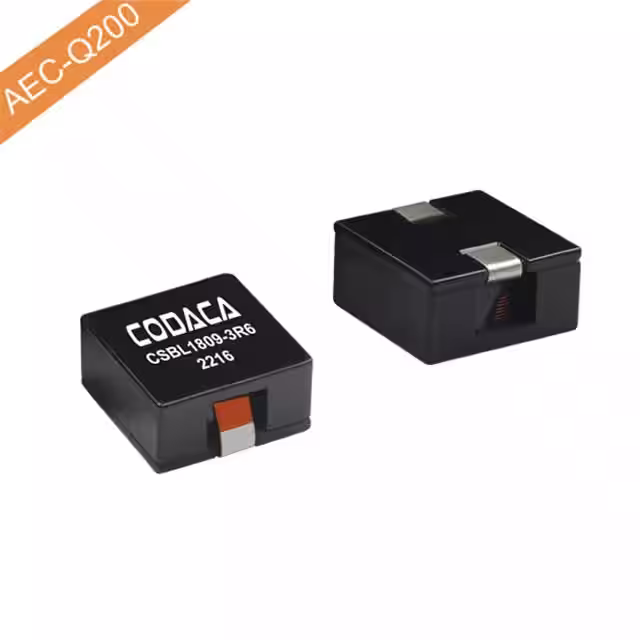

CSBL1809-100MSMD HIGH CURRENT POWER INDUCTOR CODACA |
39 |
|
Datasheet |
CSBL1809 | Nonstandard | Cut Tape (CT) | Active | Wirewound | Metal Composite | ±20% | 16 A | 24A | - | Shielded | 6.9mOhm Max | 10 µH | - | - | Surface Mount | AEC-Q200 | 0.760" L x 0.717" W (19.30mm x 18.20mm) | Flat Wire, High Q Value | -50°C ~ 150°C | 100 kHz | 0.362" (9.20mm) |
|
CSCF2014-3R1MCSMD HIGH CURRENT POWER INDUCTOR CODACA |
100 |
|
Datasheet |
CSCF2014 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | ±20% | 26 A | 45A | 3-SMD | Shielded | 2.3mOhm Max | 3.1 µH | - | - | Surface Mount | AEC-Q200 | 0.886" L x 0.858" W (22.50mm x 21.80mm) | Mn-Zn Ferrite Low Loss | -40°C ~ 125°C | 100 kHz | 0.571" (14.50mm) |
|
|
CSCF2014-1R4MCSMD HIGH CURRENT POWER INDUCTOR CODACA |
100 |
|
Datasheet |
CSCF2014 | 3-SMD | Tape & Reel (TR) | Active | Wirewound | Ferrite | ±20% | 31 A | 60A | 3-SMD | Shielded | 1.2mOhm Max | 1.4 µH | - | - | Surface Mount | - | 0.886" L x 0.858" W (22.50mm x 21.80mm) | Flat Wire, High Current | -40°C ~ 125°C | 100 kHz | 0.570" (14.48mm) |
|
|
CSCF2014-8R6MCSUPER HIGH CURRENT POWER INDUCTO CODACA |
100 |
|
Datasheet |
CSCF2014 | - | Cut Tape (CT) | Active | Wirewound | Ferrite | ±20% | 17 A | 25A | - | Shielded | 7.08mOhm Max | 8.6 µH | - | - | Surface Mount | AEC-Q200 | 0.886" L x 0.858" W (22.50mm x 21.80mm) | Low DCR, Low Loss | -40°C ~ 125°C | - | 0.571" (14.50mm) |
|
|
CSCF2014-5R5MCSUPER HIGH CURRENT POWER INDUCTO CODACA |
100 |
|
Datasheet |
CSCF2014 | 3-SMD | Cut Tape (CT) | Active | Wirewound | Ferrite | ±20% | 22 A | 33A | - | Shielded | 3.96mOhm Max | 5.5 µH | - | - | Surface Mount | AEC-Q200 | 0.886" L x 0.858" W (22.50mm x 21.80mm) | Low DCR, Low Loss | -40°C ~ 125°C | - | 0.571" (14.50mm) |
|
|
CSCF2014-2R2MCSUPER HIGH CURRENT POWER INDUCTO CODACA |
100 |
|
Datasheet |
CSCF2014 | 3-SMD | Cut Tape (CT) | Active | Wirewound | Ferrite | ±20% | 30.5 A | 52A | - | Shielded | 1.58mOhm Max | 2.2 µH | - | - | Surface Mount | AEC-Q200 | 0.886" L x 0.858" W (22.50mm x 21.80mm) | Low DCR, Low Loss | -40°C ~ 125°C | - | 0.571" (14.50mm) |
|
|
CSCF2014-7R0MCSUPER HIGH CURRENT POWER INDUCTO CODACA |
100 |
|
Datasheet |
CSCF2014 | 3-SMD | Cut Tape (CT) | Active | Wirewound | Ferrite | ±20% | 21 A | 30A | - | Shielded | 5.1mOhm Max | 7 µH | - | - | Surface Mount | AEC-Q200 | 0.886" L x 0.858" W (22.50mm x 21.80mm) | Low DCR, Low Loss | -40°C ~ 125°C | - | 0.571" (14.50mm) |
|
|
CSCF2014-330MCSMD HIGH CURRENT POWER INDUCTOR CODACA |
88 |
|
Datasheet |
CSCF2014 | Nonstandard | Cut Tape (CT) | Active | Wirewound | Ferrite | ±20% | 12 A | 11A | 3-SMD | Shielded | 11.1mOhm Max | 33 µH | - | - | Surface Mount | AEC-Q200 | 0.886" L x 0.858" W (22.50mm x 21.80mm) | Mn-Zn Ferrite Low Loss | -40°C ~ 125°C | 100 kHz | 0.571" (14.50mm) |
|
|
CSCF2014-4R2MCSMD HIGH CURRENT POWER INDUCTOR CODACA |
53 |
|
Datasheet |
CSCF2014 | Nonstandard | Cut Tape (CT) | Active | Wirewound | Ferrite | ±20% | 24 A | 38A | 3-SMD | Shielded | 3.04mOhm Max | 4.2 µH | - | - | Surface Mount | AEC-Q200 | 0.886" L x 0.858" W (22.50mm x 21.80mm) | Mn-Zn Ferrite Low Loss | -40°C ~ 125°C | 100 kHz | 0.571" (14.50mm) |
|
|
CSCF2014-470MCSMD HIGH CURRENT POWER INDUCTOR CODACA |
52 |
|
Datasheet |
CSCF2014 | Nonstandard | Cut Tape (CT) | Active | Wirewound | Ferrite | ±20% | 11.5 A | 8.5A | 3-SMD | Shielded | 12mOhm Max | 47 µH | - | - | Surface Mount | AEC-Q200 | 0.886" L x 0.858" W (22.50mm x 21.80mm) | Mn-Zn Ferrite Low Loss | -40°C ~ 125°C | 100 kHz | 0.571" (14.50mm) |
