Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Part Status | Type | Material - Core | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Supplier Device Package | Shielding | DC Resistance (DCR) | Inductance | Q @ Freq | Frequency - Self Resonant | Mounting Style | Ratings | Size / Dimension | Features | Operating Temperature | Inductance Frequency - Test | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

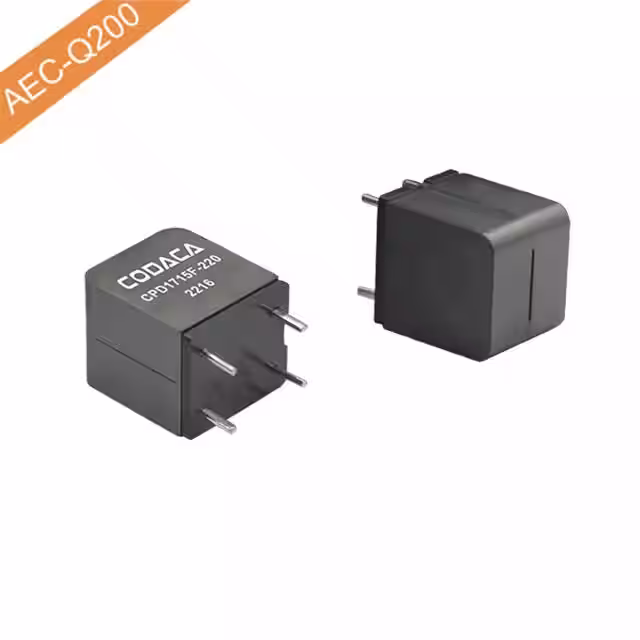

CPD1715F-150MTHT CLASS D IND FOR DIGITAL AMP CODACA |
69 |
|
Datasheet |
CPD1715F | Nonstandard | Tray | Active | Wirewound | Ferrite | ±20% | 17 A | 20A | Vertical, 4 PC Pin | Shielded | 8.8mOhm Max | 15 µH | - | - | Through Hole | AEC-Q200 | 0.689" L x 0.591" W (17.50mm x 15.00mm) | Low Loss, Soft Saturation | -40°C ~ 125°C | 1 kHz | 0.760" (19.30mm) |
|
|
CPD1715F-330MTHT CLASS D IND FOR DIGITAL AMP CODACA |
55 |
|
Datasheet |
CPD1715F | Nonstandard | Tray | Active | Wirewound | Ferrite | ±20% | 17 A | 9.4A | Vertical, 4 PC Pin | Shielded | 8.8mOhm Max | 33 µH | - | - | Through Hole | AEC-Q200 | 0.689" L x 0.591" W (17.50mm x 15.00mm) | Low Loss, Soft Saturation | -40°C ~ 125°C | 1 kHz | 0.760" (19.30mm) |
|
CSCF2918H-330MCSMD HIGH CURRENT POWER INDUCTOR CODACA |
73 |
|
Datasheet |
CSCF2918H | Nonstandard | Tray | Active | Wirewound | Ferrite | ±20% | 30 A | 10.5A | - | Shielded | 2.58mOhm Max | 33 µH | - | - | Surface Mount | AEC-Q200 | 1.102" L x 0.776" W (28.00mm x 19.70mm) | Mn-Zn Ferrite Low Loss | -40°C ~ 125°C | 100 kHz | 0.728" (18.50mm) |
|
|
CPD2315FA-100MFIX IND 10UH 14A 6.06 MOHM TH CODACA |
100 |
|
Datasheet |
CPD2315FA | Radial | Tray | Active | Molded | Ferrite | ±20% | 14 A | 45.5A | Radial | Shielded | 6.06mOhm Max | 10 µH | - | - | Through Hole | - | 0.906" L x 0.571" W (23.00mm x 14.50mm) | - | -40°C ~ 125°C | 100 kHz | 0.906" (23.00mm) |
|
|
CPD2315FA-220MFIX IND 22UH 14A 6.06 MOHM TH CODACA |
40 |
|
Datasheet |
CPD2315FA | Radial | Tray | Active | Molded | Ferrite | ±20% | 14 A | 23.5A | Radial | Shielded | 6.06mOhm Max | 22 µH | - | - | Through Hole | - | 0.906" L x 0.571" W (23.00mm x 14.50mm) | - | -40°C ~ 125°C | 100 kHz | 0.906" (23.00mm) |
|
|
CPD2315FA-150MFIX IND 15UH 14A 6.06 MOHM TH CODACA |
40 |
|
Datasheet |
CPD2315FA | Radial | Tray | Active | Molded | Ferrite | ±20% | 14 A | 30.5A | Radial | Shielded | 6.06mOhm Max | 15 µH | - | - | Through Hole | - | 0.906" L x 0.571" W (23.00mm x 14.50mm) | - | -40°C ~ 125°C | 100 kHz | 0.906" (23.00mm) |
|

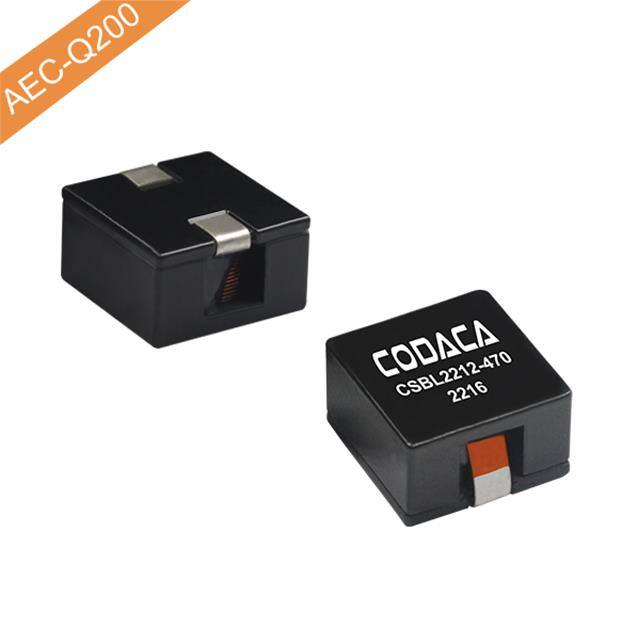

CSBL2212-220MSMD HIGH CURRENT POWER INDUCTOR CODACA |
91 |
|
Datasheet |
CSBL2212 | Nonstandard | Cut Tape (CT) | Active | Wirewound | Metal Composite | ±20% | 15 A | 21A | - | Shielded | 8.25mOhm Max | 22 µH | - | - | Surface Mount | AEC-Q200 | 0.886" L x 0.866" W (22.50mm x 22.00mm) | Flat Wire, High Q Value | -50°C ~ 150°C | 100 kHz | 0.488" (12.40mm) |
|
|
CSBL2212-100MSMD HIGH CURRENT POWER INDUCTOR CODACA |
83 |
|
Datasheet |
CSBL2212 | Nonstandard | Cut Tape (CT) | Active | Wirewound | Metal Composite | ±20% | 21 A | 31A | - | Shielded | 3.88mOhm Max | 10 µH | - | - | Surface Mount | AEC-Q200 | 0.886" L x 0.866" W (22.50mm x 22.00mm) | Flat Wire, High Q Value | -50°C ~ 150°C | 100 kHz | 0.488" (12.40mm) |
|
|
CSBL2212-101MSMD HIGH CURRENT POWER INDUCTOR CODACA |
77 |
|
Datasheet |
CSBL2212 | Nonstandard | Cut Tape (CT) | Active | Wirewound | Metal Composite | ±20% | 6.1 A | 9A | - | Shielded | 40.8mOhm Max | 100 µH | - | - | Surface Mount | AEC-Q200 | 0.886" L x 0.866" W (22.50mm x 22.00mm) | Flat Wire, High Q Value | -50°C ~ 150°C | 100 kHz | 0.488" (12.40mm) |
|
CSBX2212-330MSMD HIGH CURRENT POWER INDUCTOR CODACA |
85 |
|
Datasheet |
CSBX2212 | Nonstandard | Cut Tape (CT) | Active | Wirewound | Metal Composite | ±20% | 11.5 A | 22A | - | Shielded | 13.5mOhm Max | 33 µH | - | - | Surface Mount | AEC-Q200 | 0.886" L x 0.866" W (22.50mm x 22.00mm) | High Saturation | -55°C ~ 150°C | 100 kHz | 0.488" (12.40mm) |
